4" Four Head Trimless Multiple LED Downlight | 10,400Lm Max | CCT Selectable | Goodlite G-99224/324

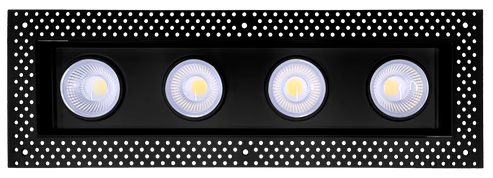

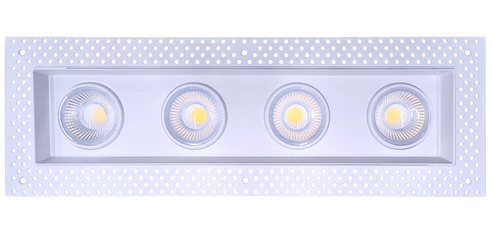

Deliver high-lumen architectural accent illumination and seamless ceiling integration with the Saturn Multiple 4" Four Head Trimless Regress Multiple Gimbal LED Downlight Series. Engineered for upscale commercial, retail, and high-end residential applications, this quad-head fixture features four independently adjustable regressed gimbal modules. Each light head offers 360° horizontal rotation and a 20° vertical tilt angle with a wide 60° beam spread, enabling precise directional aiming across linear planes or accent focal points.

Built for heavy-duty performance, the fixture features selectable dual-wattage operational modes (72W or 112W total), delivering 6,400 lumens at 72W (1,600 lm per head) or up to 10,400 lumens at 112W (2,600 lm per head) with exceptional color rendering (CRI >90). An integrated 5-CCT Field Selectable switch allows custom color temperature tuning (2700K, 3000K, 3500K, 4100K, and 5000K) across all four heads.

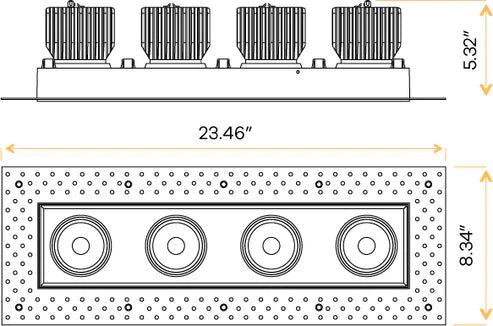

Designed for seamless mud-in drywall integration into 4.56" x 19.70" cutouts, the fixture operates on a universal 120-277V AC driver supporting both Triac and 0-10V dimming (100% to 5%). Available in both White (G-99224) and Black (G-99324) interior gimbal finishes with FT6 plenum-rated wiring. Certified ETL and Title 24 Listed, IC Rated at the 72W operational setting, approved for Wet Locations, and backed by a 3-year warranty.

Key Features:

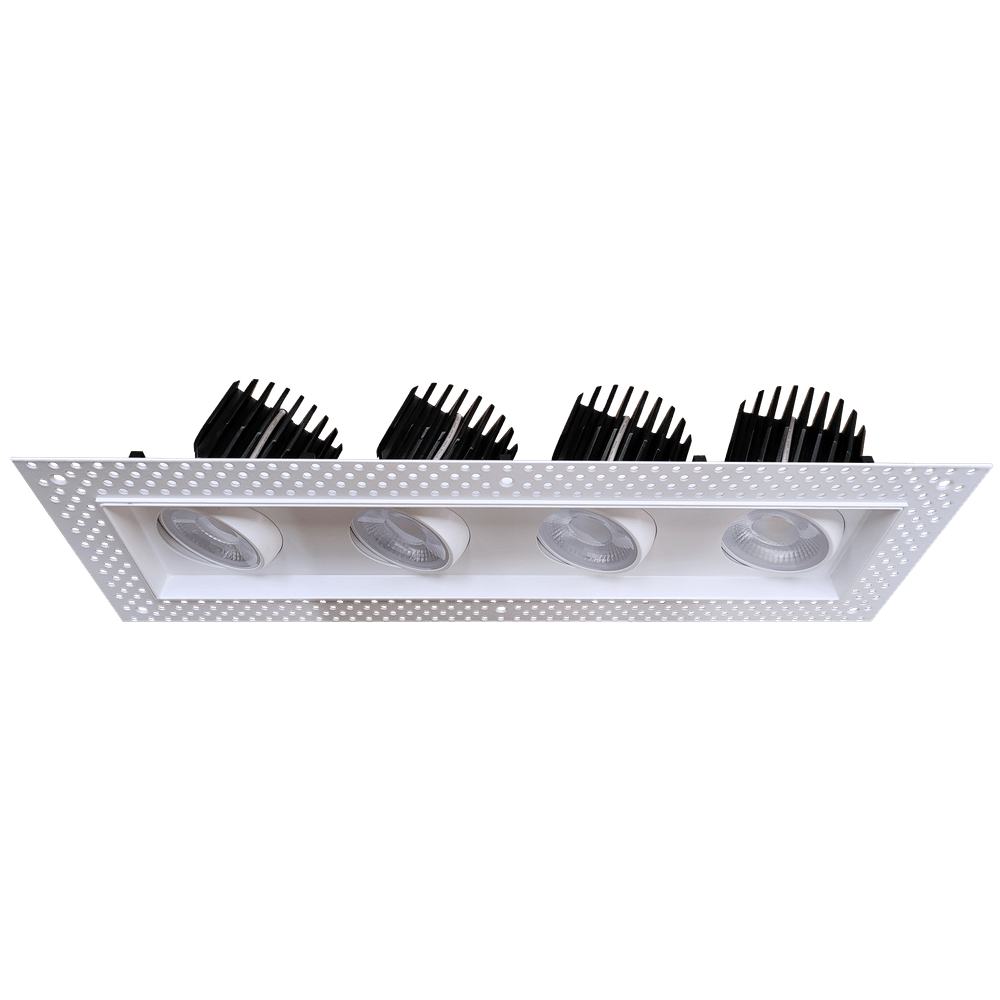

• Quad-Head Independent Directional Control: Four individually adjustable heads with 360° rotation and 20° tilt for targeted linear illumination.

• Trimless Mud-In Architecture: Integrates directly into drywall cutouts for a modern, flush ceiling profile.

• Selectable Dual Wattage & High Output: Switch between 72W (6,400 lumens total) and 112W (10,400 lumens total) outputs with high CRI >90 color accuracy.

• 5-CCT Field Selectable: Customize color temperatures on-site across 2700K, 3000K, 3500K, 4100K, and 5000K settings.

• Commercial Grade Universal Driver: 120-277V input voltage with dual Triac / 0-10V dimming capabilities and FT6 plenum cable rating.

• IC & Wet Location Certified: IC Rated when configured at 72W; approved for damp/wet environments; ETL & Title 24 Listed with a 3-year warranty.

Technical Specification Comparison Table

Packaging & Logistics Specifications

• Master Pack Quantity: 2 Pieces (Both Models)

• Barcodes:

  • White (G-99224): 024431992246

  • Black (G-99324): 024431993243

• Included Accessories: Integrated Mud-in Trimless Frame, Junction Box Driver & FT6 Plenum Connections
