Saturn Multiple 4" Triple Head Trimless Regress Gimbal – White & Black Finishes

The Saturn 4” Triple Head Trimless Regress Multiple Gimbal is a high-output architectural LED lighting solution engineered for seamless ceiling integration and powerful multi-directional illumination. Designed with three independently adjustable 4-inch regressed gimbal heads, this fixture delivers professional-grade brightness, flexible aiming, and clean trimless aesthetics for demanding commercial and luxury residential projects.

Available in White (G-99223) and Black (G-99323) finishes, this model combines performance, versatility, and modern design in one specification-grade fixture.

The Saturn 4” Triple Head Trimless Gimbal is built for architects, designers, and contractors who require high lumen output, precision aiming, and a seamless drywall finish. Featuring a mud-in trimless installation, this fixture integrates directly into the ceiling for a minimalist, high-end appearance.

With selectable wattage and CCT, this versatile luminaire adapts to multiple project requirements — from retail and hospitality to office and high-ceiling residential applications.

✔ Dual Power Output Options

• 54W Mode: 4,800 Lumens (1,600 LM per head)

• 84W Mode: 7,800 Lumens (2,600 LM per head)

This makes it ideal for both moderate and high-ceiling installations requiring strong, focused illumination.

Advanced Lighting Performance

• Selectable 5CCT: 2700K / 3000K / 3500K / 4100K / 5000K

• CRI >90 for superior color accuracy

• 60° Beam Spread for wide, even light distribution

• 30° Tilt per Head

• 360° Rotation per Head

• Clear Diffuser

• Triple Adjustable Gimbal Heads

Each head operates independently, allowing precise control for accent lighting, wall washing, product highlighting, or layered lighting designs.

Electrical & Dimming Flexibility

• Wattage: 54W / 84W

• Voltage: 120–277V (Universal Voltage)

• Output Current: 1350mA / 2000mA

• Dimming: Triac or 0–10V Compatible

• Plenum Rated: FT6

This fixture is suitable for commercial plenum spaces and integrates easily into professional lighting control systems.

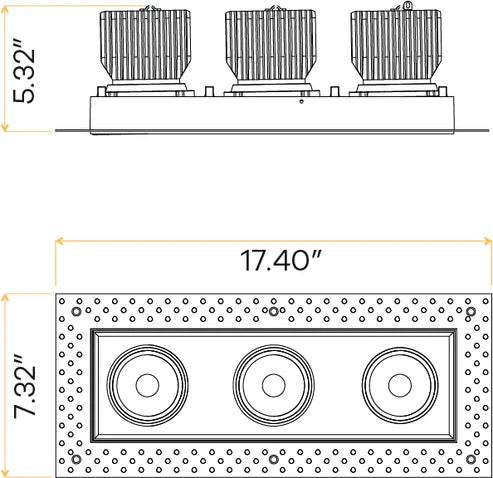

Installation & Dimensions

• Size: 4 Inch

• Cutout: 4.56” x 14.65”

• Outside Dimensions: 7.32” x 17.40”

• Height: 5.32”

• Mounting: Mud-In (Trimless)

• Number of Lights: 3

• Master Pack: 4

The trimless mud-in design ensures a smooth ceiling finish with no visible flange, making it ideal for contemporary architectural spaces.

Compliance & Certifications

• Wet Location Rated

• IC Rated: Only at 54W

• ETL Listed

• Title 24 Compliant

• Warranty: 3 Years

Suitable for bathrooms, covered outdoor ceilings, commercial environments, and insulated ceiling installations (at 54W setting).

Available Finishes & Product Codes

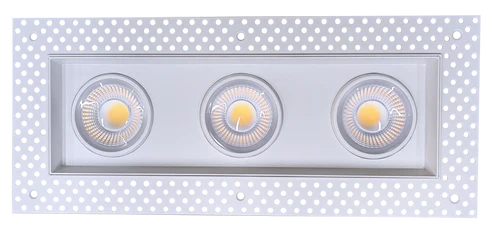

White Finish

• Product Code: G-99223

• Description: SN84W/GR/M3/5CCT/TL/WH

• Barcode: 024431992239

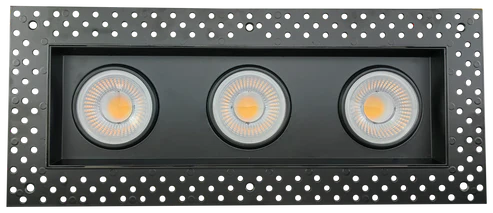

Black Finish

• Product Code: G-99323

• Description: SN84W/GR/M3/5CCT/TL/BK

• Barcode: 024431993236

Ideal Applications

• Retail stores & showrooms

• Hospitality & hotel lobbies

• Corporate offices

• High-end residential interiors

• Galleries & architectural accent lighting

• Wet-rated ceiling applications
