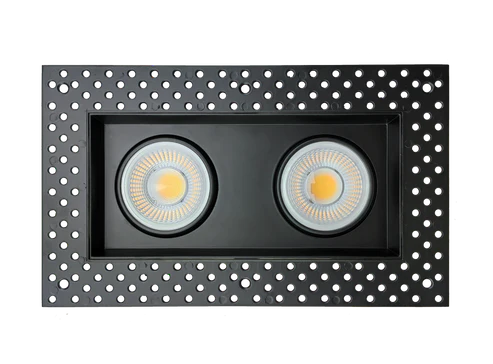

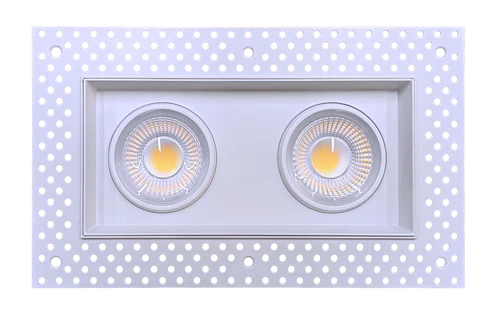

Saturn Multiple 4" Double Head Trimless Regress Gimbal – White & Black Finishes

The Saturn Multiple 4” Double Head Trimless Regress Gimbal LED Downlight is a high-output architectural lighting solution engineered for large-scale residential, commercial, and hospitality applications. Featuring dual adjustable regressed gimbal heads within a seamless trimless mud-in frame, this fixture delivers powerful illumination with precise aiming control and modern ceiling integration.

Available in White (G-99222) and Black (G-99322) finishes, this selectable 36W/56W system provides up to 5,200 lumens, making it ideal for high-ceiling and high-performance lighting designs.

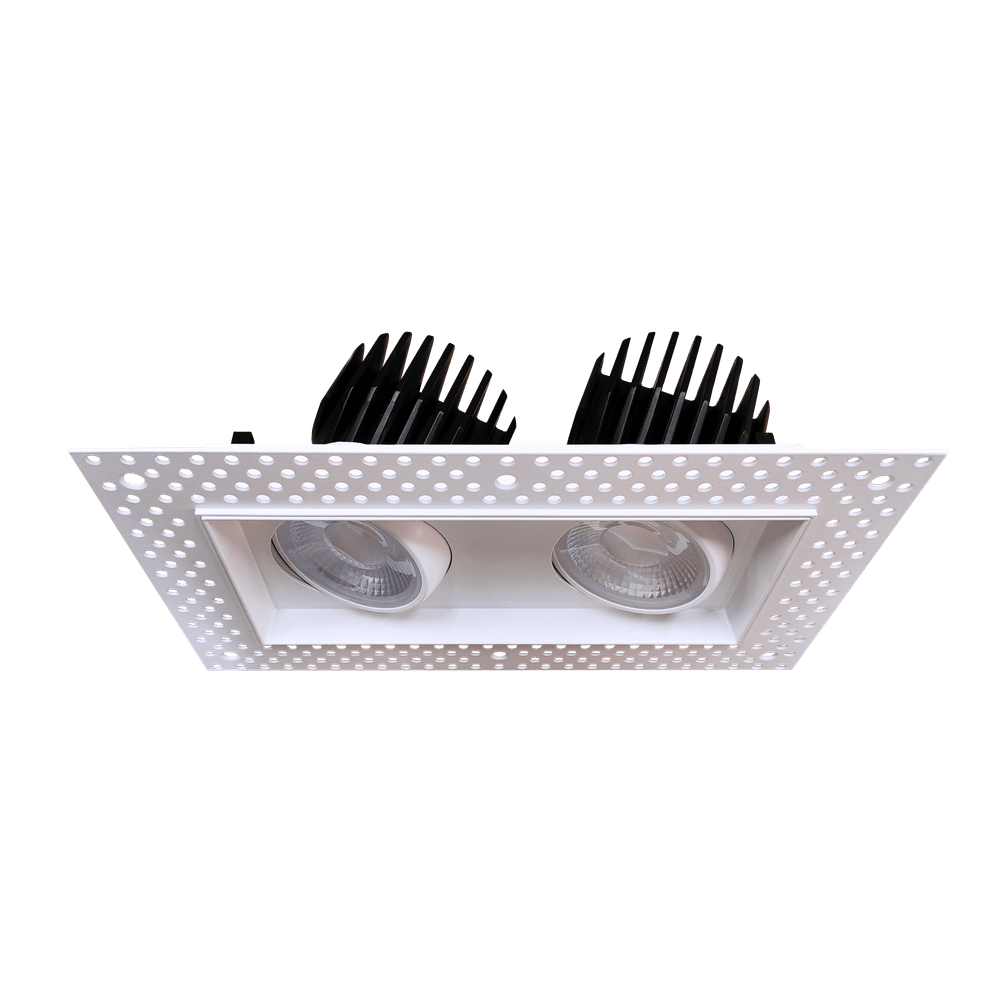

The Saturn 4” Double Head Trimless Regress Gimbal is designed for architects and lighting professionals seeking maximum output with minimal visual interruption. Its mud-in trimless installation allows the fixture to be plastered directly into drywall, creating a clean, seamless ceiling finish.

Each regressed head reduces glare while maintaining strong illumination through a 60° beam spread, delivering wide yet controlled light distribution. With dual independently adjustable gimbals, this fixture allows full directional flexibility for layered lighting applications.

Dual Power & Lumen Performance

This fixture features selectable wattage:

• 36W Mode:

  • 1,600 lumens per head

  • 3,200 total lumens

  • IC Rated

• 56W Mode:

  • 2,600 lumens per head

  • 5,200 total lumens

  • Non-IC Rated

The selectable output makes it suitable for both standard ceiling installations and high-lumen commercial projects.

Advanced Lighting Features

• 5 Selectable CCT: 2700K / 3000K / 3500K / 4100K / 5000K

• CRI >90: Professional color accuracy

• Dual Adjustable Heads: Independent aiming

• 30° Tilt per Head

• 360° Rotation per Head

• Regressed Optics: Reduced glare and improved visual comfort

• 60° Beam Spread: Broad, powerful coverage

Compatible with 120–277V universal voltage, this fixture integrates seamlessly into commercial electrical systems. It supports both Triac and 0-10V dimming, providing smooth and precise light control.

Technical Specifications

General Specifications

• Product Codes: G-99222 (White) / G-99322 (Black)

• Description: SN56W/GR/M2/5CCT/TL

• Shape: Multiple (Double Head)

• Style: Trimless, Regressed Gimbal

• Size: 4 Inch

• Finish Options: White / Black

• Diffuser: Clear

• Number of Lights: 2

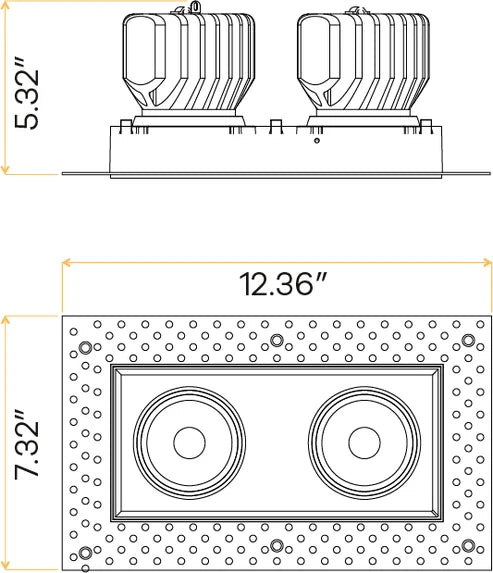

• Cutout: 4.56” x 9.60”

• Outside Dimensions (OD): 7.32” x 12.36”

• Height: 5.32”

• Mounting: Mud-in

• Master Pack: 4

Lighting Performance

• Selectable Wattage: 36W / 56W

• Lumens (36W): 3,200 LM total (1,600 per head)

• Lumens (56W): 5,200 LM total (2,600 per head)

• CRI: >90

• Selectable CCT: 2700K / 3000K / 3500K / 4100K / 5000K

• Beam Spread: 60°

• Tilt Angle: 30° per head

• Rotation: 360° per head

Electrical

• Voltage: 120–277V

• Output Current: 900mA / 1350mA

• Dimming: Triac or 0–10V Compatible

• Plenum Rated: FT6

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Only at 36W

• Certification: ETL Listed, Title 24 Compliant

• Warranty: 3 Years

Ideal Applications

• High-end residential ceilings

• Retail and showroom lighting

• Hospitality and hotel lobbies

• Office and commercial environments

• Art galleries and museums

• Accent and feature lighting

• High-ceiling architectural projects

Key Benefits

✔ Seamless trimless mud-in installation
✔ Dual high-output adjustable gimbal heads
✔ Selectable 36W / 56W power
✔ Up to 5,200 lumens total output
✔ 5 selectable color temperatures
✔ Wet location & plenum rated (FT6)
✔ IC rated at 36W mode
✔ Universal 120–277V input
✔ Dual dimming compatibility (Triac & 0-10V)
✔ ETL & Title 24 compliant
