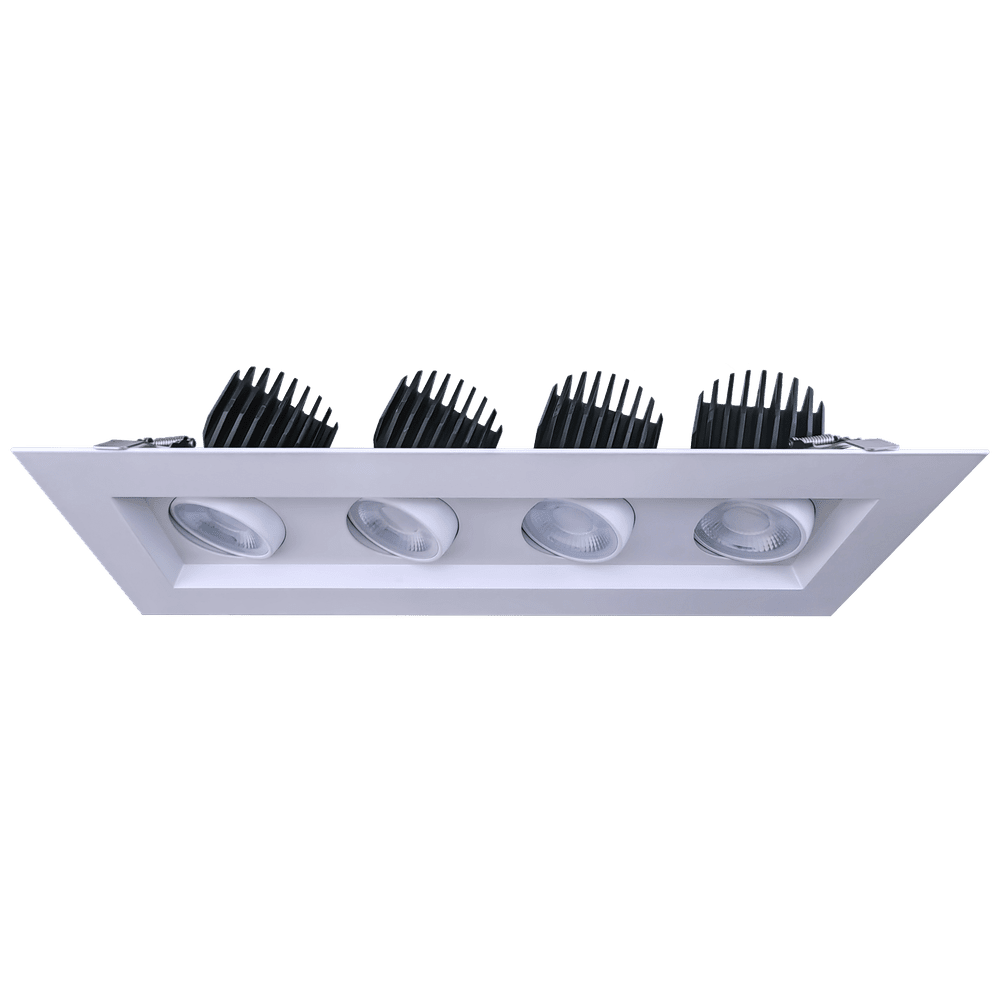

Saturn Multiple 4" Four-Head Regressed Gimbal LED Downlight – 72/112W, 5CCT Selectable (White / Black)

The Saturn Multiple 4-inch Four-Head Regressed Gimbal LED Downlight is a high-performance architectural recessed lighting fixture designed for powerful multi-directional illumination in commercial and modern residential environments. Featuring four recessed adjustable gimbal heads, this fixture provides precise lighting control while reducing glare thanks to its recessed optical design.

Each LED head delivers 1600 to 2600 lumens, producing a total output of 6400 to 10,400 lumens, making it ideal for retail stores, showrooms, galleries, hospitality spaces, offices, and large open interiors that require strong, focused illumination.

The fixture includes 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), allowing installers and designers to adapt the lighting tone to the environment. A high CRI (>90) ensures accurate color rendering, making it perfect for highlighting merchandise, architectural features, and design elements.

The regressed gimbal heads provide 30° tilt adjustment and a 60° beam spread, delivering balanced directional lighting while minimizing glare and visual discomfort.

Designed for professional installations, the fixture operates at dual wattage levels (72W or 112W) and supports Triac and 0–10V dimming, ensuring compatibility with a wide range of commercial lighting control systems.

The clip-in mounting system allows fast installation, while the FT6 plenum rating permits installation in air-handling spaces. The fixture is wet location rated, making it suitable for use in bathrooms, covered outdoor ceilings, and other moisture-prone environments.

The IC rating applies when operated at 72W, allowing safe installation in insulated ceilings.

Certified ETL Listed and Title 24 compliant, and backed by a 3-year warranty, the Saturn Multiple 4" Four-Head Regressed Gimbal LED Downlight provides powerful, efficient, and flexible architectural lighting.

Available Finishes

Technical Specifications

General Specifications

• Product Name: Saturn Multiple 4" Four-Head Regressed Gimbal LED Downlight

• Shape: Multiple

• Style: Trimmed

• Size: 4 Inch

• Finish Options: White / Black

• Diffuser: Clear

• Number of Lights: 4

Dimensions

• Cutout Size: 4.65" × 19.50"

• Outside Dimensions (OD): 7.48" × 22.59"

• Height: 5.32"

Mounting

• Installation Type: Clip-in

Light Performance

• Selectable Wattage: 72W / 112W

• Lumens per Head: 1600 / 2600 lm

• Total Lumens: 6400 / 10400 lm

• CRI: >90

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• Beam Angle: 60° (Default)

Adjustability

• Tilt Angle: 30°

Electrical Specifications

• Input Voltage: 120–277V

• Output Current: 900mA ×2 / 1350mA ×2

• Plenum Rated: FT6

• Dimming: Triac or 0–10V Dimming Compatible

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Only at 72W

• Certification: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 2 Units

Warranty

• Warranty: 3 Years
