Goodlite Lighting 4" Triple Head Regress Multiple Gimbal LED Downlight | 7,800Lm Max | CCT Selectable | Goodlite G-99023/123

$530.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

UL Listed FCC Certified ETL Certified

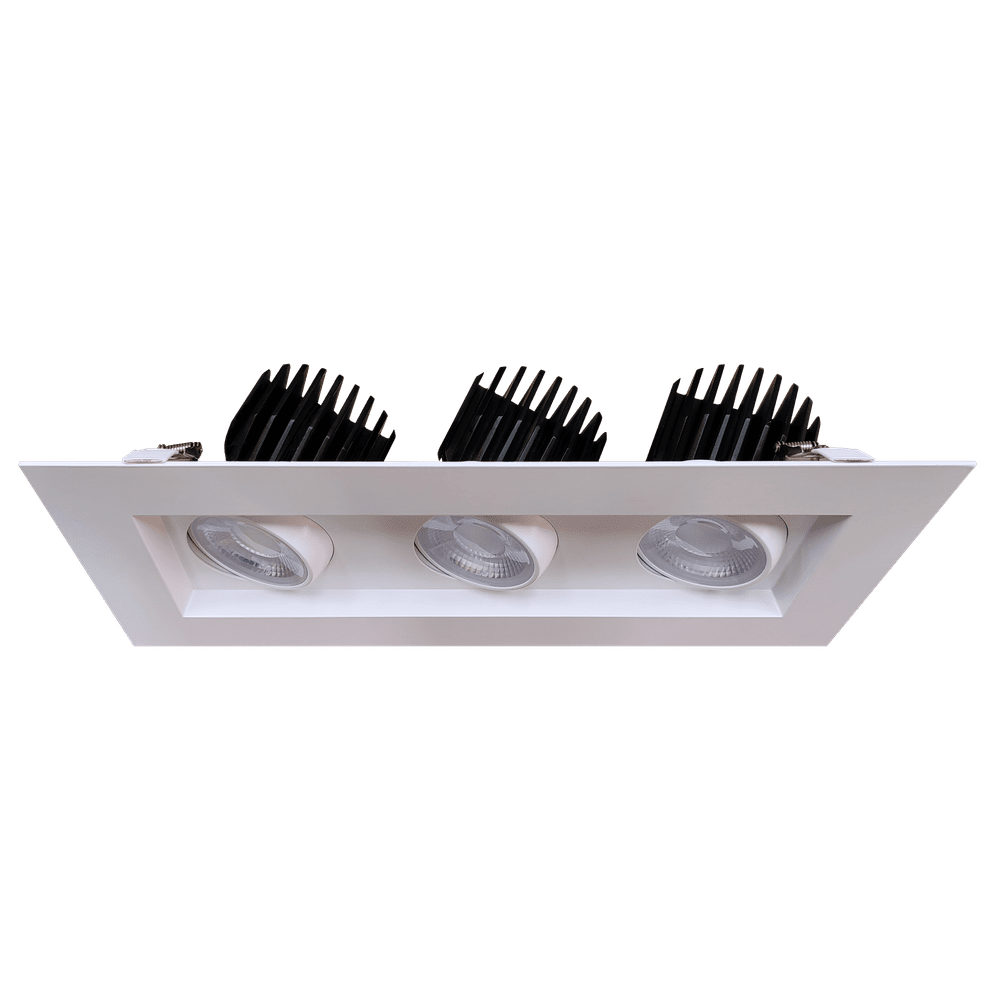

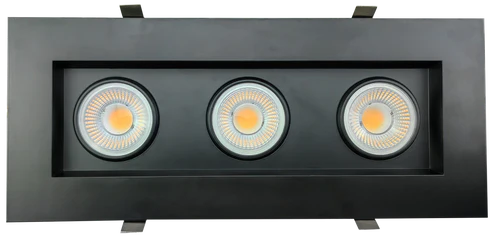

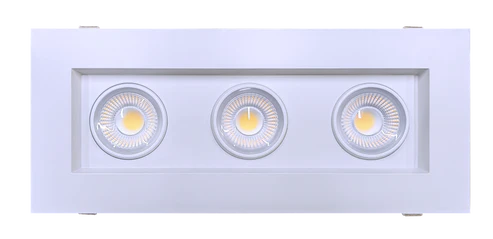

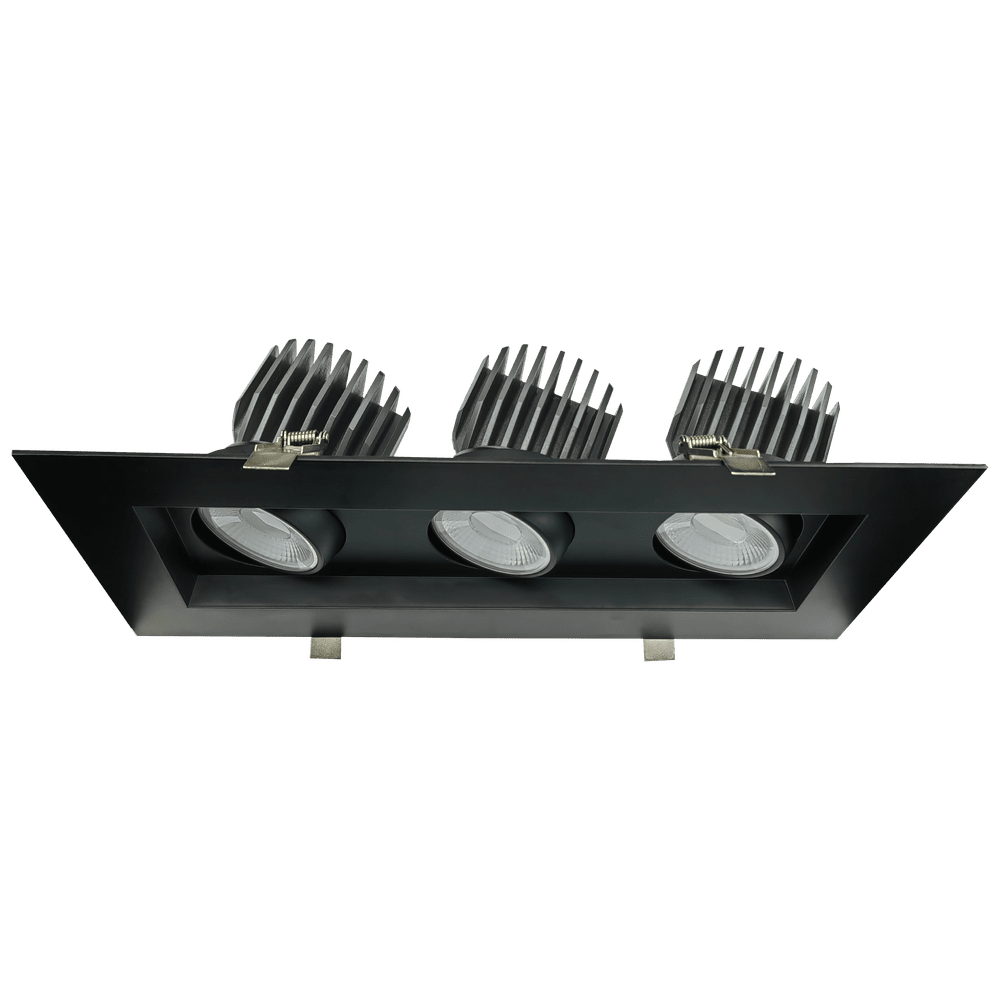

Deliver high-output directional illumination and architectural precision with the Saturn Multiple 4" Triple-Head Regressed Gimbal LED Recessed Light Series. Featuring a trimmed linear frame, these three-light fixtures integrate three independently adjustable 4-inch regressed gimbal modules into a single enclosure. Designed for high-ceiling retail environments, commercial lobbies, galleries, and modern residential spaces, each deep-set head provides a 20° tilt angle and a wide 60° default beam spread while shielding sightlines to control glare.

This heavy-duty commercial series features dual-stage field tuning: an integrated Power Selectable switch allows installers to toggle total system output between 54W (4800 Total Lumens / 1600 LM per head) and 84W (7800 Total Lumens / 2600 LM per head). An integrated 5-CCT Field Selectable switch enables seamless color temperature selection (2700K, 3000K, 3500K, 4100K, and 5000K).

Powered by a commercial-grade driver operating on universal 120-277V AC input with FT6 plenum-rated wiring, both models support dual Triac and 0-10V dimming protocols (100% to 5% range). Available in clean White (G-99023) and bold Black (G-99123) finishes, these linear units fit ceiling cutouts of 4.65" x 14.40" (5.32" height) using heavy-duty clip-in spring tabs. Certified California Title 24 Compliant and ETL Listed, they are approved for Wet Locations and carry an IC Rating specifically when operated at the 54W setting (3-year warranty included).

Key Features:

  • Triple Independent Gimbal Modules: Three 4" regressed light heads with 20° tilt for targeted multi-directional beam orientation.

  • Field-Selectable High-Output Power: Dual-stage power switch allows on-site selection between 54W (4800 LM total) and 84W (7800 LM total).

  • Deep Regressed Anti-Glare Design: Recessed modules shield optics to minimize visual glare while outputting up to 2600 lumens per head.

  • 5-CCT Field Selectable: Customize color temperature on-site between 2700K, 3000K, 3500K, 4100K, and 5000K.

  • Universal Voltage & Commercial Specifications: Operates on 120-277V AC with Triac and 0-10V dimming support (100%-5%) and FT6 plenum cable rating.

  • Wet Location & IC Rated: Safe for direct insulation contact (at 54W) and approved for damp or wet environments; Title 24 Compliant, ETL Listed, and backed by a 3-year warranty.

Technical Specification Comparison Table

Technical Specification White 4" 3-Head Trimmed Regressed Black 4" 3-Head Trimmed Regressed
Product Code G-99023 G-99123
Description Code SN/4/84W/GR/M3/5CCT/WH SN/4/84W/GR/M3/5CCT/BK
Finish White Black
Shape & Style Rectangular Trimmed Multiple Gimbal (3-Head) Rectangular Trimmed Multiple Gimbal (3-Head)
Diffuser Clear Clear
Head Count 3 Light Modules 3 Light Modules
Selectable Wattage 54W / 84W Switchable 54W / 84W Switchable
Total Lumen Output 4800 / 7800 Total Lumens 4800 / 7800 Total Lumens
Per Head Output 1600 / 2600 Lumens per head 1600 / 2600 Lumens per head
Selectable CCT 27, 30, 35, 41, 50K 27, 30, 35, 41, 50K
CRI CRI >90 CRI >90
Beam / Optics 60° Default / 20° Tilt 60° Default / 20° Tilt
Input Voltage 120-277V AC 120-277V AC
Output Current 1350mA (54W) / 2000mA (84W) 1350mA (54W) / 2000mA (84W)
Plenum Rating FT6 Rated FT6 Rated
Dimming Type & Range Triac or 0-10V Dimming (100% - 5%) Triac or 0-10V Dimming (100% - 5%)

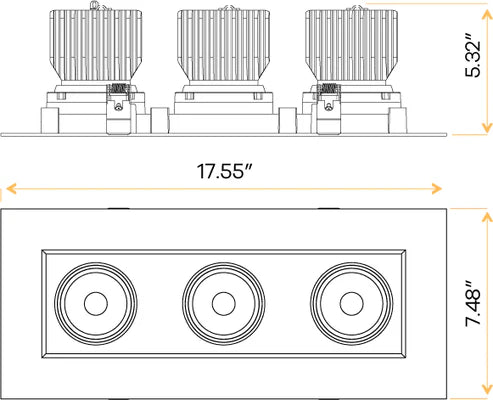

Cutout Dimensions 4.65" x 14.40" 4.65" x 14.40"
Outside Dimensions (OD) 7.48" x 17.55" 7.48" x 17.55"
Fixture Height 5.32" 5.32"
Mounting Type Clip-in Clip-in
Location Rating Wet Location Wet Location
IC Rating IC Rated (Only at 54W setting) IC Rated (Only at 54W setting)
Classifications & Warranty ETL, Title 24 Listed / 3-Year Warranty ETL, Title 24 Listed / 3-Year Warranty

Packaging & Logistics Specifications

  • Master Pack Quantity: 4 Pieces (Both Models)

  • Barcodes:

    • White (G-99023): 024431990235

    • Black (G-99123): 024431991232

  • Included Accessories: Integrated Remote Junction Box / Universal Driver & Heavy-Duty Clip-In Spring Clips
