4" Double Head Regress Multiple Gimbal LED Downlight | 5,200Lm Max | CCT Selectable | Goodlite G-99022/122

Deliver high-output directional illumination and architectural precision with the Saturn Multiple 4" Double-Head Regressed Gimbal LED Recessed Light Series. Featuring a trimmed linear frame, these two-light fixtures integrate two independently adjustable 4-inch regressed gimbal modules into a single enclosure. Designed for high-ceiling retail environments, commercial lobbies, galleries, and modern residential spaces, each deep-set head provides a 20° tilt angle and a wide 60° default beam spread while shielding sightlines to control glare.

This heavy-duty commercial series features dual-stage field tuning: an integrated Power Selectable switch allows installers to toggle total system output between 36W (3200 Total Lumens / 1600 LM per head) and 56W (5200 Total Lumens / 2600 LM per head). An integrated 5-CCT Field Selectable switch enables seamless color temperature selection (2700K, 3000K, 3500K, 4100K, and 5000K).

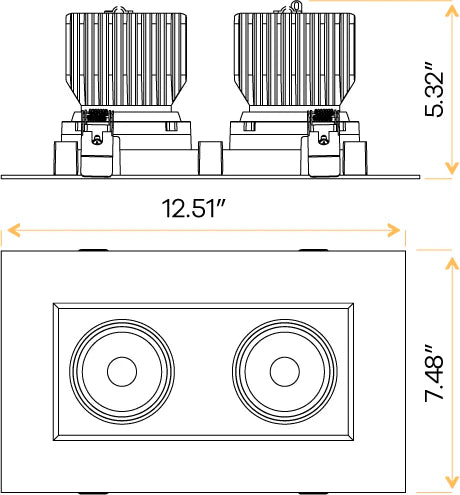

Powered by a commercial-grade driver operating on universal 120-277V AC input with FT6 plenum-rated wiring, both models support dual Triac and 0-10V dimming protocols (100% to 5% range). Available in clean White (G-99022) and bold Black (G-99122) finishes, these linear units fit ceiling cutouts of 4.65" x 9.37" (5.32" height) using heavy-duty clip-in spring tabs. Certified California Title 24 Compliant and ETL Listed, they are approved for Wet Locations and carry an IC Rating specifically when operated at the 36W setting (3-year warranty included).

Key Features:

• Double Independent Gimbal Modules: Two 4" regressed light heads with 20° tilt for targeted multi-directional beam orientation.

• Field-Selectable High-Output Power: Dual-stage power switch allows on-site selection between 36W (3200 LM total) and 56W (5200 LM total).

• Deep Regressed Anti-Glare Design: Recessed modules shield optics to minimize visual glare while outputting up to 2600 lumens per head.

• 5-CCT Field Selectable: Customize color temperature on-site between 2700K, 3000K, 3500K, 4100K, and 5000K.

• Universal Voltage & Commercial Specifications: Operates on 120-277V AC with Triac and 0-10V dimming support (100%-5%) and FT6 plenum cable rating.

• Wet Location & IC Rated: Safe for direct insulation contact (at 36W) and approved for damp or wet environments; Title 24 Compliant, ETL Listed, and backed by a 3-year warranty.

Technical Specification Comparison Table

Packaging & Logistics Specifications

• Master Pack Quantity: 4 Pieces (Both Models)

• Barcodes:

  • White (G-99022): 024431990228

  • Black (G-99122): 024431991225

• Included Accessories: Integrated Remote Junction Box / Universal Driver & Heavy-Duty Clip-In Spring Clips
