3.5 Inch Four Head Multiple Regress Gimbal Trimless LED Downlight | 6.800Lm Max | 120/277V | CCT Selectable | Altair Series | Goodlite G-98764/774

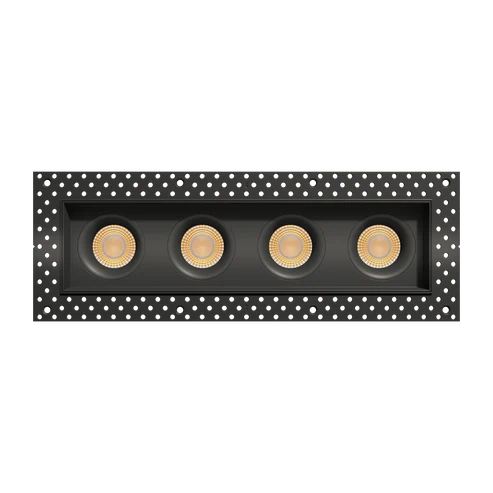

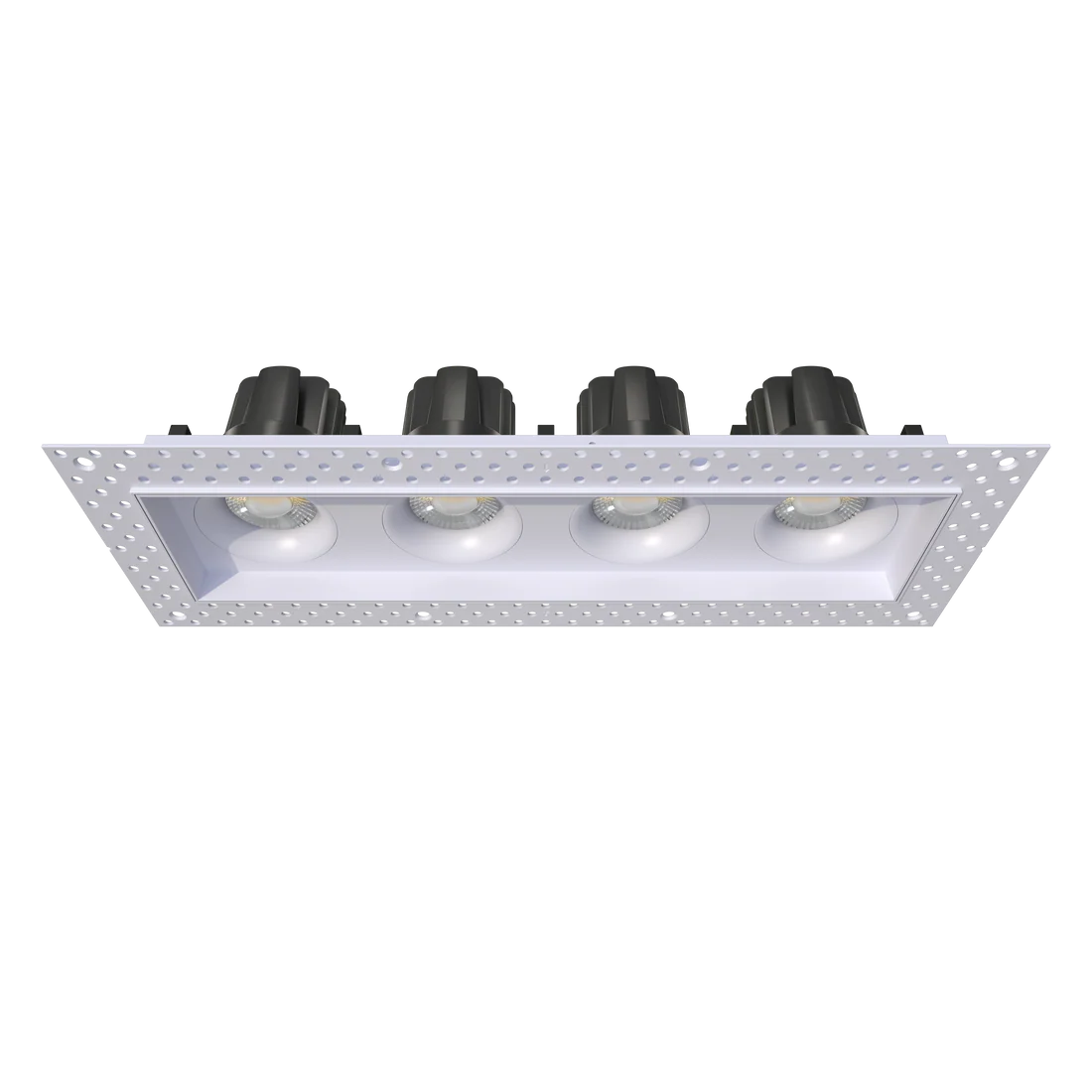

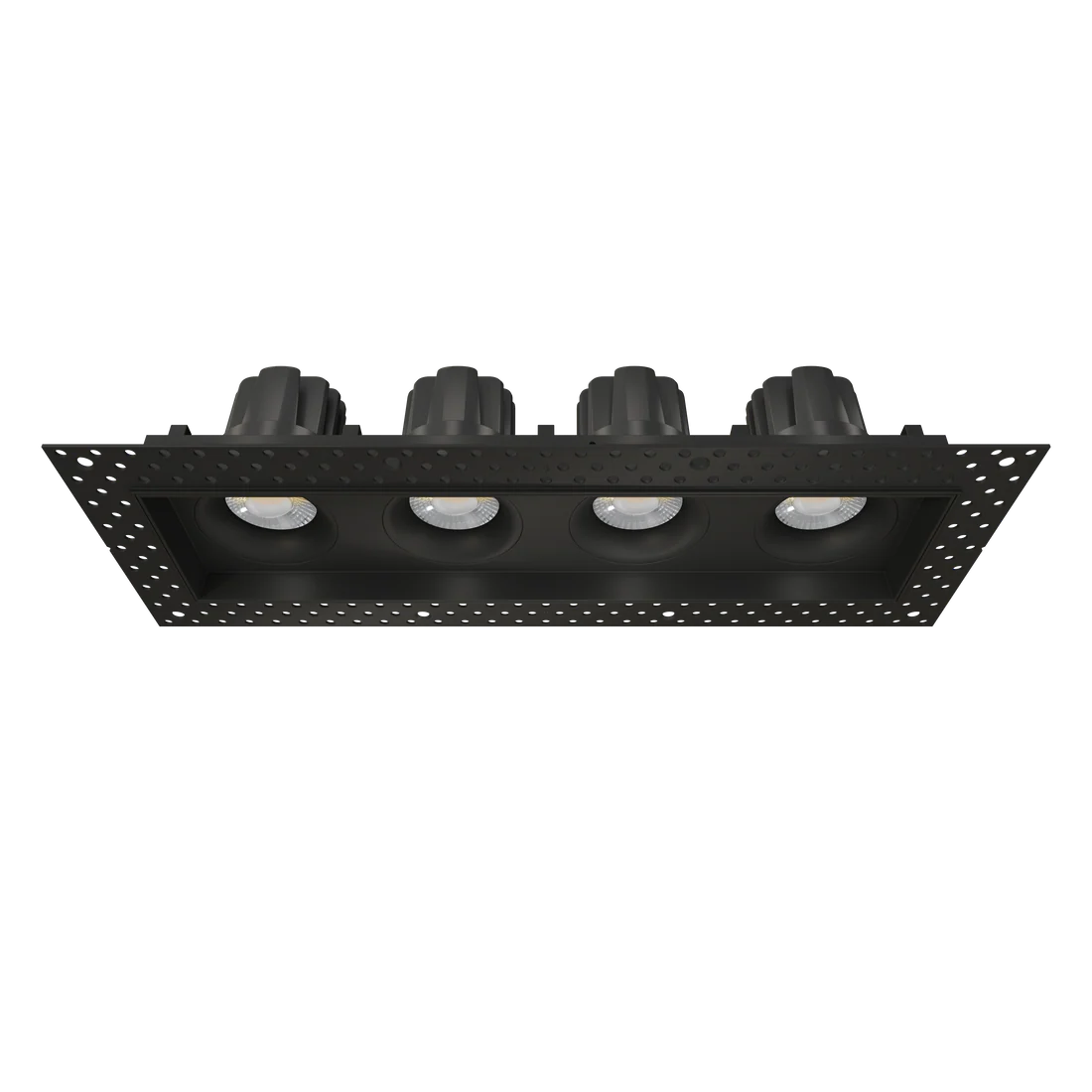

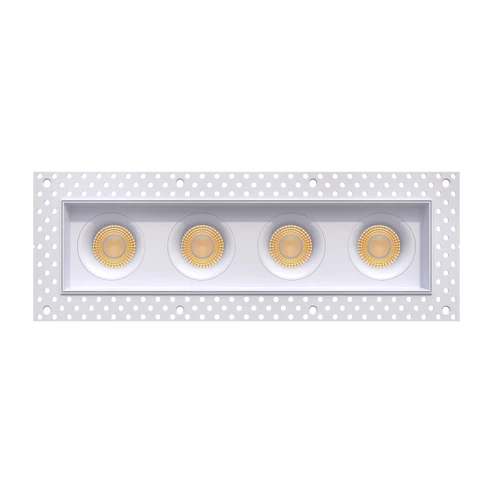

Introduce linear design symmetry and powerful high-output accent tracking to premium interiors with the Altair 3.5-Inch Trimless Four Head Regress Gimbal Series. Available in a pristine architectural white (Product Code: G-98764) and a bold matte black (Product Code: G-98774), this high-end four-light linear downlight eliminates the standard overlapping outer flange for a high-end, structural trimless look. Engineered to sit entirely flush within drywall and plaster applications, its integrated mud-in framework allows plastering right up to the interior edge. This presents a completely clean, seamless ceiling plane where only the architectural cluster of four recessed lighting engines is revealed.

The Altair trimless series is designed around a performance-oriented multiple regress housing layout, positioning clear quad light diffusers deep back into its rectangular framework. This multi-tiered architectural layout acts as a protective shield, trapping high-angle light spill to eliminate glare and deliver superior visual comfort. Built for dynamic directional lighting, each of the four modular lighting heads adjusts completely independently, offering a 30° directional tilt angle combined with full 360° rotation capability. This provides ultimate freedom to aim light at multiple fine art pieces, retail wall graphics, or structural textures from a single ceiling cutout with a concentrated 40° default beam spread.

Dual-Output Driver & Universal Voltage Configuration:

Engineered with high-capacity versatility for commercial or upscale residential spaces, the Altair series features a dual-wattage field toggle allowing installers to easily choose between a highly efficient 50W profile and a heavy-duty 80W profile. At its maximum 80W capacity, this four-head lineup projects a brilliant 6800 lumens (1700 lumens per head), or it can be configured down to 4900 lumens (1225 lumens per head) at the 50W energy-saving setting. Delivering exceptional color fidelity with a museum-grade CRI > 90, the entire system runs on a universal 120-277V electronic driver path at a selectable 1260mA or 1850mA output current. This architecture ensures smooth, flicker-free dimming transitions across standard residential Triac or commercial 0-10V dimming systems.

Key Features:

• Seamless Trimless Presentation: Eliminates visible frame borders by integrating a structural mud-in framework flush with drywall surfaces for a pure minimalist finish.

• Quad-Head Independent Aiming: Each of the four lighting engines supports independent 360° panning and 30° tilting, allowing for comprehensive multi-directional target accenting.

• Selectable Wattage & Dual Lumen Package: Easily alter the fixture's output between a 50W energy-saving profile or an 80W high-performance profile depending on project criteria.

• Rigorous Safety Engineering: Features a tough FT6 Plenum-rated wire jacket alongside full Wet Location seals for premium moisture protection. Note: The fixture is fully IC Rated for direct contact with structural insulation exclusively when configured to the 50W operational setting.

Technical Specification
