3.5 Inch Triple Head Multiple Regress Gimbal Trimless LED Downlight | 5.250Lm Max | 120/277V | CCT Selectable | Altair Series | Goodlite G-98763/773

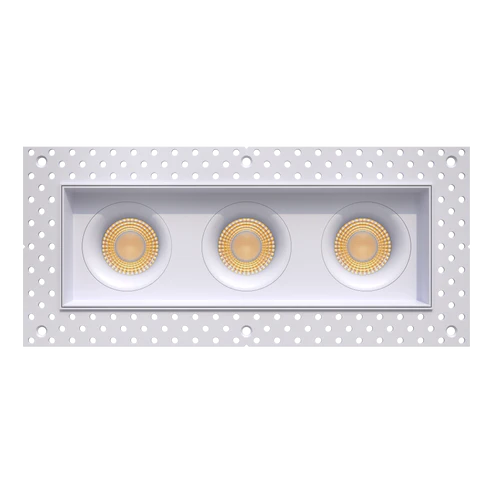

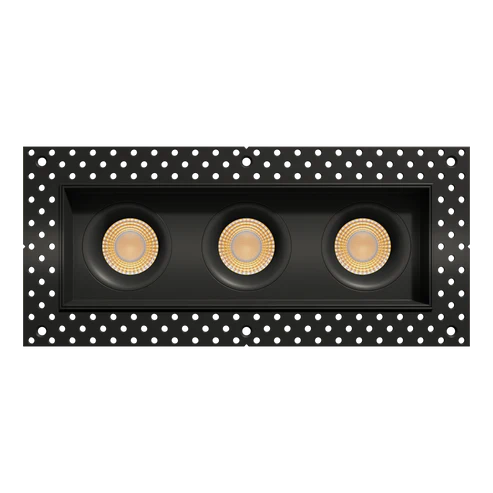

Deliver continuous architectural alignment and multi-target accent lighting to high-end interiors with the Altair 3.5-Inch Trimless Triple Head Regress Gimbal Series. Available in a pristine architectural white (Product Code: G-98763) and a sharp matte black (Product Code: G-98773), this premium three-light linear luminaire trades the traditional overlapping flange for a structural, trimless look. Engineered to integrate seamlessly into drywall and plaster ceiling profiles, its specialized mud-in framework allows plastering right up to the interior aperture. This creates a completely flush, seamless ceiling line where only the linear trio of recessed lighting engines is revealed.

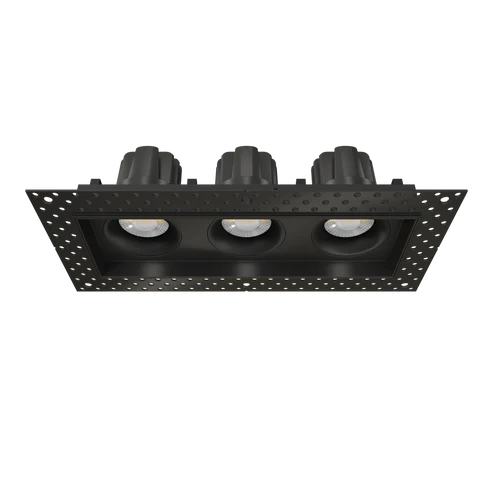

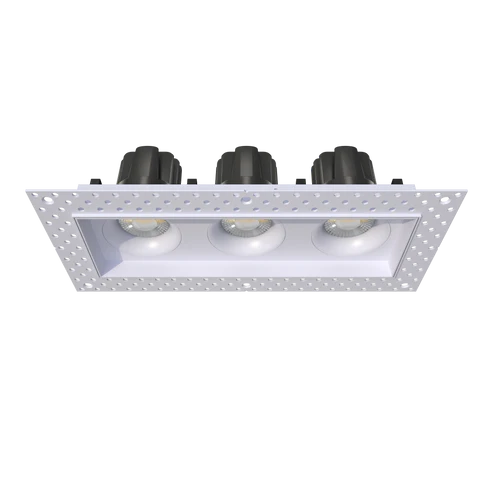

The Altair trimless series features a high-performance multiple regress housing layout, positioning clear triple light diffusers deep back into its sleek rectangular frame. This multi-tiered recessed framework acts as an architectural shield, absorbing high-angle light spill to drastically reduce glare and provide superb visual comfort. Designed for high-precision directional illumination, each of the three lighting heads adjusts independently, offering a 30° directional tilt angle alongside full 360° rotation capability. This gives you absolute control to target artwork, retail displays, or spatial focal points from a single ceiling opening with a sharp, concentrated 40° default beam spread.

Dual-Output Driver & Universal Voltage Configuration:

Built for demanding commercial and high-end residential applications, the Altair series features a dual-wattage field toggle that allows installers to alternate easily between a high-efficiency 39W profile and a powerful 60W profile. At its maximum 60W threshold, the triple-head system projects an impressive 5250 lumens (1750 lumens per head), or it can be dialed back to 3750 lumens (1250 lumens per head) at the 39W setting. Delivering excellent color rendering with a museum-grade CRI > 90, the system runs on an intelligent universal 120-277V electronic path at a selectable 940mA or 1380mA output current. This architecture ensures flicker-free, smooth dimming control across standard residential Triac or commercial 0-10V dimming protocols.

Key Features:

• Seamless Trimless Presentation: Eliminates visible frame borders by integrating a structural mud-in framework flush with drywall surfaces for a pure minimalist finish.

• Independent 360° Panning & 30° Tilting: Each lighting head features multi-axis movement, allowing you to aim light in completely different directions from a single unified linear fixture.

• Selectable Wattage & Dual Lumen Package: Easily alternate between a high-efficiency 39W configuration or a high-output 60W configuration depending on the illumination criteria of your space.

• Rigorous Safety Engineering: Includes an FT6 Plenum-rated wire jacket and full Wet Location seals for premium moisture protection. Note: The fixture is fully IC Rated for direct contact with building insulation exclusively when configured to the 39W operational setting.

Technical Specification
