3.5 Inch Double Head Multiple Regress Gimbal Trimless LED Downlight | 3.600Lm Max | 120/277V | CCT Selectable | Altair Series | Goodlite G-98762/772

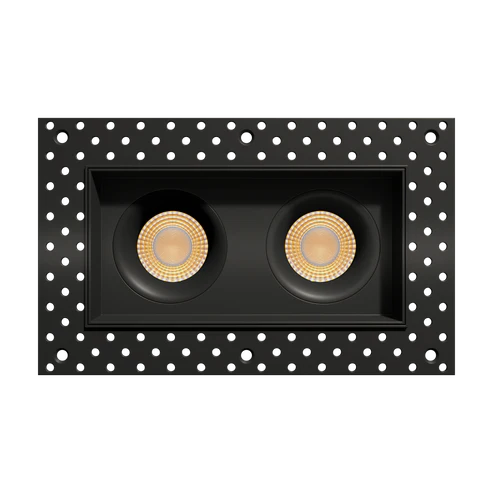

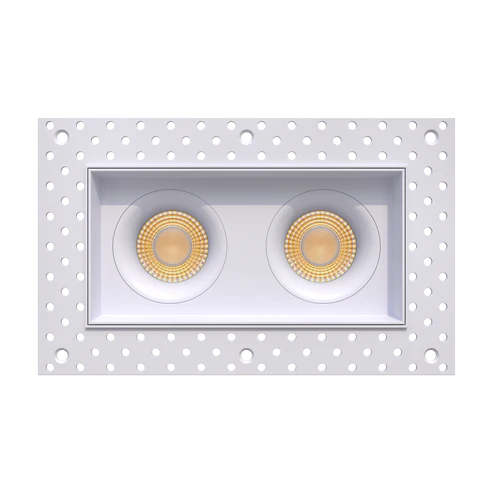

Introduce seamless architectural alignment and multi-directional targetability to your environment with the Altair 3.5-Inch Trimless Double Head Regress Gimbal Series. Available in clean architectural white (Product Code: G-98762) and bold matte black (Product Code: G-98772), this premium dual-light commercial downlight discards the standard overlapping flange for a high-end, structural trimless look. Designed to integrate perfectly into high-end plaster applications, its flush-mount mud-in framing blends flawlessly with surrounding drywall, creating a continuous ceiling plane where only the twin recessed light engines are revealed.

The Altair trimless series features a high-performance multiple regress housing layout, positioning clear dual diffusers deep within its rectangular structural framework. This multi-tier recessed architecture keeps the illumination sources shielded away from standard viewing angles, effectively controlling glare and maintaining superior visual comfort. For customized directional accenting, both lighting elements feature independent adjustments, supporting a 30° directional tilt angle combined with a full 360° rotation capability. This enables you to pinpoint artwork, focal objects, or architectural zones from a single ceiling opening with a sharp, concentrated 40° default beam spread.

Dual-Output Driver & Intelligent Multi-Volt Design:

Engineered with commercial-grade adaptability, the Altair series features a dual-wattage field toggle, allowing easy adjustment between 27W and 40W profiles. At full 40W capacity, it projects up to a brilliant 3600 lumens (1800 lumens per head), or it can be configured down to 2600 lumens (1300 lumens per head) at the 27W efficiency setting. Delivering exceptional color-rendering performance with a CRI > 90, the fixture operates on a universal 120-277V electronic driver path running at a selectable 630mA or 930mA output current. This configuration ensures smooth dimming transitions across standard residential Triac or commercial 0-10V dimming architectural systems.

Key Features:

• Seamless Trimless Presentation: Eliminates visible frame borders by integrating a structural mud-in framework flush with drywall surfaces for a pure minimalist finish.

• 360° Rotational Aiming Precision: Features independent full 360° panning rotation and a 30° tilt adjustment on each head to achieve completely unhindered directional accent control.

• Selectable Wattage & Lumen Package: Effortlessly adjust the engine between a high-efficiency 27W configuration or a high-output 40W configuration depending on ceiling height and space demands.

• Rigorous Safety Engineering: Includes an FT6 Plenum-rated wire jacket and a Wet Location seal for premium moisture protection. Note: The fixture is fully IC Rated for direct contact with structural ceiling insulation exclusively when configured to the 27W operational setting.

Technical Specification
