3.5 Inch Single Head Multiple Regress Gimbal Trimless LED Downlight | 1.850Lm Max | 120/277V | CCT Selectable | Altair Series | Goodlite G-98761/771

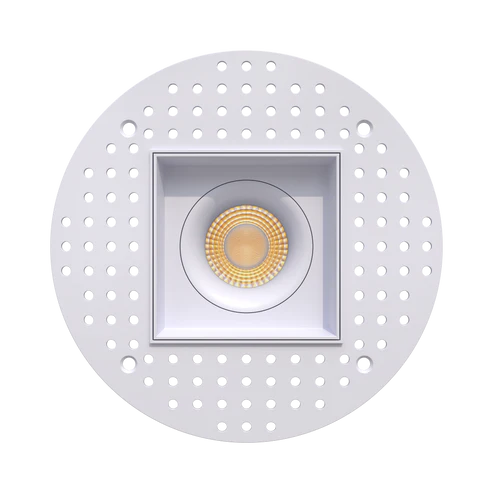

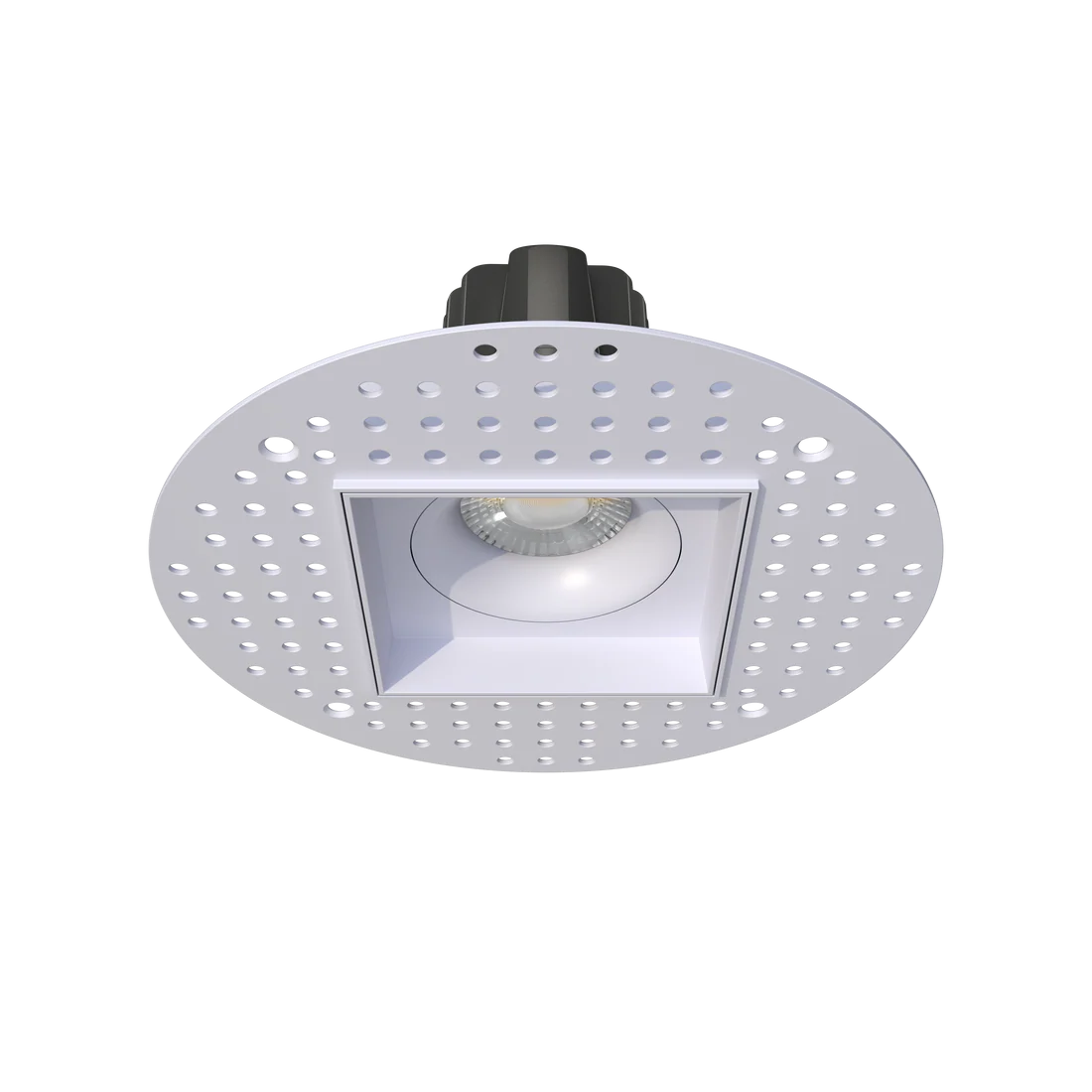

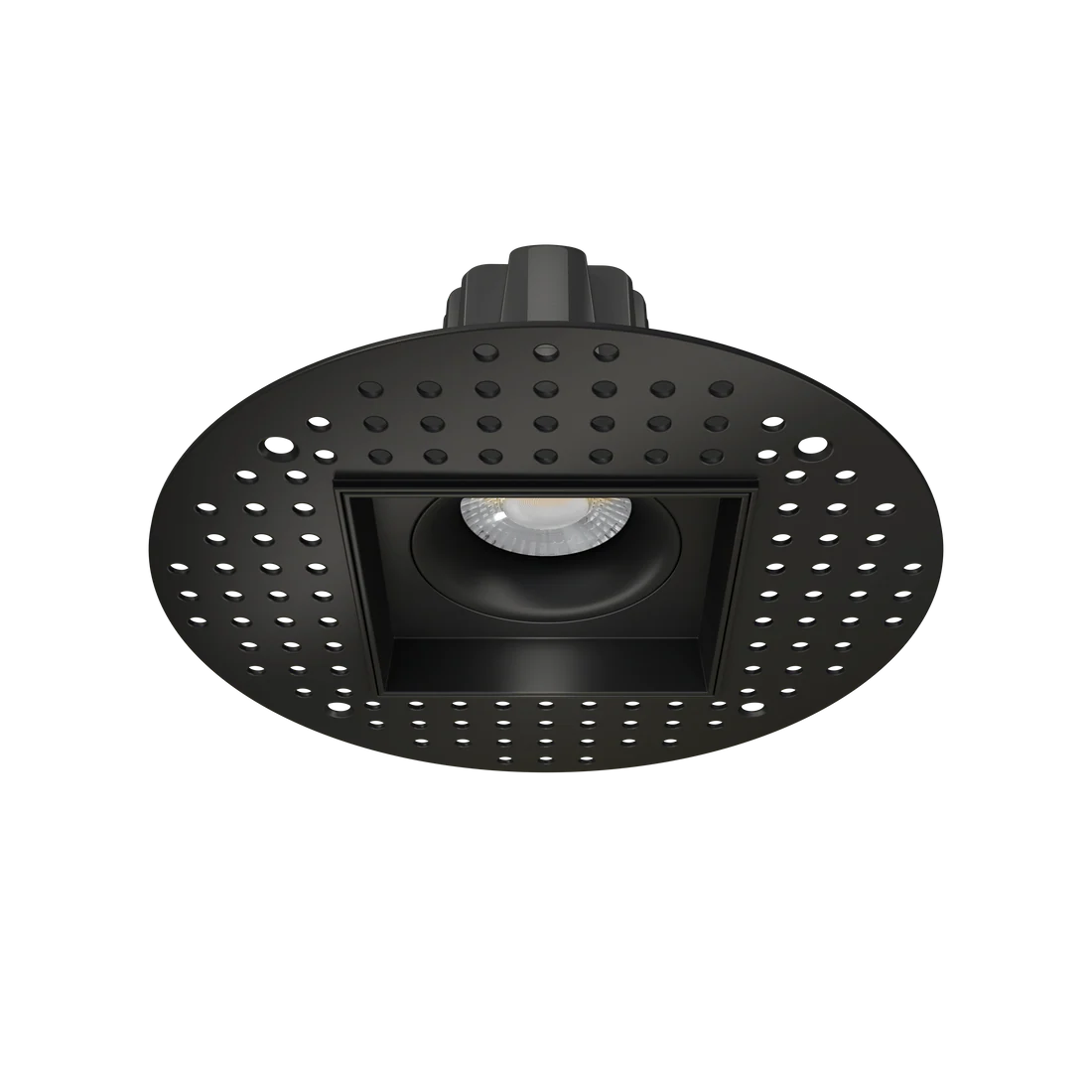

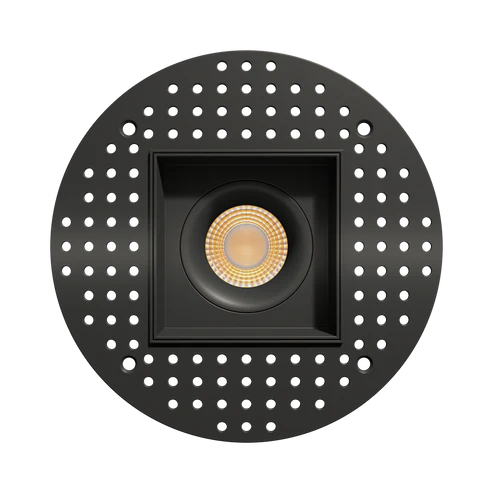

Achieve an ultra-clean, flush ceiling profile with the Altair 3.5-Inch Trimless Square Single Head Regress Gimbal Series. Available in a crisp architectural white (Product Code: G-98761) and a bold matte black (Product Code: G-98771), this premium luminaire is masterfully engineered for high-end residential and commercial environments. By completely discarding the traditional overlapping flange in favor of a sleek, structural trimless look, it secures seamlessly via heavy-duty tension spring clips into the plaster matrix. The fixture blends flawlessly with the surrounding drywall to present a continuous, unmarred ceiling plane where only the minimalist recessed light engine remains visible.

The Altair trimless series is built around an advanced multiple regress housing design, recessing the high-efficiency single clear light diffuser deep back into its square framework. This multi-tiered architectural shielding significantly controls high-angle light spill, eliminating glare and providing superb visual comfort for viewers below. For precision accent lighting, the internal mechanical engine features a smooth 30° directional tilt angle merged with full, unhindered 360° rotation capability. This enables you to pinpoint fine art pieces, retail wall graphics, or premium architectural textures with a sharp, concentrated 40° default beam spread.

Dual-Output Driver & Universal Voltage Configuration:

This high-performance downlight features an integrated wattage-tuning toggle that allows installers to alternate in the field between a high-efficiency 14W profile and a powerful 20W profile. At its maximum 20W operational ceiling, the light source pumps out up to a bright 1850 lumens (and 1400 lumens at 14W) with a museum-grade color fidelity of CRI > 90. Driven by an intelligent universal 120-277V input system running at a selectable 320mA or 480mA output current, it ensures adaptive, flicker-free light regulation across both residential Triac or commercial 0-10V dimming architectural protocols.

Key Features:

• Seamless Trimless Presentation: Eliminates visible frame borders by integrating a structural mud-in framework flush with drywall surfaces for a pure minimalist finish.

• 360° Rotational Panning: Equipped with a multi-axis internal gimbal frame supporting independent 360° panning and 30° tilting for absolute directional versatility.

• Versatile Field Selectability: Combines field-selectable wattage tuning (14W/20W) with an intuitive 5-CCT Selectable technology switch (27K, 30K, 35K, 41K, 50K) to meet any design palette.

• Robust Construction Compliance: Features a tough FT6 Plenum-rated cable jacket alongside full Wet Location classification for premium shower, spa, or canopy integrations. Note: Fully IC Rated for direct contact with building insulation exclusively at the 14W power setting.

Technical Specification
