3.5 Inch Four Head Multiple Regress Gimbal LED Downlight | 6.800Lm Max | 120/277V | CCT Selectable | Altair Series | Goodlite G-98744/754

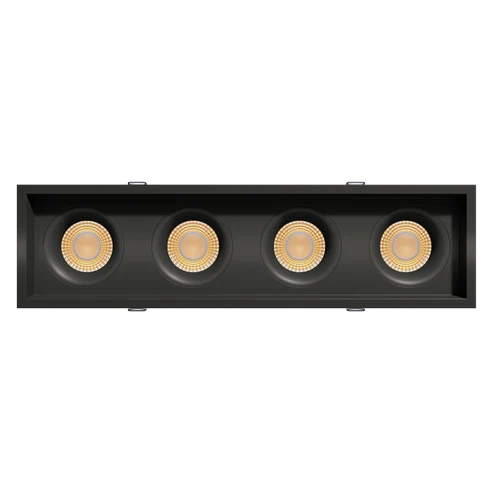

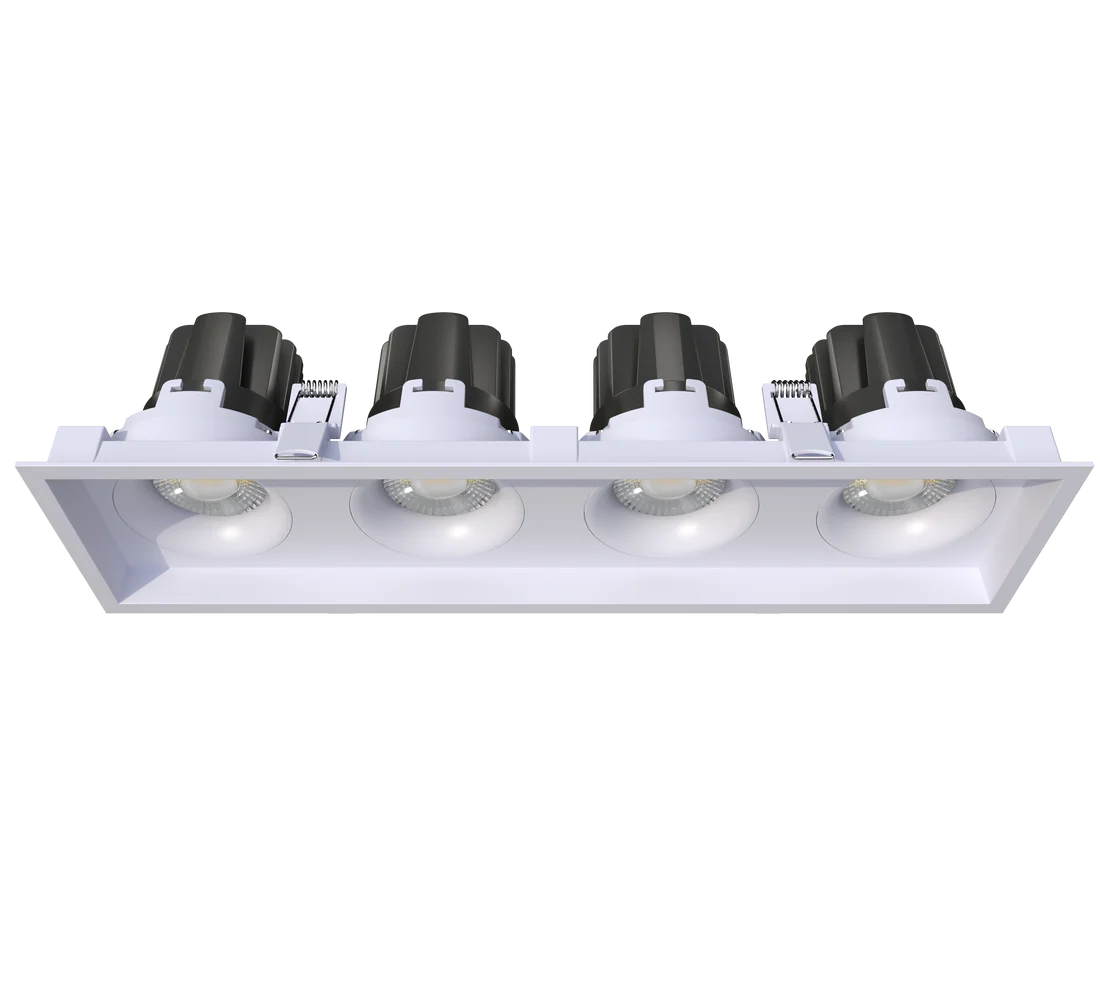

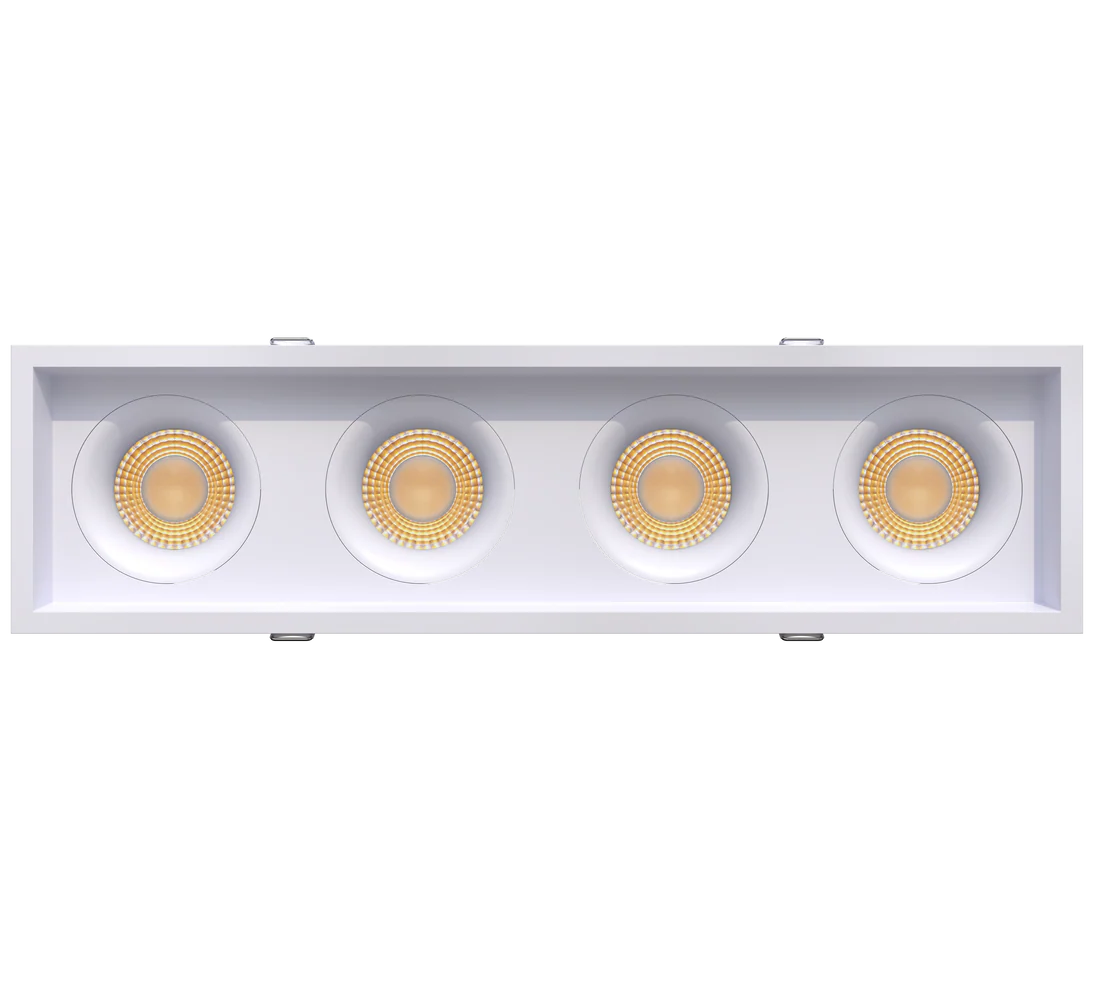

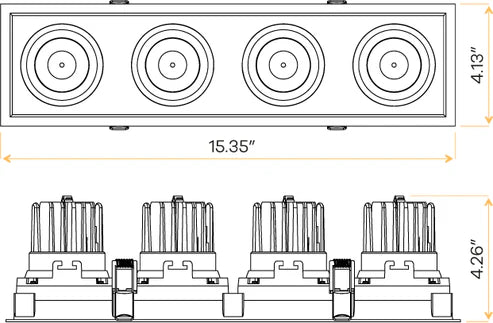

Introduce powerful linear architectural symmetry and high-performance targetability to large-scale environments with the Altair 3.5-Inch Four Head Regress Gimbal Series. Available in a clean textured white (Product Code: G-98744) and a bold matte black (Product Code: G-98754), this commercial-grade multi-light downlight features an elongated rectangular profile with classic trimmed styling. Designed for secure, trouble-free installations, its low-profile overlapping flange smoothly masks minor sheetrock cutting inconsistencies, while heavy-duty tension clips enable a rapid, stable clip-in mounting process into a 3.70" x 14.92" linear cutout.

The Altair series is engineered around an advanced multiple regress housing, dropping the clear fourfold diffuser optics deep within each individual rectangular cell. This multi-tier recessed architecture shields the illumination sources from high viewer angles, drastically minimizing visual fatigue and ambient glare across high-traffic zones. For fully customized accenting, all four internal light engines boast independent adjustment capabilities, featuring a 30° directional tilt angle combined with full 360° rotation capability. This allows you to target architectural millwork, retail displays, or structural focal points in multiple directions simultaneously from a single ceiling fixture run with a crisp, concentrated 40° default beam spread.

Dual-Output Power & Intelligent Multi-Volt Design:

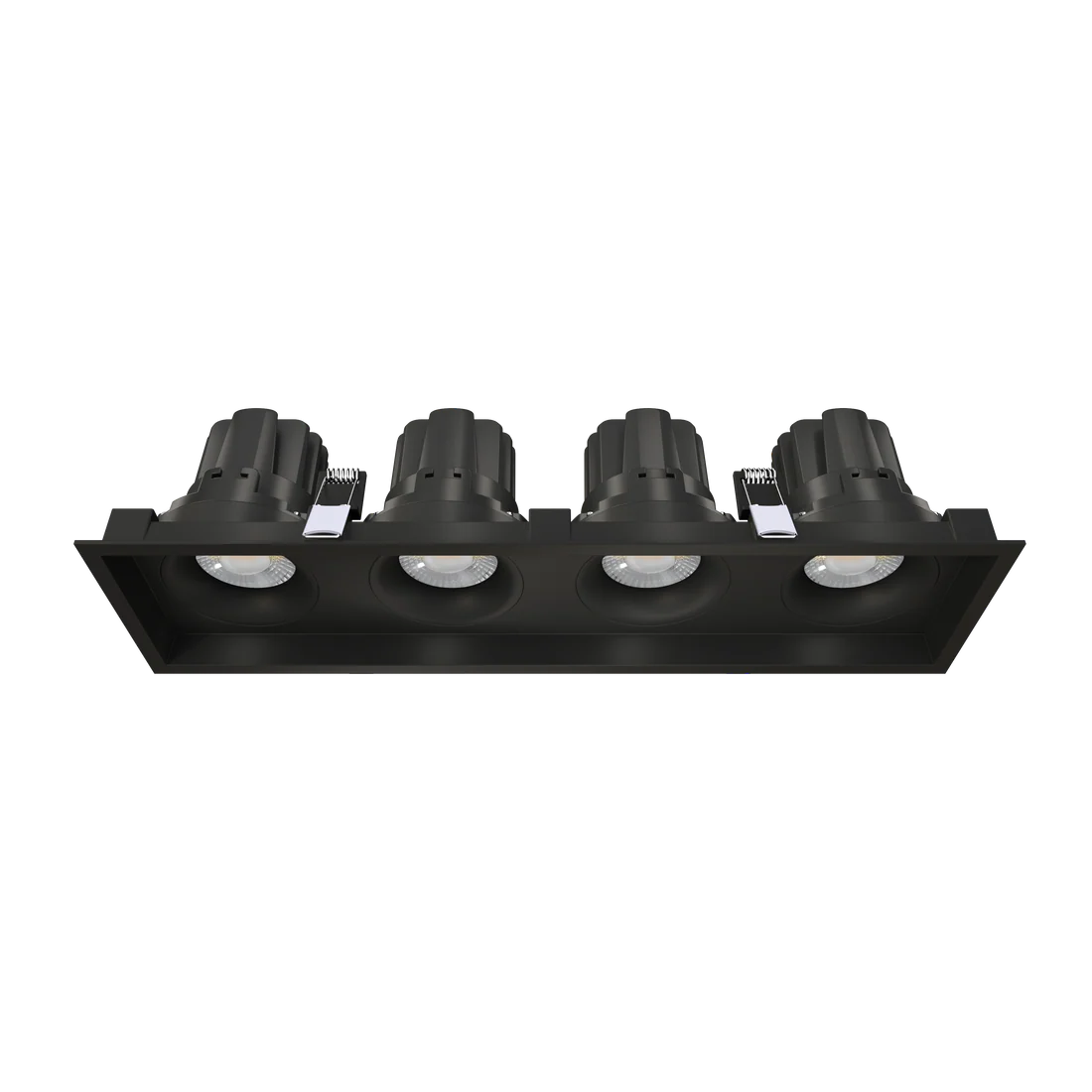

Built with exceptional field flexibility, the Altair series features an adjustable wattage toggle, allowing field selection between 50W and 80W profiles. At full 80W capacity, it projects up to a brilliant, expansive 6800 lumens (1700 lumens per head), or it can be switched down to 4900 lumens (1225 lumens per head) at the 50W energy-saving setting. Delivering excellent color-rendering precision with a CRI > 90, the fixture is driven by an integrated universal 120-277V electronic driver path running at a selectable 1260mA or 1850mA output current. This configuration facilitates smooth dimming control across standard residential Triac or commercial 0-10V dimming networks.

Key Features:

• 360° Rotational Aiming Precision: Features independent full 360° panning rotation and a 30° tilt adjustment on each of the four heads to achieve completely unhindered directional accent control.

• Selectable Wattage & Lumen Package: Effortlessly adjust the engine between a high-efficiency 50W configuration or a high-output 80W configuration depending on ceiling height and space demands.

• Rigorous Safety Engineering: Includes an FT6 Plenum-rated wire jacket and a Wet Location seal for premium moisture protection. Note: The fixture is fully IC Rated for direct contact with structural ceiling insulation exclusively when configured to the 50W operational setting.

Technical Specification
