3.5" Triple Head Multiple Regress Gimbal LED Downlight | 5,250Lm Max | CCT Selectable | Goodlite G-98743/753

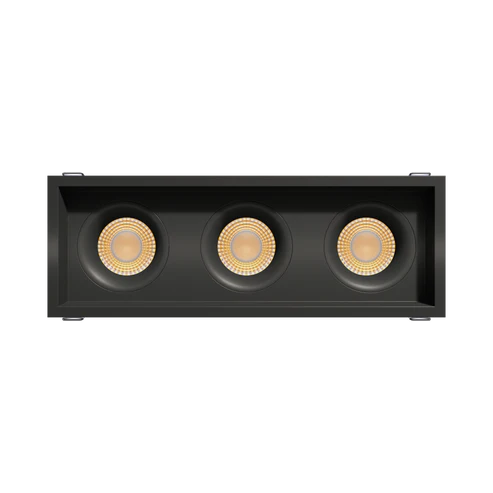

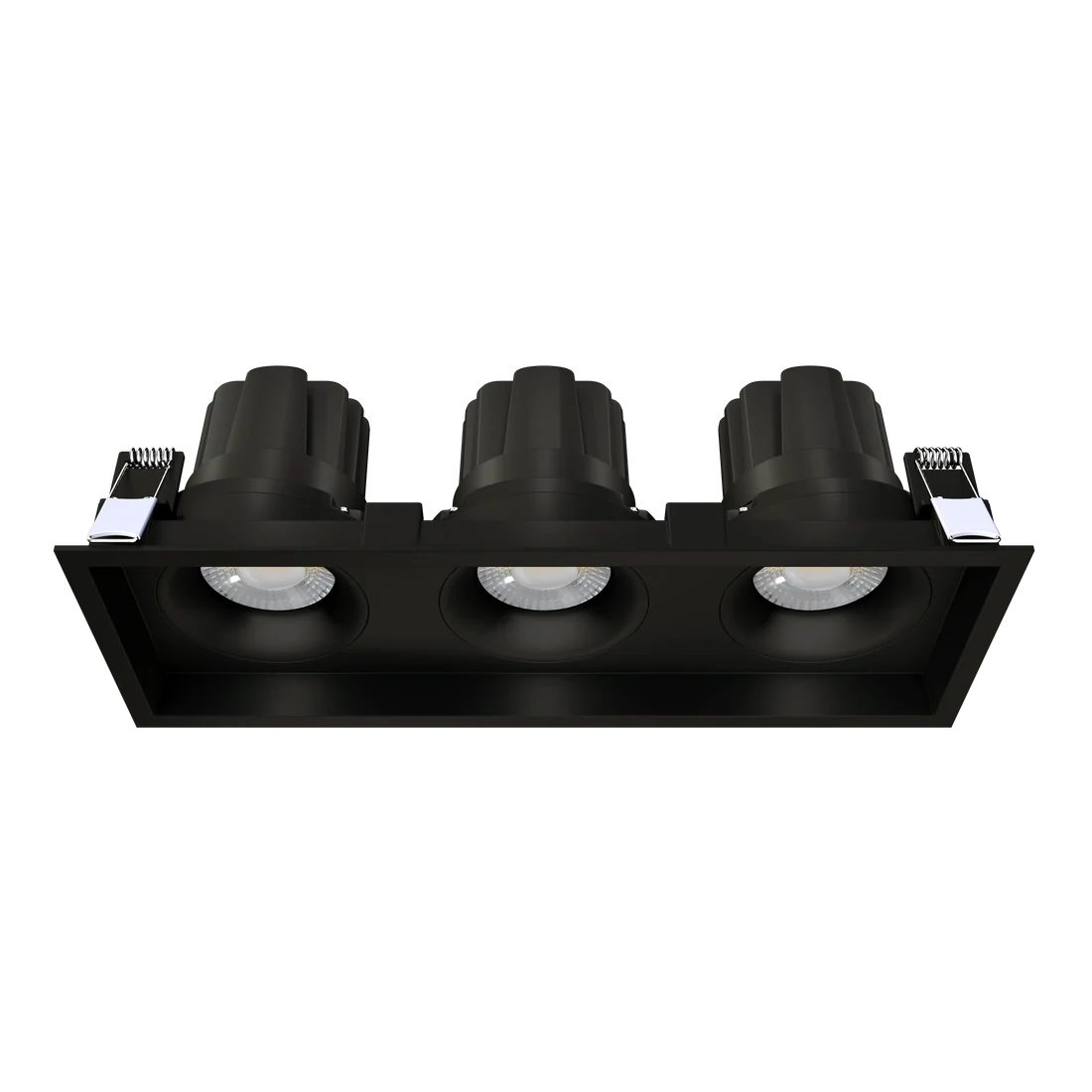

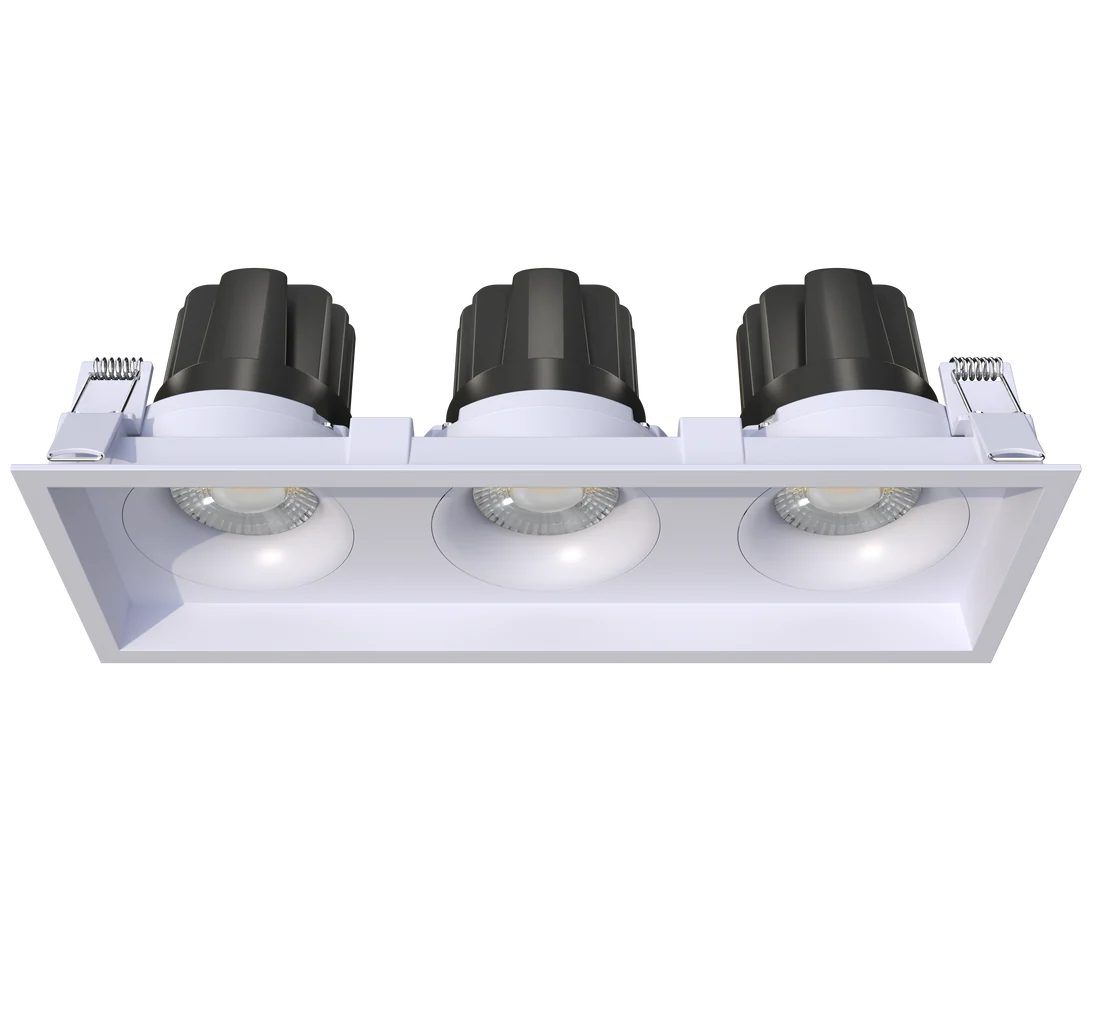

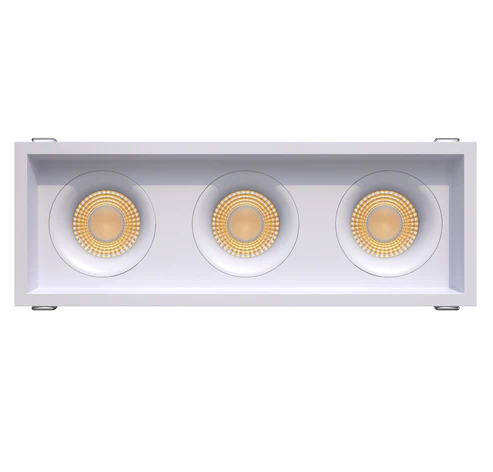

Deliver precision multi-directional architectural spotlighting with the Altair 3.5" Triple Head Multiple Regressed Gimbal LED Recessed Light Series. Engineered with a classic trimmed linear profile, these three-light fixtures feature three independently adjustable 3.5-inch regressed gimbal heads within a single enclosure. This allows for targeted, multi-angle illumination across gallery displays, feature walls, retail spaces, and high-ceiling corridors.

This commercial-grade series features dual-stage field tuning: an integrated Power Selectable switch enables installers to set system wattage to 39W (3750 Total Lumens / 1250 LM per head) or 60W (5250 Total Lumens / 1750 LM per head). An integrated 5-CCT Field Selectable switch provides on-site color temperature tuning (2700K, 3000K, 3500K, 4100K, and 5000K). Each deep-set head offers complete aiming capabilities with 360° horizontal rotation and a 30° vertical tilt angle, placing the light source deep inside the housing to effectively eliminate glare.

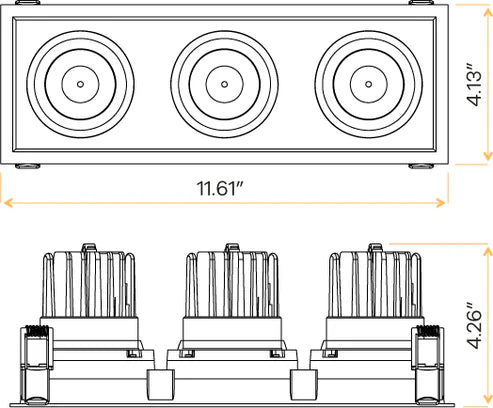

Powered by a commercial-grade driver operating on universal 120-277V AC input with FT6 plenum-rated cabling, both models support dual Triac and 0-10V dimming protocols (100% to 5% range). Available in clean White (G-98743) and bold Black (G-98753) finishes, these units mount quickly into 3.70" x 11.18" ceiling cutouts using heavy-duty clip-in spring tabs (4.26" height). Certified California Title 24 Compliant and ETL Listed, they are rated for Wet Locations and carry an IC Rating specifically when operated at the 39W setting (3-year warranty included).

Key Features:

• Triple Independent Gimbal Heads: Three individually adjustable 3.5" light modules with 360° rotation and 30° tilt for targeted multi-directional aiming.

• Field-Selectable Wattage & Output: Dual-stage power switch allows on-site selection between 39W (3750 LM total) and 60W (5250 LM total).

• Deep Regressed Anti-Glare Design: Recessed modules shield optics to control visual glare while maintaining a focused 40° beam distribution per head.

• 5-CCT Field Selectable: Customize color temperature on-site between 2700K, 3000K, 3500K, 4100K, and 5000K.

• Universal Voltage & Commercial Specifications: Operates on 120-277V AC with Triac and 0-10V dimming support (100%-5%) and FT6 plenum cable rating.

• Wet Location & IC Rated: Safe for direct insulation contact (at 39W) and approved for wet/damp environments; Title 24 Compliant, ETL Listed, and backed by a 3-year warranty.

Technical Specification Comparison Table

Packaging & Logistics Specifications

• Master Pack Quantity: 6 Pieces (Both Models)

• Barcodes:

  • White (G-98743): 990379987432

  • Black (G-98753): 990379987531

• Included Accessories: Integrated Remote Junction Box / Universal Driver & Heavy-Duty Clip-In Spring Clips
