3.5 Inch Double Head Multiple Regress Gimbal LED Downlight | 3.600Lm Max | 120/277V | CCT Selectable | Altair Series | Goodlite G-98742/752

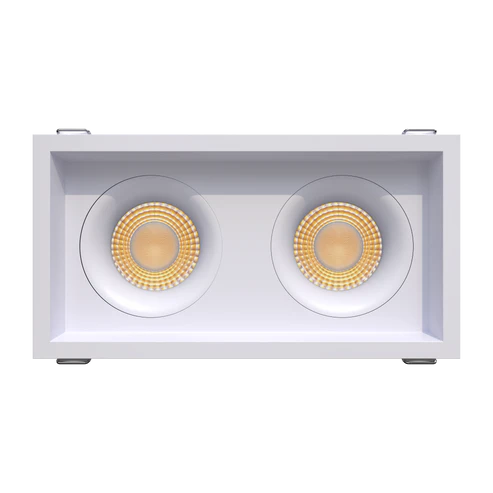

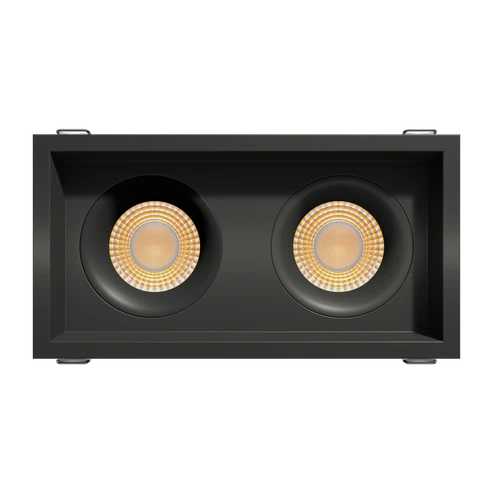

Introduce linear architectural symmetry and precision beam targetability to your space with the Altair 3.5-Inch Double Head Regress Gimbal Series. Available in clean textured white (Product Code: G-98742) and bold matte black (Product Code: G-98752), this commercial-grade dual-light downlight features a modern rectangular profile with classic trimmed styling. Designed for secure installations, its low-profile overlapping flange easily masks minor sheetrock inconsistencies, while heavy-duty tension clips enable a rapid clip-in mounting process into a 3.70" x 7.44" linear cutout.

The Altair series is engineered around an advanced multiple regress housing, dropping the clear dual diffuser optics deep within each rectangular cell. This multi-tier recessed architecture shields the illumination source from high viewer angles, drastically minimizing visual fatigue and ambient glare. For customized accenting, both internal light engines boast independent adjustment capabilities, featuring a 30° directional tilt angle combined with full 360° rotation capability. This lets you target fine art, retail displays, or structural focal points from a single ceiling location with a crisp, concentrated 40° default beam spread.

Dual-Output Power & Intelligent Multi-Volt Design:

Built with high-performance flexibility, the Altair series features an adjustable wattage toggle, allowing field selection between 27W and 40W profiles. At full 40W capacity, it projects up to a brilliant 3600 lumens (1800 lumens per head), or it can be switched down to 2600 lumens (1300 lumens per head) at the 27W setting. Delivering excellent color-rendering precision with a CRI > 90, the fixture is driven by an integrated universal 120-277V electronic path running at a selectable 630mA or 930mA output current. This configuration facilitates smooth dimming control across standard residential Triac or commercial 0-10V dimming networks.

Key Features:

• 360° Rotational Aiming Precision: Features independent full 360° panning rotation and a 30° tilt adjustment on each head to achieve completely unhindered directional accent control.

• Selectable Wattage & Lumen Package: Effortlessly adjust the engine between a high-efficiency 27W configuration or a high-output 40W configuration depending on ceiling height and space demands.

• Rigorous Safety Engineering: Includes an FT6 Plenum-rated wire jacket and a Wet Location seal for premium moisture protection. Note: The fixture is fully IC Rated for direct contact with structural ceiling insulation exclusively when configured to the 27W operational setting.

Technical Specification
