3.5 Inch Single Head Multiple Regress Gimbal LED Downlight | 1.850Lm Max | 120/277V | CCT Selectable | Altair Series | Goodlite G-98741/751

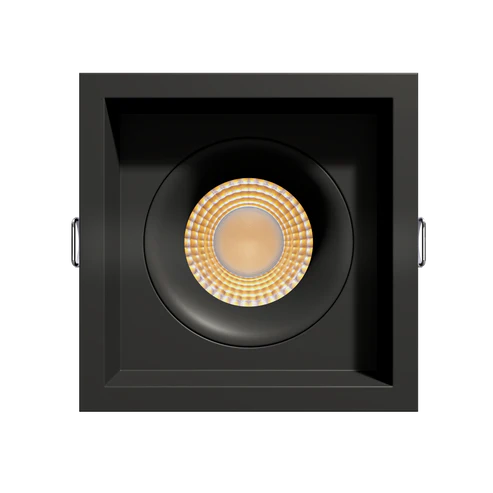

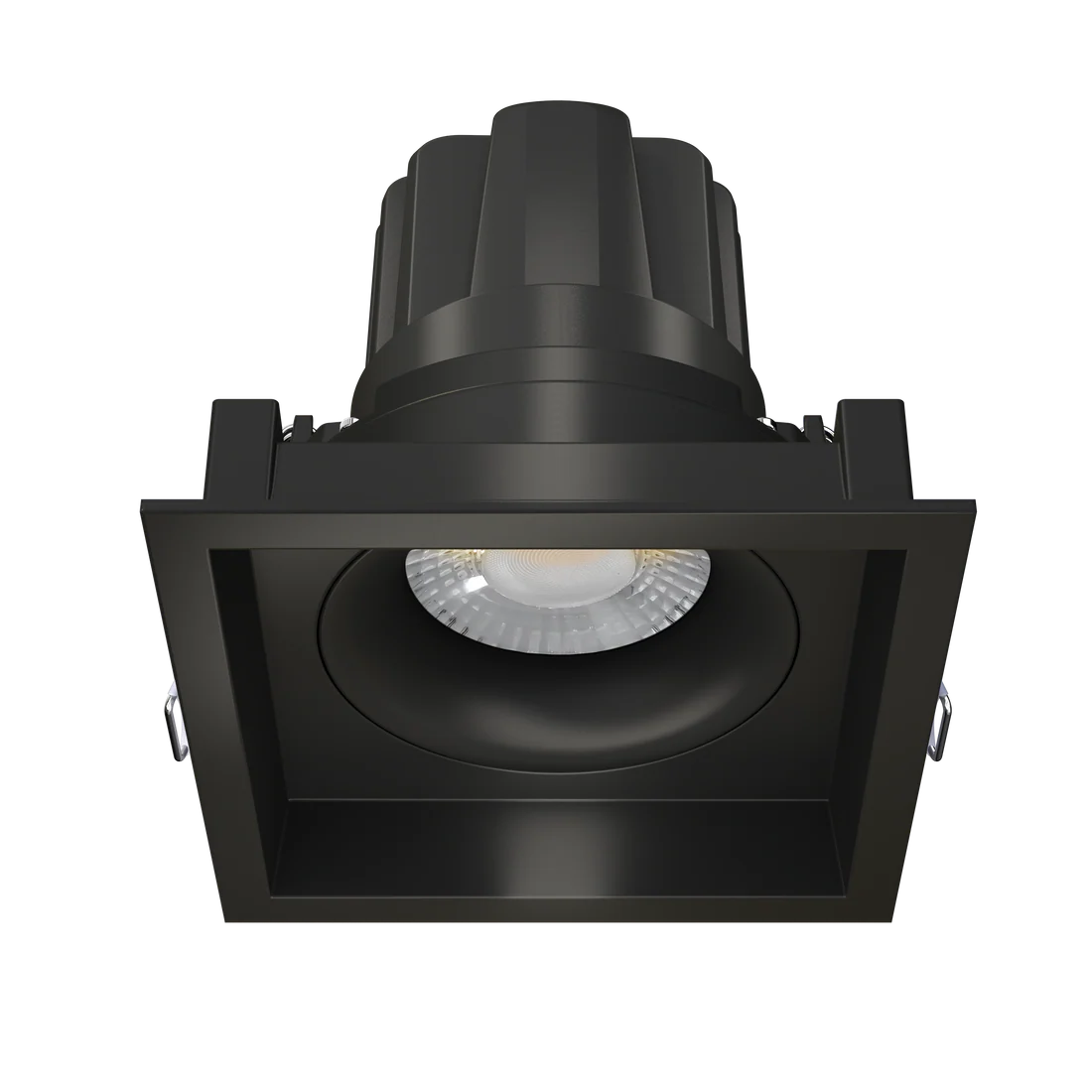

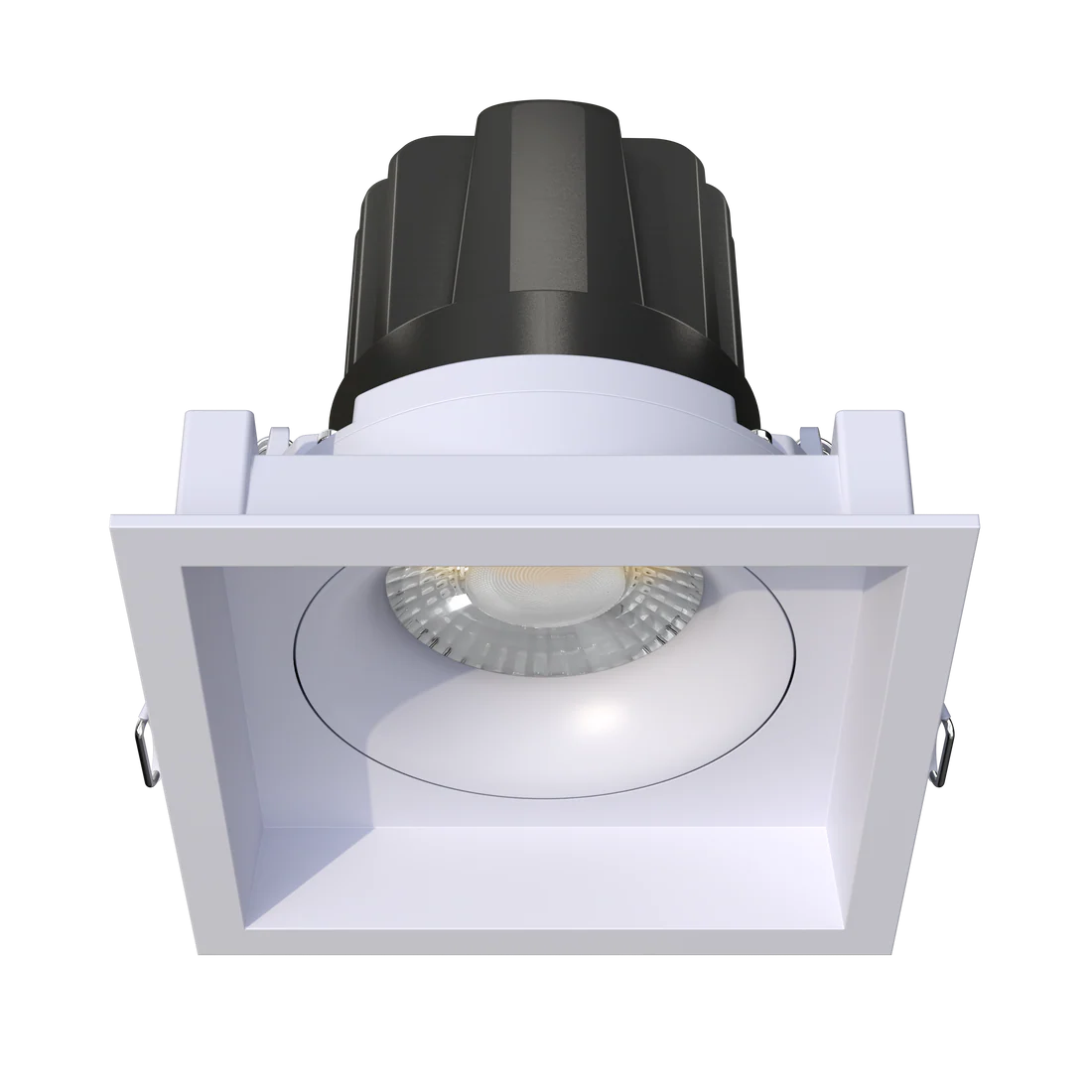

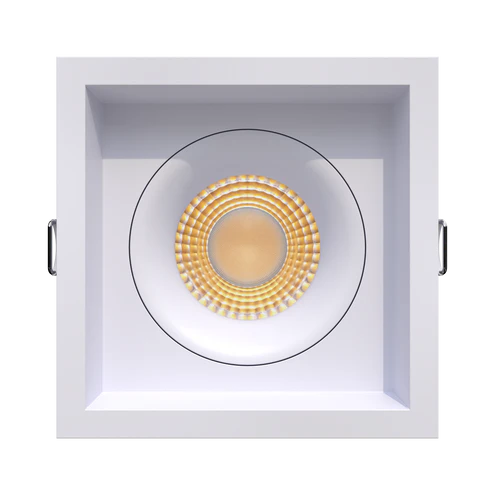

Introduce architectural depth and precision-engineered beam steering to your space with the Altair 3.5-Inch Square Single Head Regress Gimbal Series. Available in a clean textured white (Product Code: G-98741) and a bold matte black (Product Code: G-98751), this high-end fixture features a modern square profile with classic trimmed styling. Designed for clean, straightforward installations, its low-profile overlapping flange easily masks minor sheetrock inconsistencies, while heavy-duty tension clips enable a rapid clip-in mounting process into a 3.77" x 3.77" square cutout.

The Altair series is engineered around an advanced multiple regress housing, dropping the clear single diffuser optic deep within the square cell. This multi-tier recessed architecture shields the illumination source from high viewer angles, drastically minimizing visual fatigue and ambient glare. For tailored accenting, the internal light engine boasts a 30° directional tilt angle combined with full 360° rotation capability, letting you target fine art, architectural millwork, or focal retail displays with a crisp, concentrated 40° default beam spread.

Dual-Output Power & Intelligent Multi-Volt Design:

Built with high-performance flexibility, the Altair series features an adjustable wattage toggle, allowing field selection between 14W and 20W profiles. At full 20W capacity, it projects up to 1850 lumens (and 1400 lumens at 14W) with a brilliant color-rendering precision of CRI > 90. Driven by an integrated universal 120-277V electronic path running at a selectable 320mA or 480mA output current, it facilitates smooth dimming control across standard residential Triac or commercial 0-10V dimming networks.

Key Features:

• 360° Rotational Aiming Precision: Features full 360° panning rotation and a 30° tilt adjustment to achieve completely unhindered directional accent control.

• Selectable Wattage & Lumen Package: Effortlessly adjust the engine between a high-efficiency 14W configuration or a high-output 20W configuration depending on ceiling height and space demands.

• Rigorous Safety Engineering: Includes an FT6 Plenum-rated wire jacket and a Wet Location seal for premium moisture protection. Note: The fixture is fully IC Rated for direct contact with structural ceiling insulation exclusively when configured to the 14W operational setting.

Technical Specification
