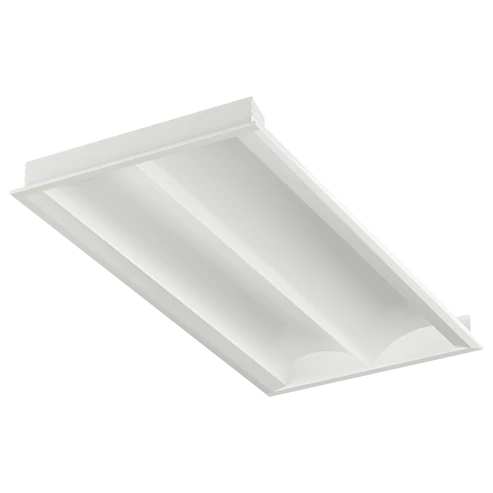

2X4 LED Indirect Double Vault Troffer | 8,050 Lumens Max | 120/277V | CCT Selectable | Neptune Series | Goodlite G-98262

Achieve superior glare control and architectural sophistication in modern commercial environments with the Neptune 2x4 Indirect Double Vault Troffer LED Luminaire. Registered under product code G-98262 (Ordering Code: F/2X4/70W/IND/2-VLT/WS3/5CCT), this high-performance lay-in fixture features an indirect dual-vault reflector design paired with high-transmittance frosted diffusers. By bouncing light upward into two sculpted vaulted cavities before diffusing it evenly downward, it effectively eliminates direct LED glare (UGR <22), creating a soft, expansive volumetric illumination ideal for modern open-plan offices, conference rooms, classrooms, and healthcare settings.

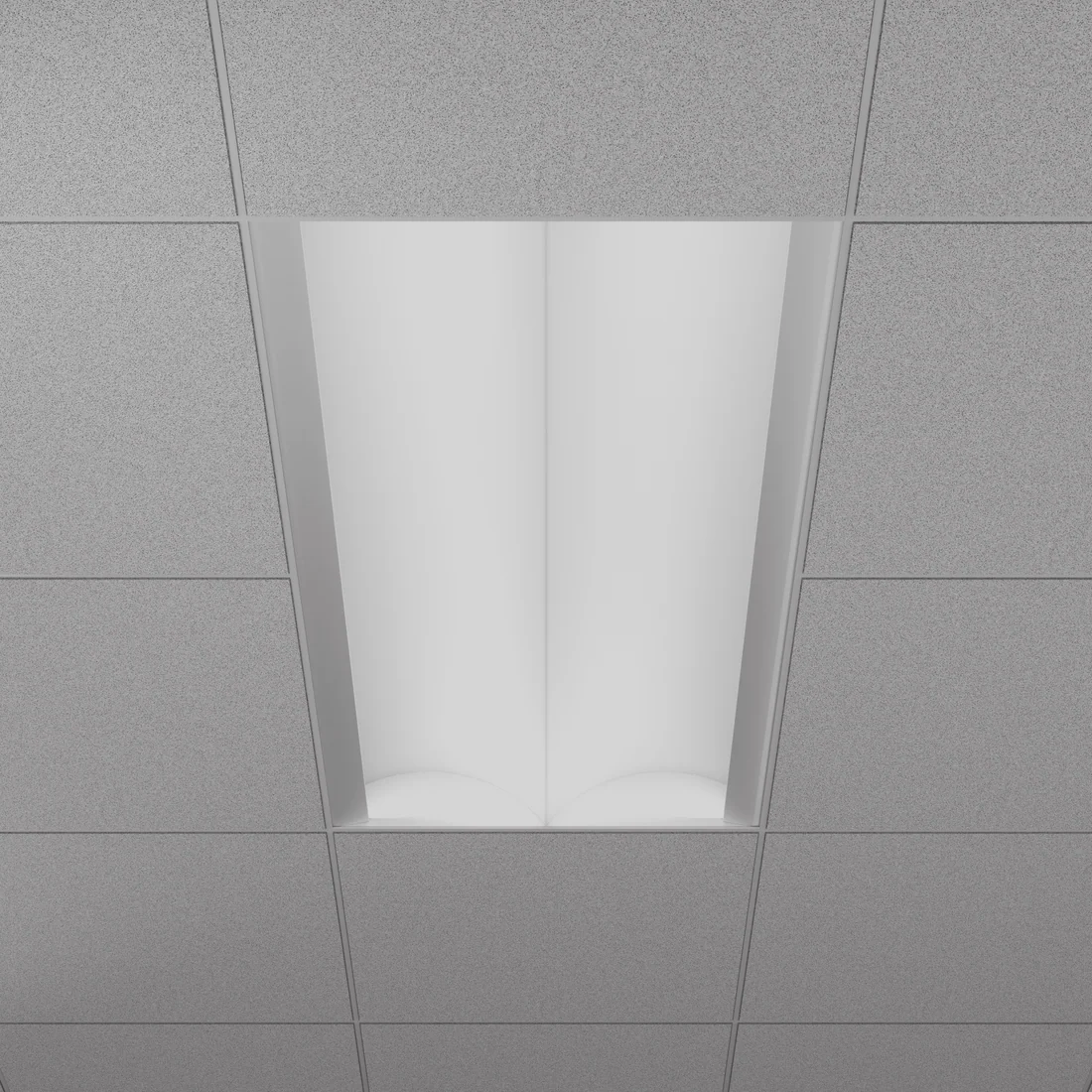

Engineered for standard drop-in T-bar ceiling grids, the luminaire features a low-profile 3.94-inch housing depth for easy installation in shallow ceiling plenums. On-site adaptability is built into the fixture, combining a 3-stage selectable wattage switch (50W, 60W, and 70W)—producing outputs of 5750, 6900, or 8050 lumens—with an internal 5-CCT selectable switch (3000K, 3500K, 4100K, 5000K, and 6500K). The multi-volt driver operates seamlessly across 120V to 277V line systems with continuous 0-10V dimming. Additionally, it comes equipped with a pre-installed motion sensor port (sensor sold separately, compatible with G-98210 or G-98211) to allow quick plug-and-play occupancy and daylight harvesting integration. DLC and ETL listed, it is backed by a 5-year limited warranty.

Key Features:

• Indirect Double Vault Optics: Dual-chamber vaulted reflectors redirect light to deliver volumetric, comfortable, and low-glare illumination (UGR <22).

• Multi-Wattage & 5-CCT Selectable: Field-tunable power levels (50W/60W/70W up to 8050 lumens) and color temperatures (3000K to 6500K) maximize job-site versatility.

• Pre-Installed Motion Sensor Port: Includes an integrated control port designed for quick snap-in occupancy and daylight sensors (sold separately).

• Universal 120-277V Driver with 0-10V Dimming: Seamlessly integrates with commercial lighting control systems for smooth continuous dimming.

• DLC & Wet-Location Certified: Meets strict utility rebate energy efficiency standards and is safe for high-humidity commercial applications.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 990379982628

• Master Case Pack Quantity: 1 Unit per Carton
