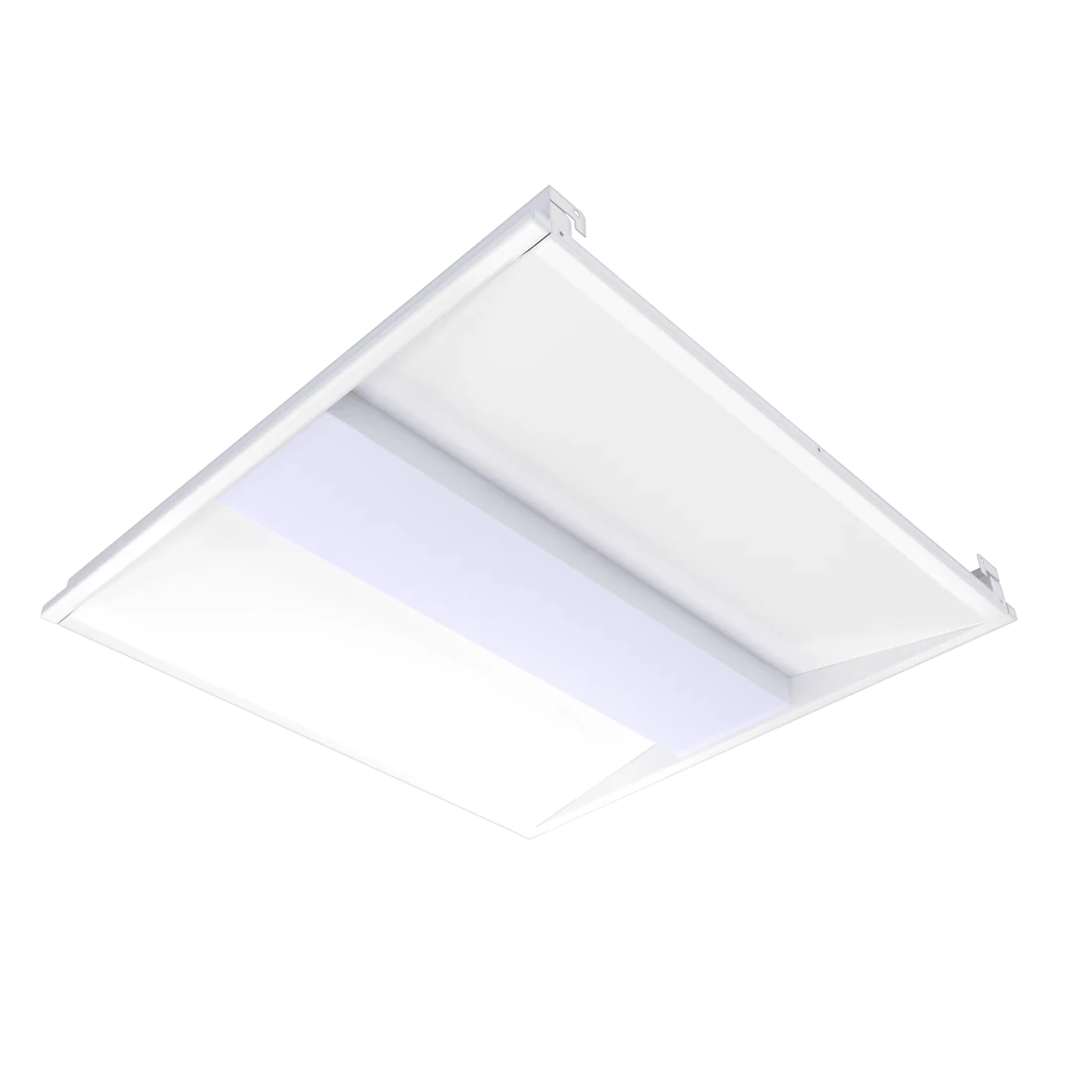

2X2 LED Square Center Basket Troffer | 6,500 Lumens Max | 120/277V | CCT Selectable | Neptune Series | Goodlite G-98010

Deliver sleek, modern ambient illumination across commercial office spaces, educational facilities, and healthcare settings with the Neptune 2x2 Square Center Basket Troffer LED Luminaire. Registered under product code G-98010 (Ordering Code: F/2X2/50W/SQ-CB/WS3/5CCT), this high-performance architectural lay-in fixture features an ultra-slim 2.36-inch housing depth combined with a clean square center basket design and a high-transmittance frosted diffuser. It provides soft, glare-free, and uniformly distributed lighting (UGR <22), making it an excellent choice for modern grid ceilings with tight plenum clearance above computer workstations, hallways, and open-office layouts.

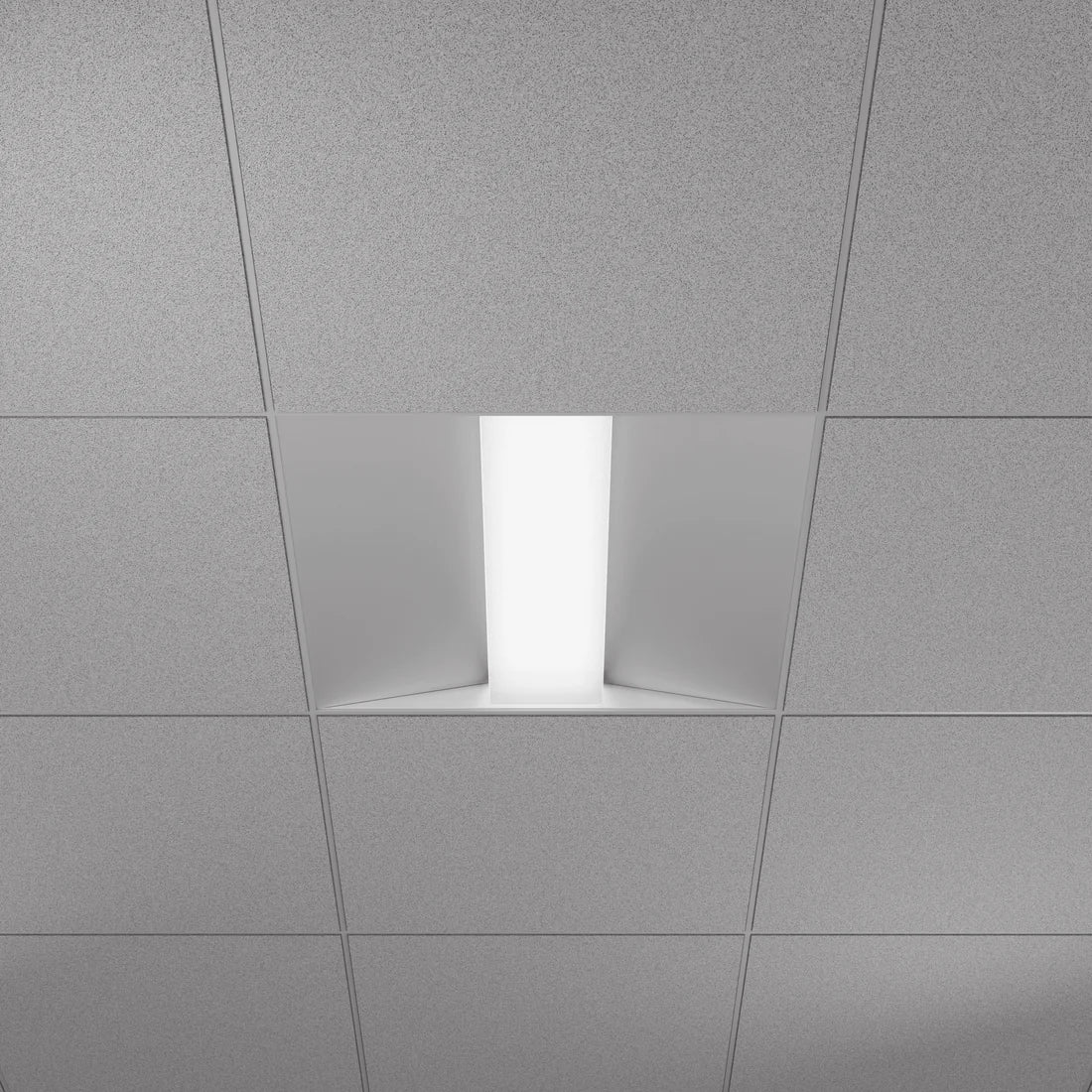

Designed for standard drop-in 2x2 T-bar ceiling grids, the luminaire offers maximum field flexibility with its integrated 3-stage selectable wattage switch (30W, 40W, and 50W)—delivering high-efficiency outputs of 3900, 5200, or 6500 lumens—and an internal 5-CCT selectable switch (3000K, 3500K, 4100K, 5000K, and 6500K). The multi-volt driver operates on line voltages from 120V to 277V with continuous 0-10V dimming. Additionally, the fixture comes equipped with a pre-installed motion sensor port (sensor sold separately, compatible with G-98210 or G-98211) to enable effortless plug-and-play occupancy and daylight harvesting controls. DLC and ETL listed, it is backed by a 5-year limited warranty.

Key Features:

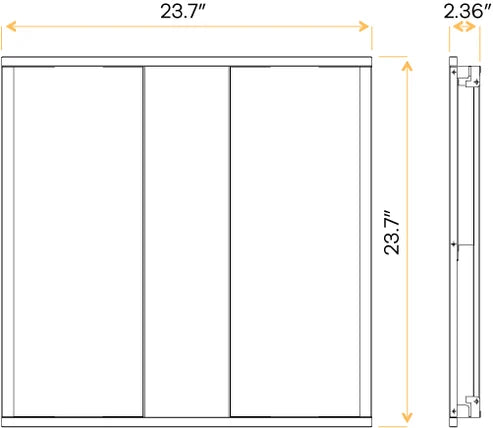

• Ultra-Slim 2.36" Depth: Compact profile allows easy lay-in installation in shallow T-bar ceiling plenums without obstruction.

• Multi-Wattage & 5-CCT Selectable: Field-tunable power levels (30W/40W/50W up to 6500 lumens) and color temperatures (3000K to 6500K) streamline inventory and adapt to diverse project requirements.

• Pre-Installed Motion Sensor Port: Integrated control socket accepts quick snap-in occupancy and daylight sensors (sold separately).

• Universal 120-277V Driver with 0-10V Dimming: Compatible with commercial building controls for continuous phase and 0-10V dimming management.

• DLC & Wet-Location Certified: Meets strict commercial performance standards and is safe for use in humid or moist indoor environments.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 990379980105

• Master Case Pack Quantity: 1 Unit per Carton
