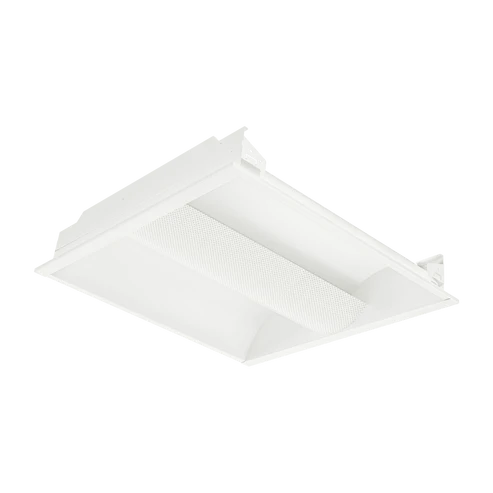

2X2 LED Indirect Center Net Basket Troffer | 5,750 Lumens Max | 120/277V | CCT Selectable | Neptune Series | Goodlite G-98000

Deliver glare-free, uniform ambient illumination across commercial office environments, educational facilities, and healthcare spaces with the Neptune 2x2 Indirect Center Net Basket Troffer LED Luminaire. Registered under product code G-98000 (Ordering Code: F/2X2/50W/ICNB/WS3/5CCT), this high-performance architectural lay-in fixture features an indirect center basket design paired with a high-transmittance frosted diffuser. By redirecting light upward into the curved reflector cavity before casting it down into the space, it eliminates harsh direct glare (UGR <22), providing soft, evenly distributed illumination ideal for computer workstations and high-occupancy open plans.

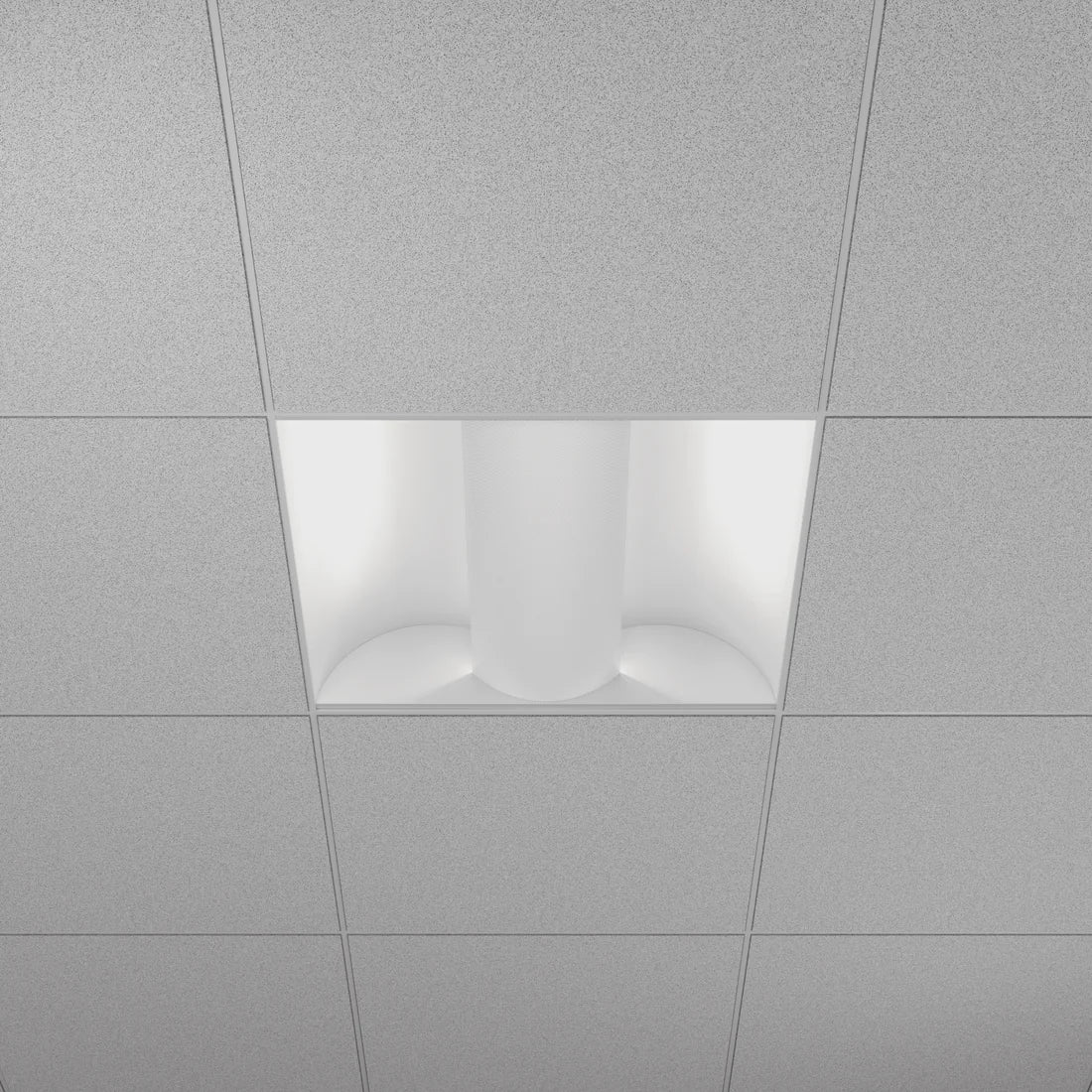

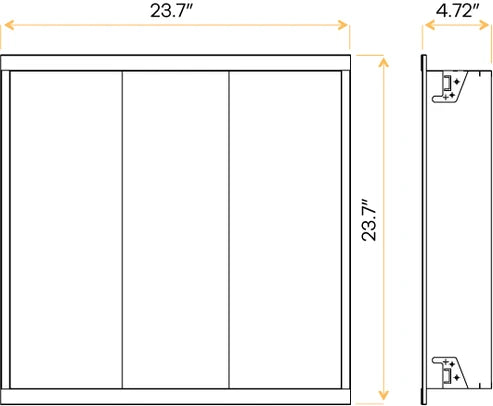

Designed for standard drop-in 2x2 T-bar ceiling grids, the fixture features a shallow 4.72-inch housing depth for quick lay-in installation. Field versatility is built into the unit, combining a 3-stage selectable wattage switch (30W, 40W, and 50W)—producing scalable outputs of 3450, 4600, or 5750 lumens—with an internal 5-CCT selectable switch (3000K, 3500K, 4100K, 5000K, and 6500K). The multi-volt driver operates on line voltages from 120V to 277V with standard continuous 0-10V dimming. Additionally, the luminaire comes equipped with a pre-installed motion sensor port (sensor sold separately, compatible with G-98210 or G-98211) to enable effortless plug-and-play occupancy or daylight harvesting controls. DLC and ETL listed, it is backed by a 5-year limited warranty.

Key Features:

• Indirect Center Net Basket Optics: Diffuses light through a center basket and curved reflector cavity to produce soft, low-glare illumination (UGR <22).

• Multi-Wattage & 5-CCT Selectable: Field-tunable power settings (30W/40W/50W up to 5750 lumens) and color temperatures (3000K to 6500K) maximize stocking and job-site flexibility.

• Pre-Installed Motion Sensor Port: Includes a dedicated control socket to accept quick snap-in occupancy and daylight sensors (sold separately).

• Universal 120-277V Driver with 0-10V Dimming: Seamlessly integrates into commercial building management systems for continuous dimming control.

• DLC & Wet-Location Certified: Meets stringent commercial efficiency standards and is safe for use in high-humidity or moist commercial environments.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 990379980006

• Master Case Pack Quantity: 1 Unit per Carton
