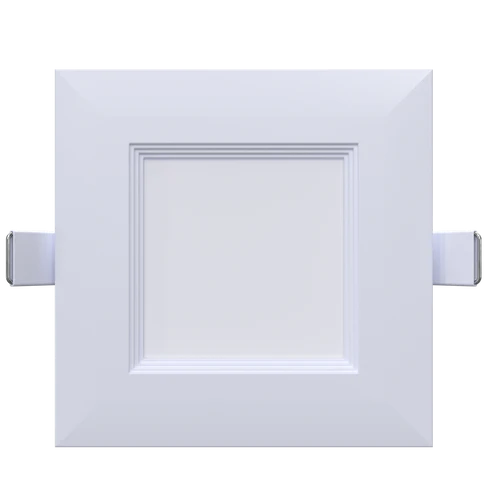

4 Inch Square Flushed Baffle Slim LED Downlight | 1K Lm | 120/277V | CCT Selectable | Fabulon Series | Goodlite G-97812

Achieve high-efficiency performance and an elegant, low-glare visual layout with the Fabulon 4" Square Flushed Baffle Slim LED Downlight. Registered under product code G-97812 (Ordering Code: SB4/12W/SQ/LED/5CCT), this architectural recessed luminaire features a unique stepped square baffle chamber that recedes into the ceiling plane. This geometric baffle profile breaks up sharp surface light transitions and dampens peripheral ceiling glare, delivering superior optical comfort compared to standard flat-panel disk lights. Finished in a clean, high-durability architectural white, the trimmed housing borders the ceiling cleanly, providing a polished architectural finish.

Engineered with a space-saving ultra-slim housing height of just 1.22 inches, this downlight slips easily into tight modern structural cavities, bypassing structural wood framing, joists, and low-clearance HVAC piping. Field-customizable lighting control is built right into the system via an integrated internal selector switch offering 5-CCT selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K). Powered by a high-efficacy 12-watt LED engine, it produces 1000 lumens of clean, uniform light pushed through a high-transmittance frosted polycarbonate diffuser at a wide 100° beam spread for excellent ambient coverage. The commercial-grade internal power system operates on an expanded 120-277V input spectrum and supports dual control architectures, running smoothly on either Triac line-voltage or 0-10V low-voltage dimming circuits down to 5%.

Key Features:

• Stepped Flushed Baffle Design: Recessed baffle walls reduce glare and soften visual transitions along the ceiling line.

• Ultra-Low 1.22" Clearance Profile: Slim chassis depth fits into minimal vertical plenum spaces where traditional deep recessed cans cannot go.

• 5-CCT Field-Selectable Switch: On-site adjustable color mapping toggles easily between warm ambient 2700K and crisp daylight 5000K settings.

• Universal 120-277V Multi-Dim Driver: True commercial system flexibility adapts to standard residential Triac line dimmers or commercial 0-10V structural automation grids.

• Wet-Location Rated Shielding: Robust moisture barriers permit code-compliant placement in humid bathrooms, outdoor soffits, shower zones, and covered commercial entryways.

Technical Specification Table

Logistics & Packaging Specifications

• UPC Barcode Registration: 990379978126

• Master Case Pack Quantity: 18 Units per Carton
