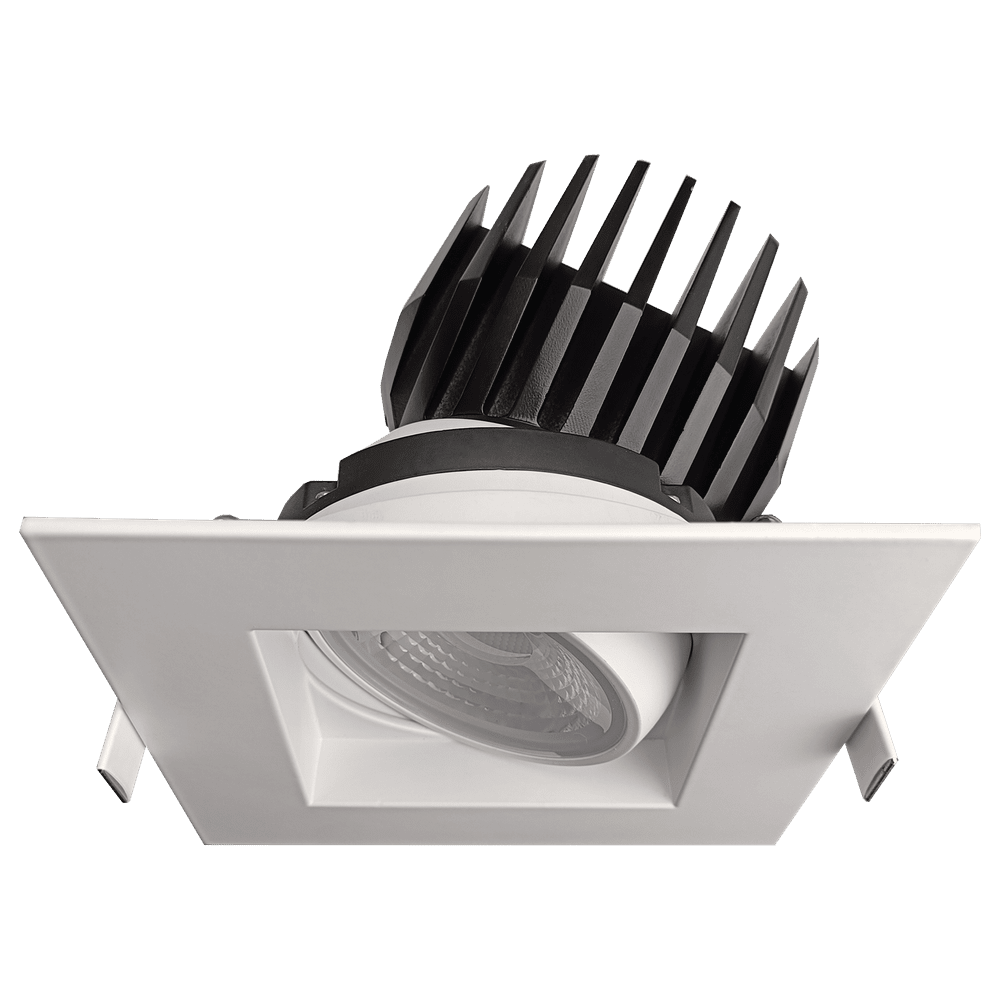

Saturn 4" High Output Square Regressed Gimbal LED Downlight – 20W, 5CCT Selectable (White / Black)

The Saturn 4-inch High Output Square Regressed Gimbal LED Downlight is a premium recessed lighting fixture designed to provide powerful directional illumination with precise adjustability and modern architectural aesthetics. Featuring a deep regressed square gimbal design, this fixture minimizes glare while delivering focused lighting ideal for highlighting architectural elements, retail displays, artwork, and task areas.

With a 20W LED module producing 1750 lumens, this high-output fixture provides bright, energy-efficient illumination suitable for commercial, hospitality, retail, and upscale residential lighting applications. The high CRI (>90) ensures exceptional color accuracy, making it ideal for environments where product presentation, décor, and visual clarity are important.

The integrated 5CCT selectable technology allows installers to choose between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures, offering maximum flexibility to match different design styles and lighting needs—from warm ambient lighting to bright task illumination.

For superior adjustability, the fixture features 30° tilt and full 360° rotation, enabling precise aiming of light exactly where it is needed. The 60° beam spread provides balanced coverage for both accent and general lighting applications.

Engineered for professional installations, the fixture operates on 120–277V universal voltage and supports Triac and 0–10V dimming, allowing seamless integration with modern lighting control systems. The clip-in mounting design ensures fast and secure installation in recessed ceilings.

Built for durability and versatility, the fixture is IC rated for insulated ceilings, wet location rated, and FT6 plenum rated, making it suitable for bathrooms, kitchens, covered outdoor ceilings, soffits, and commercial ceiling systems.

Certified ETL Listed and Title 24 compliant, and backed by a 3-year warranty, the Saturn 4" HO Square Regressed Gimbal LED Downlight offers a reliable, energy-efficient lighting solution for modern architectural spaces.

Available Finishes

Technical Specifications

General Specifications

• Product Name: Saturn 4" HO Square Regressed Gimbal LED Downlight

• Shape: Square

• Style: Trimmed

• Size: 4 Inch

• Finish Options: White / Black

• Diffuser: Clear

• Number of Lights: 1

Dimensions

• Cutout Size: 4.55"

• Outside Dimensions (OD): 5.74"

• Height: 5.00"

Mounting

• Installation Type: Clip-in

Light Performance

• Wattage: 20W

• Lumens: 1750 lm

• CRI: >90

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• Beam Angle: 60°

Adjustability

• Tilt Angle: 30°

• Rotation: 360°

Electrical Specifications

• Input Voltage: 120–277V

• Output Current: 450mA

• Dimming Type: Triac or 0–10V Dimming Compatible

• Plenum Rated: FT6

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certification: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 12 Units

Warranty

• 3-Year Manufacturer Warranty
