3" Quadruple Head Trimless Multiple LED Downlight | 2,800Lm | CCT Selectable | Goodlite G-97126/27

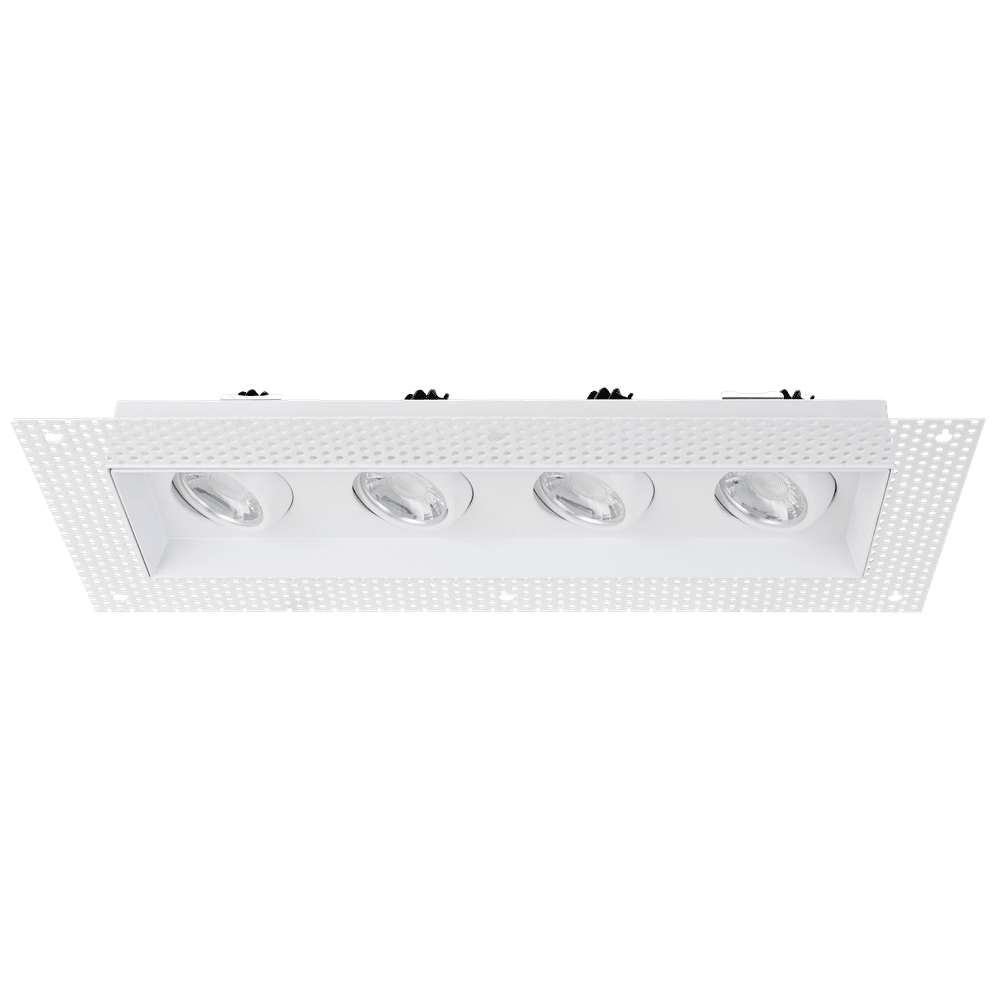

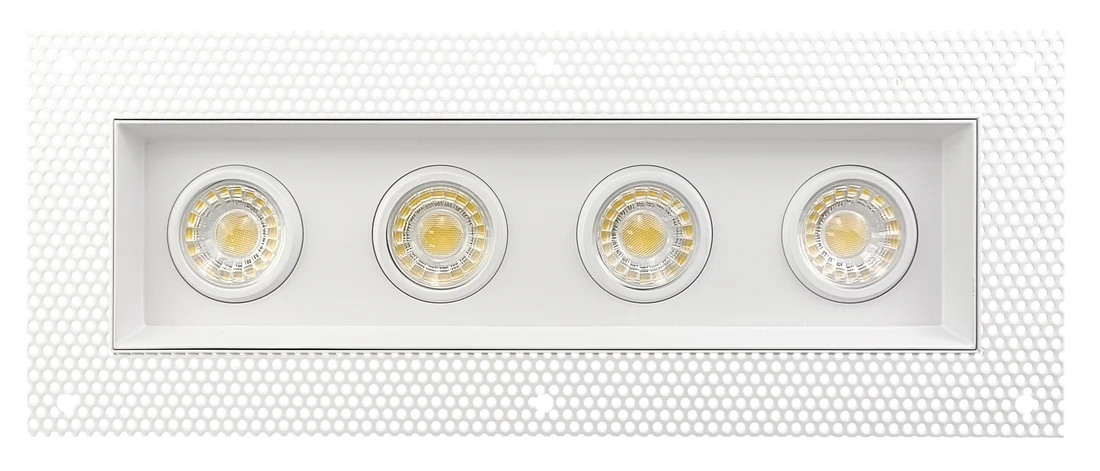

Achieve seamless ceiling integration and multi-directional architectural illumination with the Saturn Multiple 3" Four-Head Trimless Regressed Gimbal LED Recessed Light Series. Designed for a flush, rimless look, these linear four-light fixtures feature mud-in mounting frames that plaster directly into drywall, eliminating visible trims for a minimalist finish. Housed within each frame are four independently adjustable 3-inch regressed gimbal modules, allowing precise, multi-angle light distribution across galeries, hospitality spaces, corridors, and high-end residential interiors.

Consuming a total of 30W, the fixture delivers a powerful 2800 total lumens (700 lumens per head) with a focused 40° beam spread per module. Each deep regressed head features full directional versatility with 360° horizontal rotation and a 30° vertical tilt angle, positioning optics deep within the housing to shield sightlines and significantly reduce glare. Integrated 5-CCT Field Selectability lets installers tune the fixture on-site between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures via a switch on the junction box.

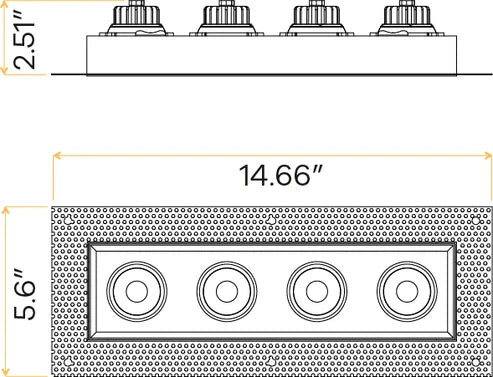

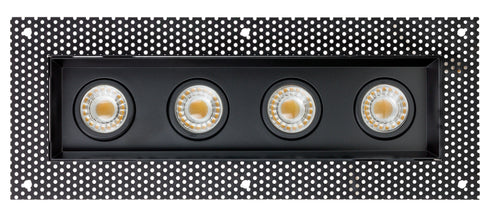

Engineered for demanding commercial and high-end residential applications, both models feature a commercial-grade 120-277V AC driver with dual Triac and 0-10V dimming protocols (100% to 5% range) and FT6 plenum-rated wiring. Available with inner module housings in clean White (G-97126) and dramatic Black (G-97127), these fixtures fit a 3.35" x 12.50" cutout with a shallow 2.65" depth. Certified California Title 24 Compliant and ETL Listed, they are IC-rated for direct contact with insulation, approved for Wet Locations, and backed by a 3-year warranty.

Key Features:

• Trimless Mud-In Mounting: Rimless plaster-in frame creates a seamless transition into drywall ceilings.

• Quad Independent Gimbal Modules: Four 3" regressed heads with 360° rotation and 30° tilt for targeted multi-directional lighting.

• Deep Regressed Anti-Glare Optics: Recessed modules shield LED engines to eliminate sightline glare while outputting 2800 total lumens.

• 5-CCT Field Selectable: Customize color temperature on-site between 2700K, 3000K, 3500K, 4100K, and 5000K.

• Universal Voltage & Commercial Specifications: Operates on 120-277V AC with Triac and 0-10V dimming support (100%-5%) and FT6 plenum cable rating.

• Wet Location & IC Rated: Safe for direct insulation contact and damp/wet zones; ETL Listed and Title 24 Compliant with a 3-year warranty.

Technical Specification Comparison Table

Packaging & Logistics Specifications

• Master Pack Quantity: 6 Pieces (Both Models)

• Barcodes:

  • White (G-97126): 024431971265

  • Black (G-97127): 024431971272

• Included Accessories: Integrated Remote Junction Box / Universal Driver & Mud-In Trimless Mounting Frame
