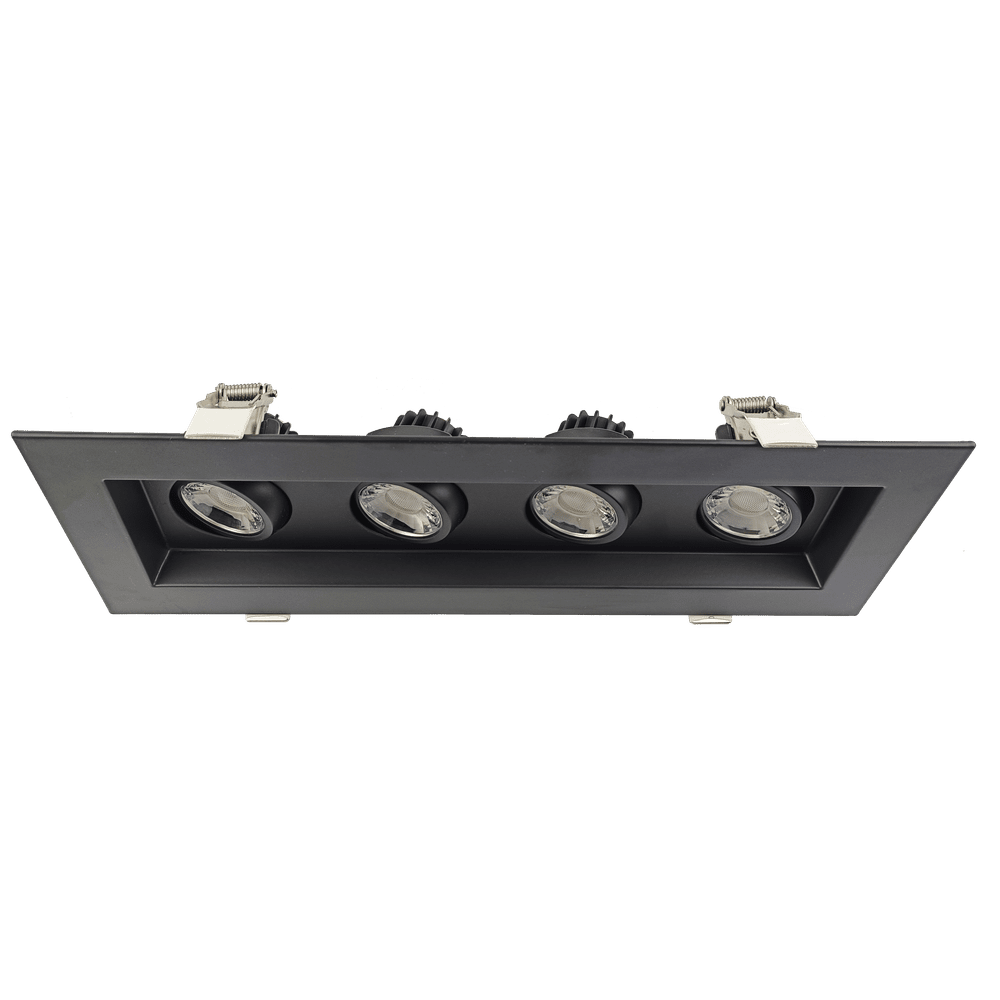

Saturn Multiple 3" Four-Head Regressed Gimbal LED Downlight – 30W, 5CCT Selectable (White / Black)

The Saturn Multiple 3-inch Four-Head Regressed Gimbal LED Downlight is a compact multi-head recessed lighting fixture engineered for directional architectural lighting in commercial and residential spaces. Designed with four independently adjustable regressed gimbal heads, this fixture allows precise illumination of multiple focal points while reducing glare through its deep recessed optical design.

Each LED head produces 700 lumens, delivering a combined output of 2800 lumens, making it ideal for retail displays, art galleries, hospitality environments, showrooms, offices, and modern residential interiors where controlled accent lighting is essential.

This fixture includes 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), allowing installers and lighting designers to easily match the lighting tone to different environments and design requirements. With a CRI greater than 90, the fixture ensures accurate color rendering for merchandise, décor, and architectural elements.

The regressed gimbal design provides a 30° tilt adjustment and a 40° beam spread, enabling targeted lighting while maintaining visual comfort and minimizing glare.

Operating at 30W, the fixture supports Triac and 0–10V dimming, ensuring compatibility with a wide range of lighting control systems used in both residential and commercial installations.

The clip-in mounting system enables quick and secure installation, while the FT6 plenum rating allows installation in air-handling ceiling spaces. With a wet location rating, this fixture can also be installed in bathrooms, covered outdoor ceilings, kitchens, and other moisture-exposed areas.

The fixture is IC rated, allowing safe installation in insulated ceilings. Certified ETL Listed and Title 24 compliant, and backed by a 3-year warranty, the Saturn Multiple 3" Four-Head Regressed Gimbal LED Downlight delivers reliable performance, energy efficiency, and architectural lighting flexibility.

Available Finishes

Technical Specifications

General Specifications

• Product Name: Saturn Multiple 3" Four-Head Regressed Gimbal LED Downlight

• Shape: Multiple

• Style: Trimmed

• Size: 3 Inch

• Finish Options: White / Black

• Diffuser: Clear

• Number of Lights: 4

Dimensions

• Cutout Size: 3.35" × 12.50"

• Outside Dimensions (OD): 5.08" × 14.07"

• Height: 2.70"

Mounting

• Installation Type: Clip-in

Light Performance

• Wattage: 30W

• Lumens per Head: 700 lm

• Total Lumens: 2800 lm

• CRI: >90

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• Beam Angle: 40° (Default)

Adjustability

• Tilt Angle: 30°

Electrical Specifications

• Input Voltage: 120–277V

• Output Current: 750mA

• Plenum Rated: FT6

• Dimming: Triac or 0–10V Dimming Compatible

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certification: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 6 Units

Warranty

• Warranty: 3 Years
