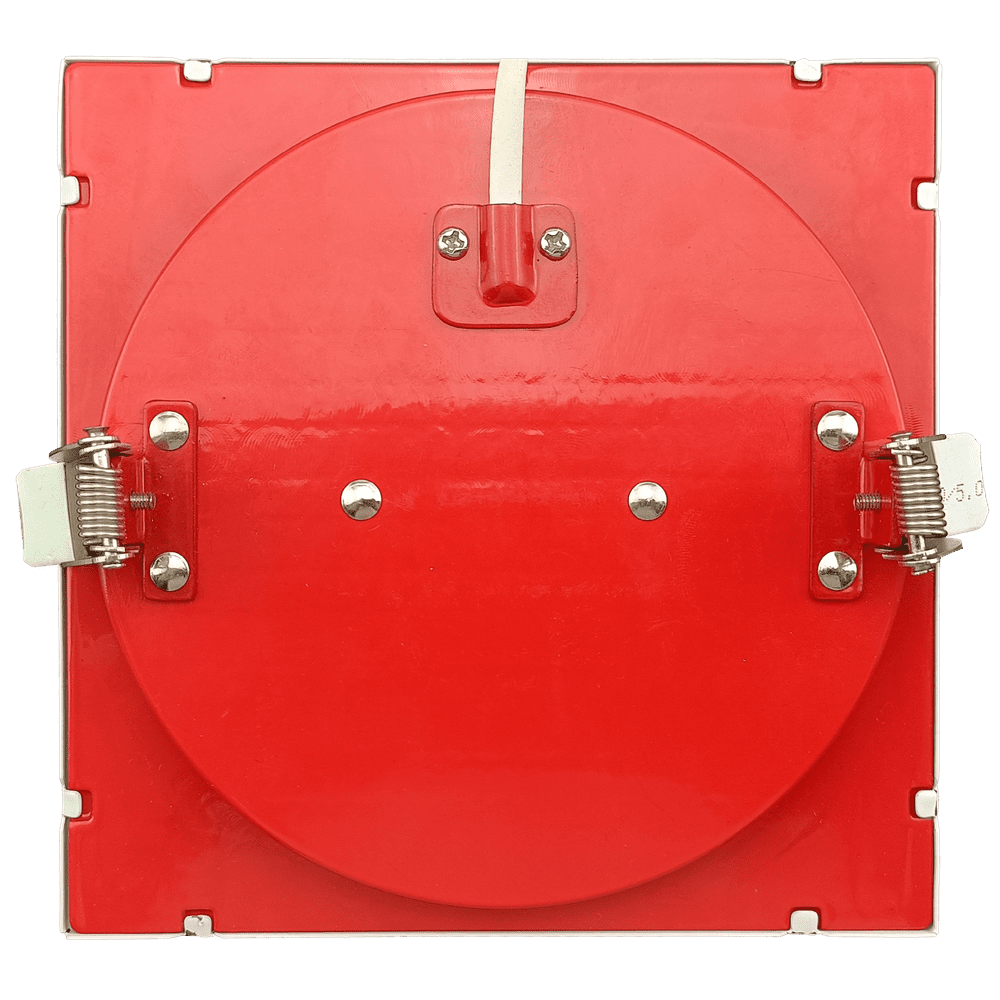

5″ Fire Rated Square Flushed Slim LED Downlight – 15W 5CCT Wet Location

The 5″ fire rated square flushed slim LED downlight delivers high-performance recessed lighting with certified fire protection and a clean architectural finish. Designed for ceilings requiring fire-rated assemblies, this 2-hour fire rated fixture meets UL 263 and ASTM E119 standards, maintaining ceiling integrity while providing efficient illumination.

Its ultra-slim, square trimmed design sits nearly flush with the ceiling surface, creating a modern, low-profile appearance ideal for residential, multifamily, hospitality, and commercial spaces. The selectable 5-CCT technology (2700K–5000K) allows installers to adjust color temperature on site, reducing inventory requirements and ensuring lighting consistency across projects.

Producing 1200 lumens at 15W with high CRI >90 and a wide 100° beam spread, this fire rated recessed light delivers bright, accurate, and uniform illumination. Compatible with both TRIAC and 0-10V dimming systems and rated for wet locations and IC installations, it is suitable for bathrooms, soffits, exterior ceilings, and insulated ceilings.

Engineered for quick installation, the clip-in mounting system fits double 5/8″ Sheetrock fire-rated ceilings, making it an ideal solution for code-compliant fire-rated recessed lighting applications.

Technical Specifications

General

• Product Code: G-97023

• Description: S5/15W/SQ/LED/5CCT FR

• Shape: Square

• Style: Trimmed / Flushed Slim

• Size: 5″

• Finish: White

• Diffuser: Frosted

• Mounting: Clip-in

• Clips Compatible: Double 5/8″ Sheetrock

Dimensions

• Cutout: 5.10″

• Outside Dimension: 5.70″

• Height: 1.67″

Lighting

• Wattage: 15W

• Lumens: 1200 lm

• CCT Selectable: 2700K / 3000K / 3500K / 4100K / 5000K

• CRI: >90

• Beam Angle: 100°

Electrical

• Voltage: 120–277V

• Output Current: 350 mA

• Dimming: TRIAC or 0-10V

Compliance & Ratings

• Fire Rating: 2 Hours

• Standards: UL 263 & ASTM E119

• Certification: ETL Listed

• Location Rating: Wet Location

• IC Rated: Yes

• Warranty: 3 Years

Packaging

• Master Pack: 18

• Barcode: 024431970237

Key Features

• 2-hour fire rated recessed LED downlight

• Slim square flushed architectural design

• Selectable 5-CCT (2700K–5000K)

• 1200 lm high-output with CRI >90

• TRIAC & 0-10V dimming compatible

• Wet location & IC rated

• Fits double 5/8″ fire-rated ceilings

• Fast clip-in installation
