The Fire Rated 4-inch Square Flushed Slim LED Light combines modern architectural design with advanced fire protection, making it an ideal lighting solution for residential, commercial, and multi-family construction projects that require fire-rated ceiling systems.

Certified to UL 263 and ASTM E119 fire standards, this fixture provides up to 2 hours of fire resistance, helping maintain the integrity of fire-rated ceilings while delivering efficient LED lighting performance.

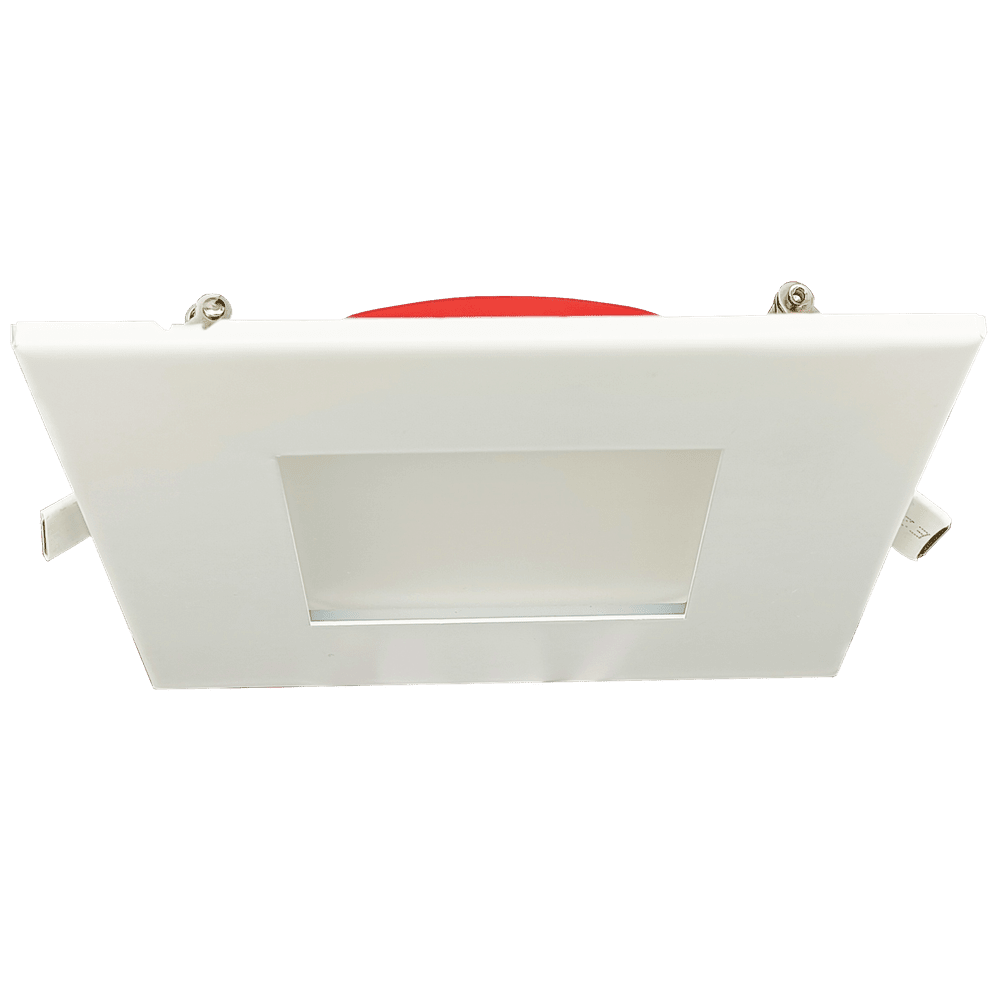

Designed with a compact square profile and ultra-slim 1.67-inch depth, the fixture integrates seamlessly into ceilings, creating a clean and contemporary appearance. The frosted diffuser produces smooth, glare-free illumination while distributing light evenly through a 100° wide beam angle.

The integrated LED system delivers 850 lumens while consuming only 12 watts, ensuring excellent energy efficiency and long-term reliability. With Selectable 5CCT technology, users can easily adjust the color temperature between 2700K, 3000K, 3500K, 4100K, and 5000K to match different lighting environments.

Compatible with Triac and 0–10V dimming systems, this fixture provides flexible brightness control for residential, hospitality, office, or commercial lighting applications.

The fixture is IC rated, safe for insulated ceilings, and wet location rated, allowing installation in bathrooms, kitchens, soffits, and covered outdoor spaces. Its clip-in mounting system is designed for double 5/8" sheetrock, enabling fast and secure installation in fire-rated ceiling assemblies.

Combining safety, efficiency, and modern design, this fire-rated square LED downlight is an excellent choice for projects that require both code compliance and premium lighting performance.

Key Features

• 2-hour fire rated LED fixture (UL 263 & ASTM E119 certified)

• Modern square slim flush design

• Selectable 5CCT color temperatures (2700K / 3000K / 3500K / 4100K / 5000K)

• Energy-efficient 12W LED output

• 850 lumens brightness with CRI >90

• Wide 100° beam angle for uniform illumination

• Triac or 0–10V dimming compatibility

• Wet location rated for versatile installations

• IC rated for insulated ceilings

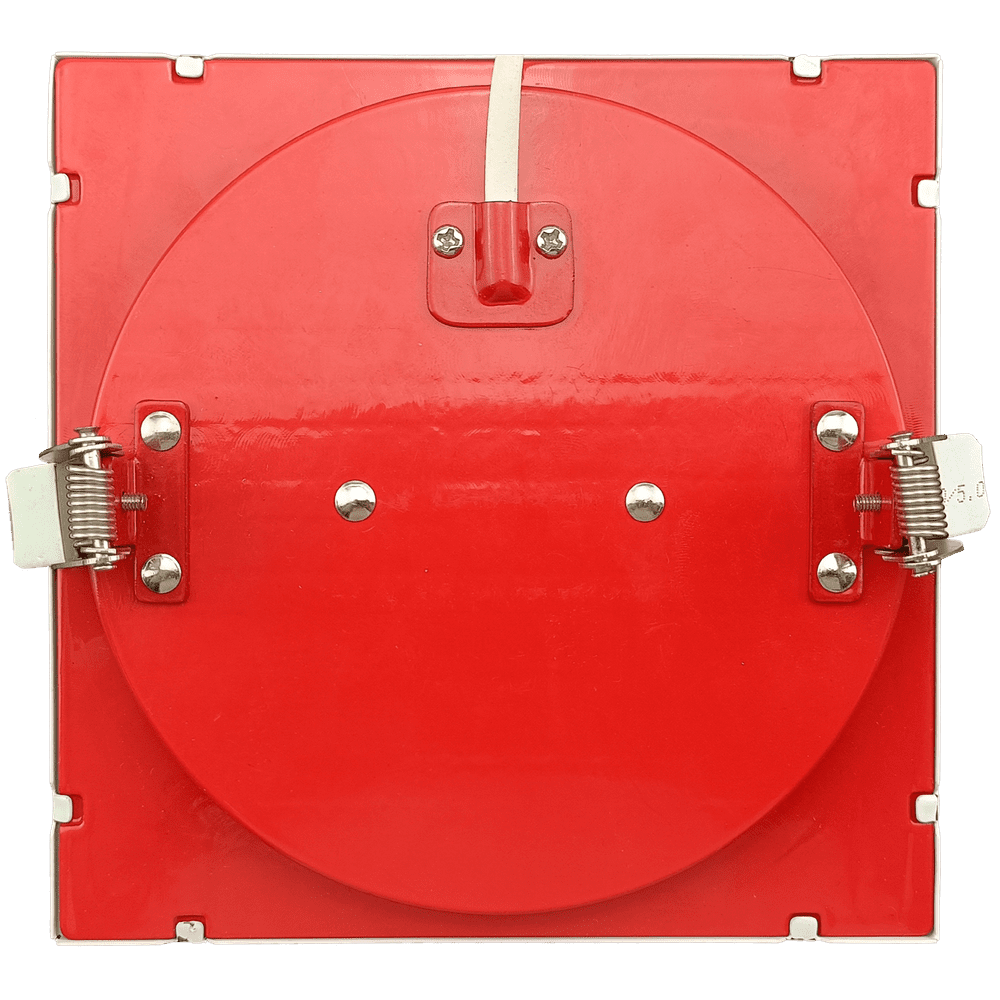

• Quick clip-in mounting for double 5/8" sheetrock

Technical Specifications

General Specifications

• Product Name: Fire Rated Square Slim LED

• Product Code: G-97022

• Shape: Square

• Style: Trimmed / Flush

• Size: 4 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

• Mounting: Clip-in

Dimensions

• Cutout: 3.95"

• Outside Dimension: 4.92"

• Height: 1.67"

• Compatible Ceiling: Double 5/8" Sheetrock

Lighting Specifications

• Lumens: 850 lm

• CRI: >90

• Beam Angle: 100°

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

Electrical Specifications

• Wattage: 12W

• Voltage: 120–277V

• Output Current: 270mA

• Dimming Type: Triac or 0–10V Dimming

Compliance & Certifications

• Fire Rating: 2 Hours

• Fire Certification: UL 263 & ASTM E119

• Location Rating: Wet Location

• IC Rated: Yes

• Certification: ETL Listed

• Warranty: 3 Years
