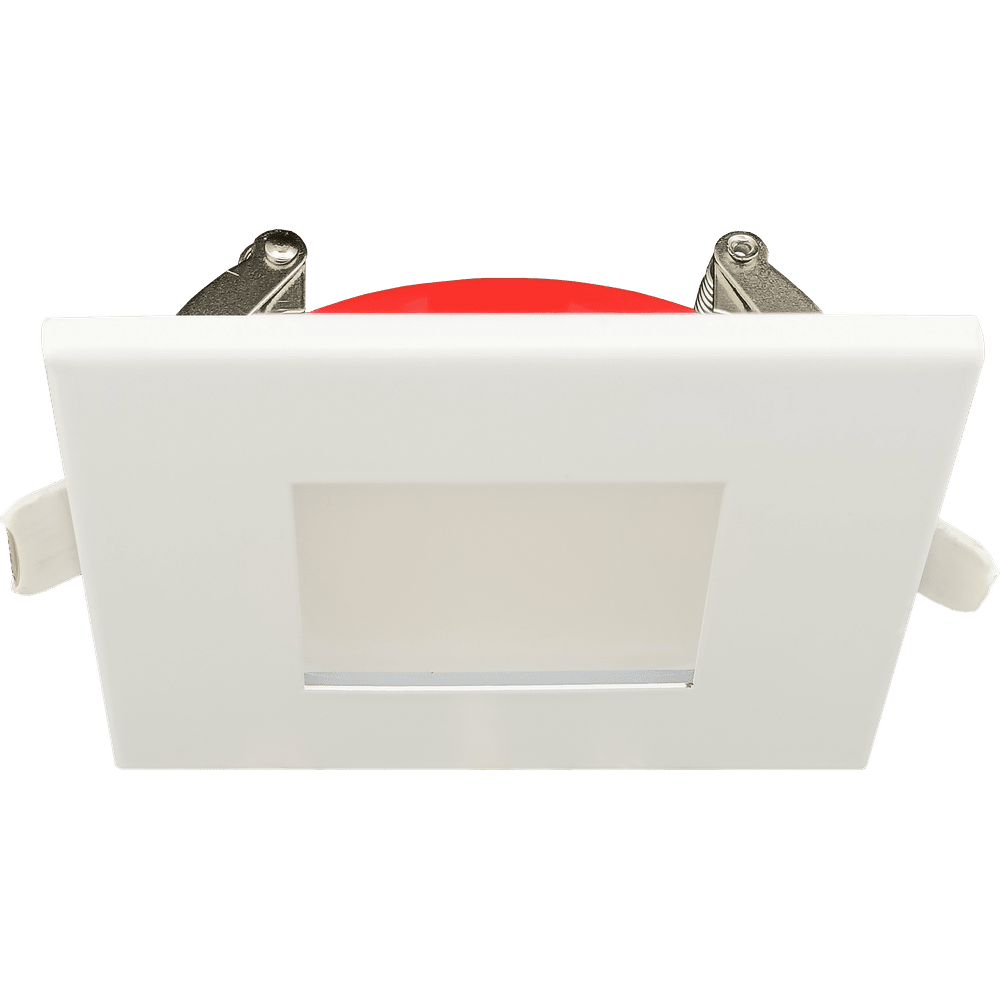

3" Square Flushed Slim LED Downlight | 550 Lumens | CCT Selectable | Goodlite G-97021

Upgrade residential and commercial ceiling installations with the 3" Fire-Rated Square Flushed Slim LED Downlight (G-97021). Engineered to meet strict building safety codes, this compact recessed luminaire features an integrated 2-hour fire rating certified under UL 263 and ASTM E119 standards. Its fire-resistive housing eliminates the need for bulky traditional fire cans, providing a safe, streamlined fixture designed to prevent the rapid spread of heat and flame through ceiling assemblies.

Operating at 8W on a universal 120-277V input, this energy-efficient LED downlight delivers 550 lumens of smooth illumination through a frosted diffuser with a wide $100^\circ$ beam spread and a high color rendering index (CRI >90). Equipped with 5CCT Selectable technology, installers can switch between five color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K) via an integrated selector switch to perfectly match any interior ambiance. The fixture offers versatile control options, supporting both Triac and 0-10V dimming from 100% down to 5%.

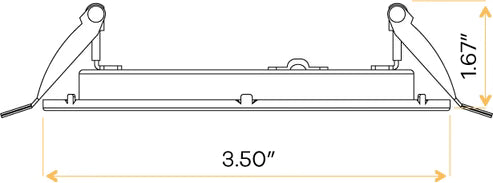

Designed for direct clip-in mounting into a 2.85" ceiling cutout, the unit is compatible with double 5/8" sheetrock ceiling structures. IC rated for direct contact with thermal insulation and certified for wet location applications, it is ideal for multi-family residential complexes, commercial corridors, hospitality suites, and outdoor covered soffits.

Key Features:

• 2-Hour Integrated Fire Rating: Certified under UL 263 and ASTM E119 to maintain ceiling fire barrier integrity without requiring external fire enclosure boxes.

• 5CCT Field Selectable: Easily switch between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures on site.

• Universal Voltage & Dual Dimming: Operates on 120-277V AC circuits with support for both Triac phase-cut and 0-10V analog dimming control (100%–5%).

• Wet Location & IC Rated: Safe for direct insulation contact (IC Rated) and suitable for wet location installations including bathrooms and exterior soffits.

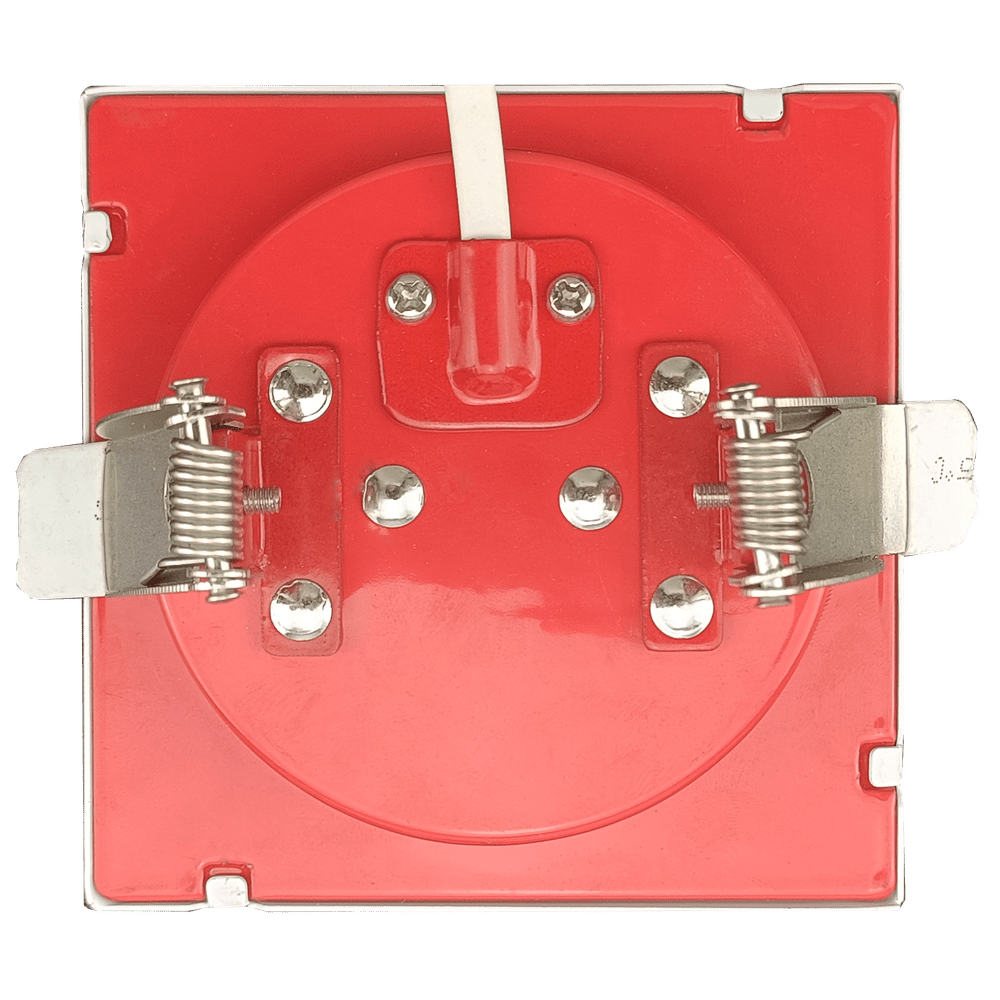

• Sheetrock Compatible: Equipped with heavy-duty mounting clips designed for seamless installation in double 5/8" sheetrock ceilings.

Technical Specification Table

Product Logic & Ordering Catalog Matrix

Packaging & Ordering Information

• Master Pack Quantity: 18 Units

• UPC Barcode: 024431970213

• Included Components:

  • Square slim LED module with integrated white trim.

  • Remote LED driver / junction box assembly with CCT selector switch.

  • Double 5/8" sheetrock compatible mounting spring clips.
