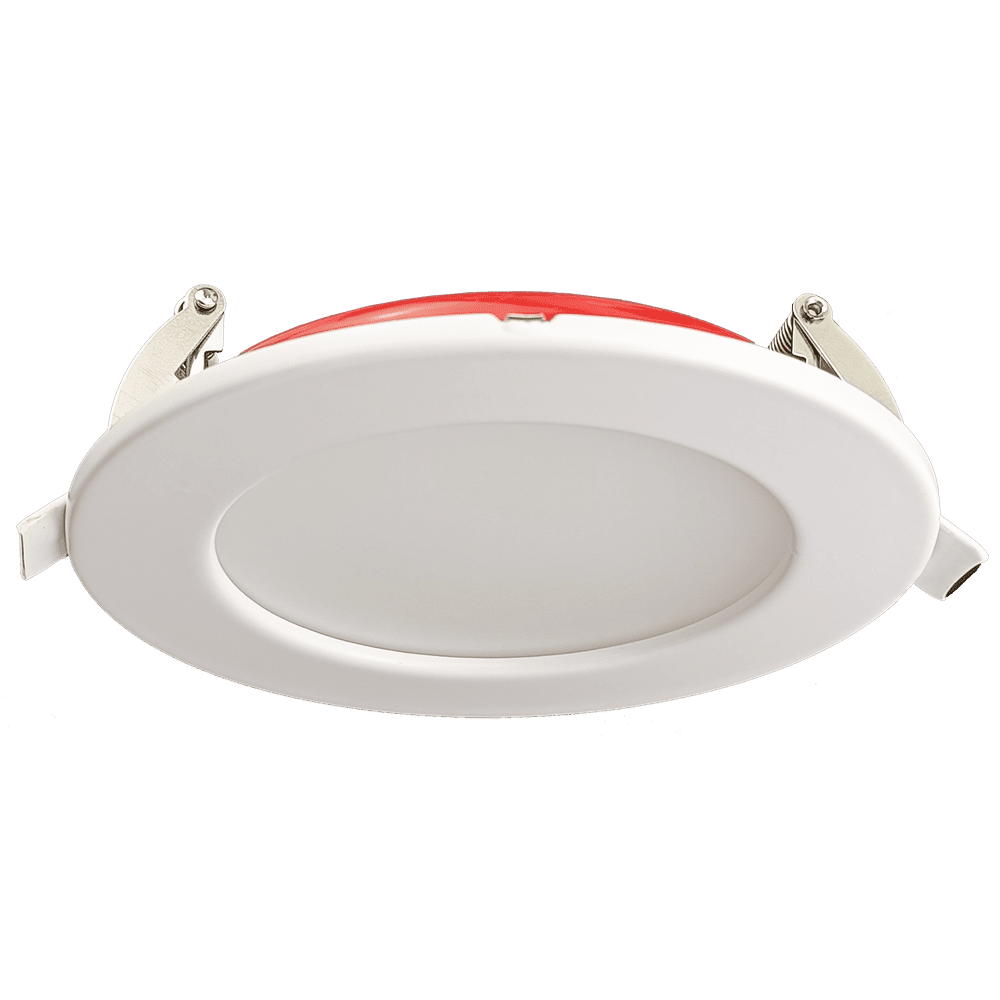

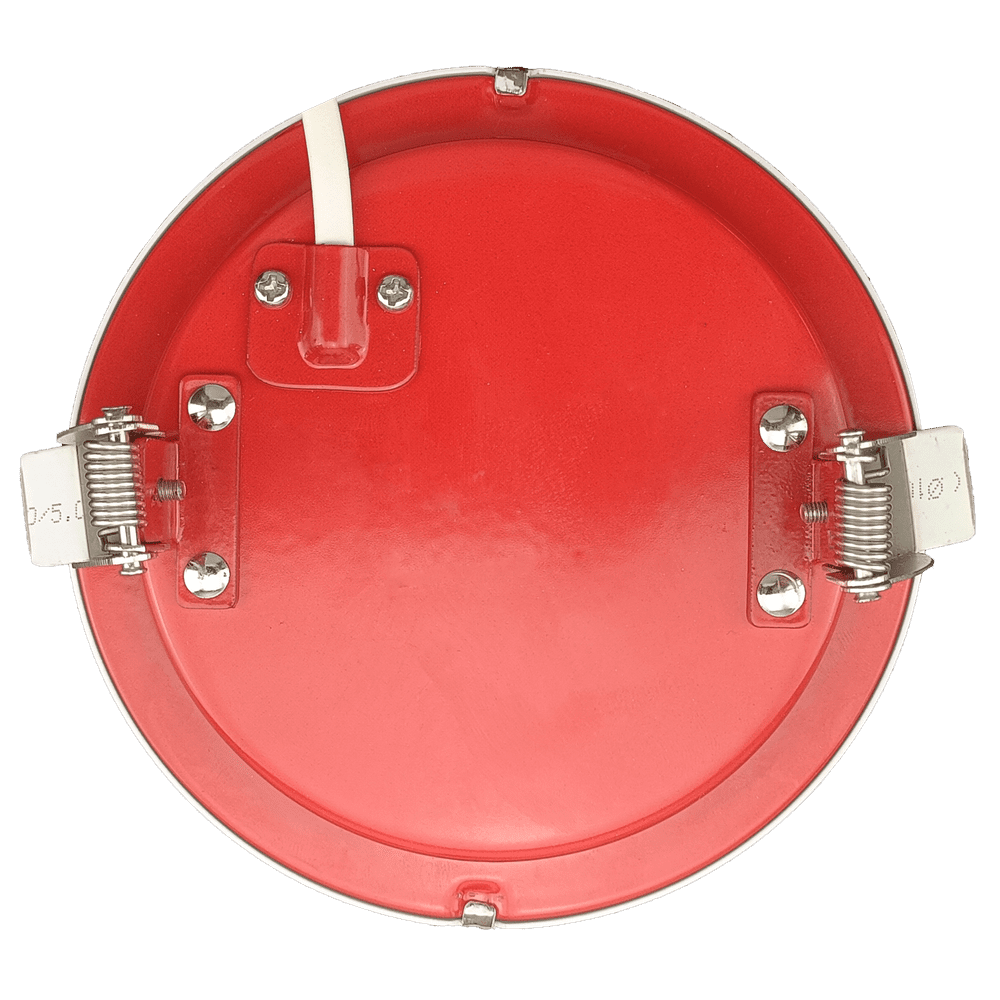

4" Fire Rated Round Flushed Slim LED Downlight – 12W Selectable CCT, Wet Location, 120-277V

The 4-inch Fire Rated Round Flushed Slim LED Downlight is a high-performance recessed lighting solution designed for projects requiring fire-rated safety compliance without sacrificing modern aesthetics or lighting quality. Engineered with a low-profile flushed trim design, this fixture integrates seamlessly into ceilings while maintaining the integrity of fire-rated assemblies.

This fixture is 2-hour fire rated and certified to UL 263 and ASTM E119 standards, meaning it helps maintain the fire-resistance rating of the ceiling without requiring additional fire-rated housings or accessories. Its innovative design makes it ideal for multifamily residential buildings, hotels, hospitals, commercial properties, and code-compliant construction projects.

With 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), installers and designers can easily adjust lighting tone to match different environments—from warm residential lighting to bright commercial illumination.

Delivering 925 lumens with a CRI above 90, this fixture provides excellent brightness and color accuracy, making it suitable for kitchens, bathrooms, hallways, offices, and retail environments. The 100° beam angle ensures smooth, wide light distribution while minimizing glare.

Built for versatility, the fixture supports Triac and 0-10V dimming, allowing compatibility with a wide range of dimming systems used in both residential and commercial applications.

The IC-rated and wet location rated construction allows installation directly in insulated ceilings and moisture-prone areas such as bathrooms, soffits, and covered outdoor spaces.

With its clip-in mounting system compatible with double 5/8" sheetrock, installation is fast and secure, making the 4" Fire Rated Slim Downlight a reliable, code-compliant lighting solution for modern construction projects.

Technical Specifications

General Specifications

• Product Name: 4" Fire Rated Round Flushed Slim LED Downlight

• Product Code: G-96922

• Model: S4/12W/R/LED/5CCT FR

• Shape: Round

• Style: Trimmed / Flushed

• Size: 4 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

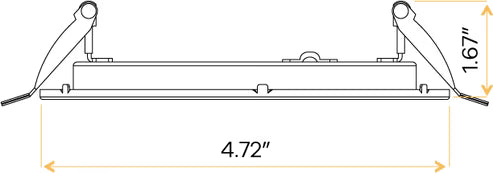

Dimensions

• Cutout Size: 3.90"

• Outside Diameter (OD): 4.72"

• Height: 1.67"

Mounting

• Installation Type: Clip-in Mounting

• Ceiling Compatibility: Double 5/8" Sheetrock

Light Performance

• Wattage: 12W

• Lumens: 925 lm

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• CRI: >90

• Beam Angle: 100°

Electrical Specifications

• Input Voltage: 120-277V

• Output Current: 270mA

• Dimming: Triac or 0-10V Dimming Compatible

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Fire Rating: 2 Hours

• Fire Certification: UL 263 & ASTM E119

• Certification: ETL Listed

Packaging Information

• Master Pack: 18 Units

• Barcode: 024431969224

Warranty

• Warranty: 3 Years
