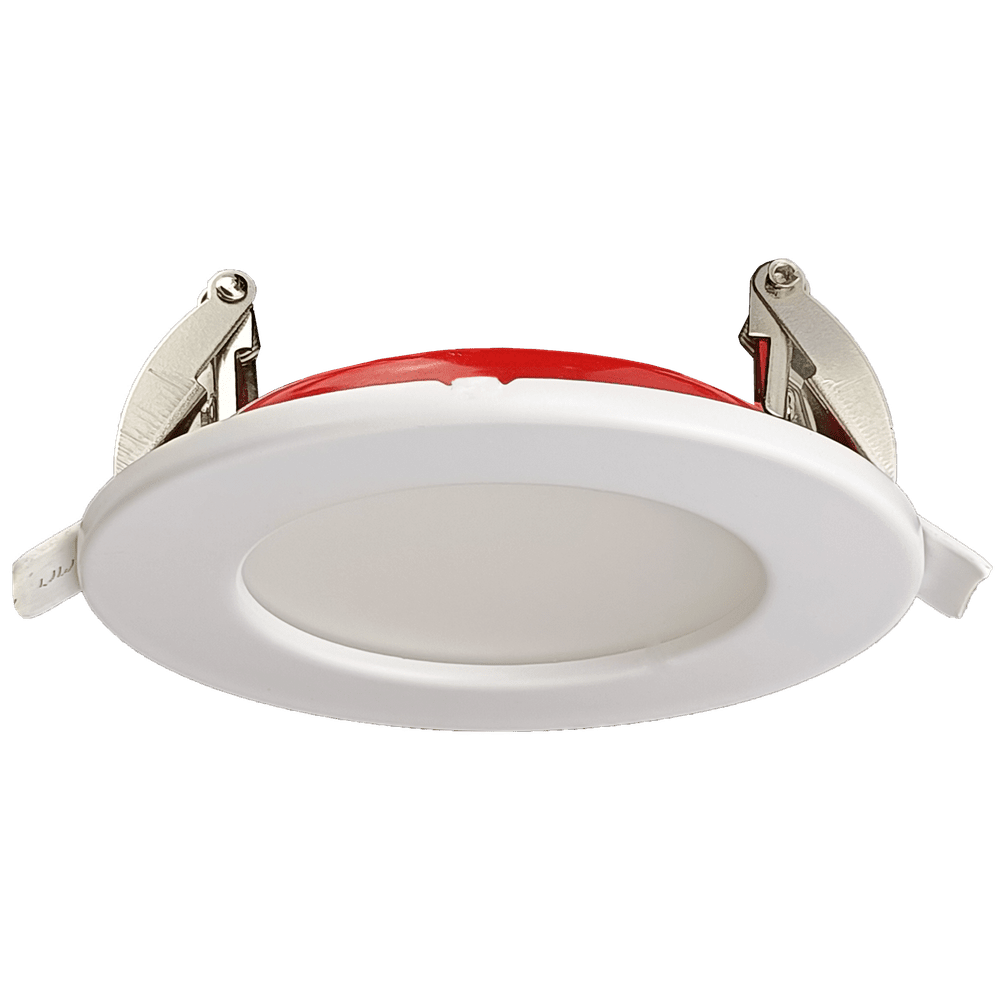

3" Fire Rated Round Flushed Slim LED Downlight – 8W Selectable CCT, Wet Location, 120-277V

The 3-inch Fire Rated Round Flushed Slim LED Downlight is a compact and high-performance recessed lighting solution engineered for projects that require code-compliant fire protection and modern architectural lighting. Designed with a low-profile flushed trim, this fixture blends seamlessly into ceilings while maintaining the fire-resistance integrity of rated ceiling assemblies.

Certified for 2-hour fire resistance according to UL 263 and ASTM E119 standards, this fire-rated downlight eliminates the need for additional fire-rated housings. It is an ideal solution for multifamily housing, apartments, hotels, hospitals, offices, and commercial buildings where fire safety compliance is critical.

The fixture features 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), allowing installers and designers to easily adjust lighting tone to match different environments—from warm residential lighting to bright task or commercial illumination.

Producing 600 lumens with a CRI greater than 90, this downlight delivers excellent brightness and accurate color rendering while maintaining energy efficiency. The 100° beam angle provides smooth and uniform light distribution for general illumination.

Designed for versatile installations, the fixture supports Triac and 0-10V dimming, making it compatible with a wide range of residential and commercial dimming systems.

With IC-rated construction and a wet location rating, this downlight can be safely installed in insulated ceilings, bathrooms, soffits, and covered outdoor areas. The clip-in mounting system compatible with double 5/8" sheetrock ensures quick, secure installation for contractors and electricians.

The 3" Fire Rated Slim LED Downlight delivers the perfect combination of compact design, fire safety compliance, flexible lighting control, and professional performance for modern construction and renovation projects.

Technical Specifications

General Specifications

• Product Name: 3" Fire Rated Round Flushed Slim LED Downlight

• Product Code: G-96921

• Model: S3/8W/R/LED/5CCT FR

• Shape: Round

• Style: Trimmed / Flushed

• Size: 3 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

Dimensions

• Cutout Size: 2.85"

• Outside Diameter (OD): 3.70"

• Height: 1.67"

Mounting

• Installation Type: Clip-in Mounting

• Ceiling Compatibility: Double 5/8" Sheetrock

Light Performance

• Wattage: 8W

• Lumens: 600 lm

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• CRI: >90

• Beam Angle: 100°

Electrical Specifications

• Input Voltage: 120-277V

• Output Current: 190mA

• Dimming: Triac or 0-10V Dimming Compatible

Compliance & Safety

• Location Rating: Wet Location

• IC Rated: Yes

• Fire Rating: 2 Hours

• Fire Certification: UL 263 & ASTM E119

• Certification: ETL Listed

Packaging Information

• Master Pack: 18 Units

• Barcode: 024431969217

Warranty

• Warranty: 3 Years
