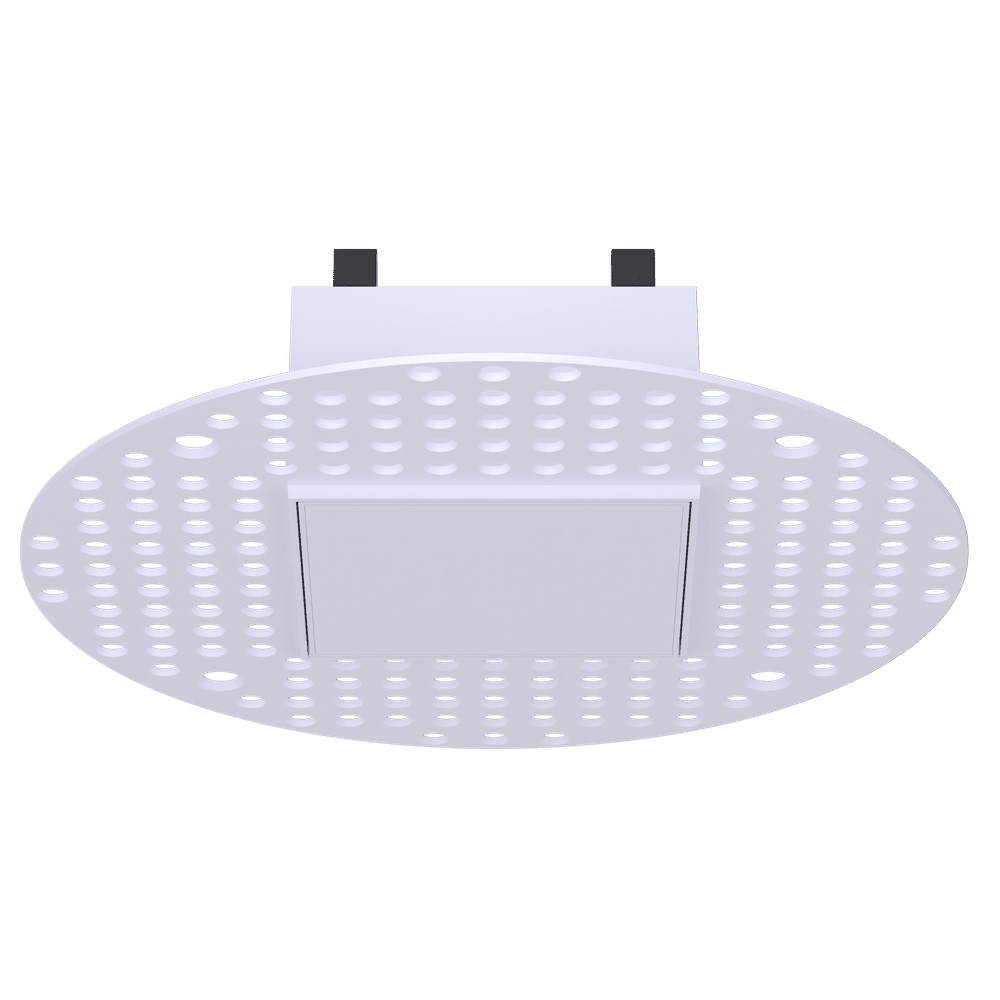

Star 4″ Square Trimless Flushed LED Downlight – 15/20W Selectable CCT, 120-277V, Wet Location

The Star 4-inch Square Trimless Flushed LED Downlight is a modern architectural lighting solution designed to deliver clean, seamless ceiling integration and high-performance illumination. Featuring a trimless design, this fixture blends directly into drywall ceilings for a smooth, minimalist appearance often preferred in high-end residential, hospitality, and commercial environments.

With its square profile and flush installation, the downlight creates a sophisticated lighting effect while maintaining a discreet presence within the ceiling surface. The frosted diffuser ensures smooth light distribution while reducing glare, producing comfortable and uniform illumination.

This fixture includes 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), allowing installers and designers to easily adjust the lighting tone to match the desired ambiance—from warm residential lighting to bright task lighting in commercial spaces.

Offering selectable wattage (15W or 20W) and delivering up to 1700 lumens, the Star trimless downlight provides powerful illumination with excellent color accuracy (CRI >90). The 100° beam spread ensures wide and even light distribution, making it suitable for general lighting in living spaces, offices, retail stores, corridors, and hospitality settings.

Compatible with Triac and 0-10V dimming systems, this fixture offers flexible lighting control for both residential and commercial applications. The clip-in mounting system simplifies installation, while the IC rating and wet location rating allow installation in insulated ceilings and moisture-prone environments such as bathrooms or covered outdoor areas.

Built with FT6 plenum-rated cable and ETL / Title 24 certifications, the Star 4″ Square Trimless LED Downlight is designed to meet modern building standards while delivering exceptional performance, efficiency, and architectural style.

Technical Specifications

General Specifications

• Product Name: Star 4″ Square Trimless Flushed LED Downlight

• Product Code: G-96626

• Model: SR4/20W/SQ/5CCT/TL

• Shape: Square

• Style: Trimless

• Size: 4 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

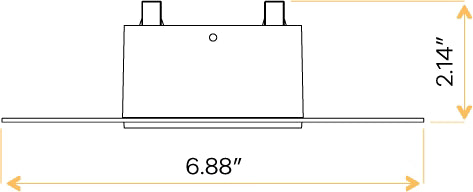

Dimensions

• Cutout Size: Square 2.95″ / Round 4.40″

• Outside Dimension (OD): 6.88″

• Height: 2.14″

Mounting

• Installation Type: Clip-in

Light Performance

• Wattage: 15W / 20W Selectable

• Lumens: 1400 / 1700 lm

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• CRI: >90

• Beam Angle: 100°

Electrical Specifications

• Input Voltage: 120-277V

• Output Current: 355mA / 515mA

• Dimming: Triac or 0-10V Dimming Compatible

• Plenum Rating: FT6

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certifications: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 18 Units

• Barcode: 024431966261

Warranty

• Warranty: 3 Years
