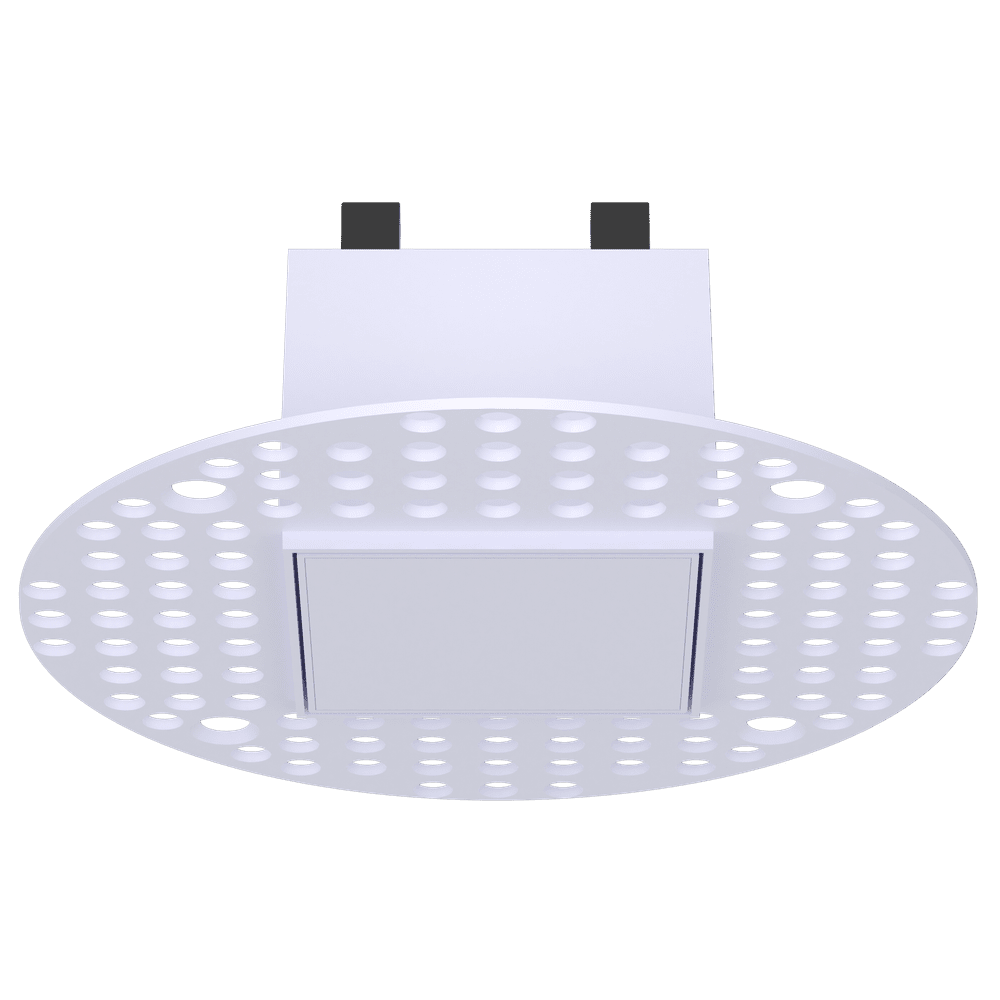

Star 3″ Square Trimless Flushed LED Downlight – 10/15W Selectable CCT, Architectural Recessed Light

The Star 3-inch Square Trimless Flushed LED Downlight is a modern architectural lighting solution designed to deliver seamless ceiling integration and high-performance illumination. Its trimless (mud-in) design allows the fixture to blend directly into the drywall, creating a clean and minimalist look that is highly desirable in luxury residential, hospitality, and commercial interiors.

Featuring a square profile and flush installation, this downlight provides a contemporary aesthetic while maintaining a discreet presence in the ceiling. The frosted diffuser ensures smooth, glare-free illumination while delivering even light distribution.

This fixture includes 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), allowing installers and designers to easily customize lighting tone depending on the application—from warm ambient lighting to bright task illumination.

The downlight also features selectable wattage (10W or 15W) and produces up to 1100 lumens, delivering energy-efficient lighting with excellent color rendering (CRI >90). The 100° beam angle provides wide illumination coverage ideal for living rooms, kitchens, hallways, offices, retail spaces, and hospitality environments.

Compatible with Triac and 0-10V dimming systems, this fixture offers flexible lighting control for both residential and commercial installations. The clip-in mounting system ensures fast and secure installation, while IC-rated construction and wet location certification allow installation in insulated ceilings and moisture-prone areas such as bathrooms or covered outdoor spaces.

Built with FT6 plenum-rated cable and ETL / Title 24 certifications, the Star 3″ Square Trimless LED Downlight meets modern building standards while delivering reliable performance, energy efficiency, and a premium architectural finish.

Technical Specifications

General Specifications

• Product Name: Star 3″ Square Trimless Flushed LED Downlight

• Product Code: G-96625

• Model: SR3/15W/SQ/5CCT/TL

• Shape: Square

• Style: Trimless (Mud-in)

• Size: 3 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

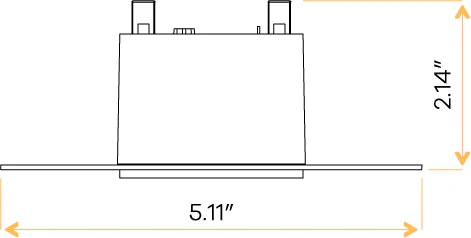

Dimensions

• Cutout Size: Square 2.45″ / Round 3.39″

• Outside Dimension (OD): 5.11″

• Height: 2.14″

Mounting

• Installation Type: Clip-in

Light Performance

• Wattage: 10W / 15W Selectable

• Lumens: 750 / 1100 lm

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• CRI: >90

• Beam Angle: 100°

Electrical Specifications

• Input Voltage: 120-277V

• Output Current: 230mA / 355mA

• Dimming: Triac or 0-10V Dimming Compatible

• Plenum Rating: FT6

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certifications: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 18 Units

• Barcode: 024431966254

Warranty

• Warranty: 3 Years
