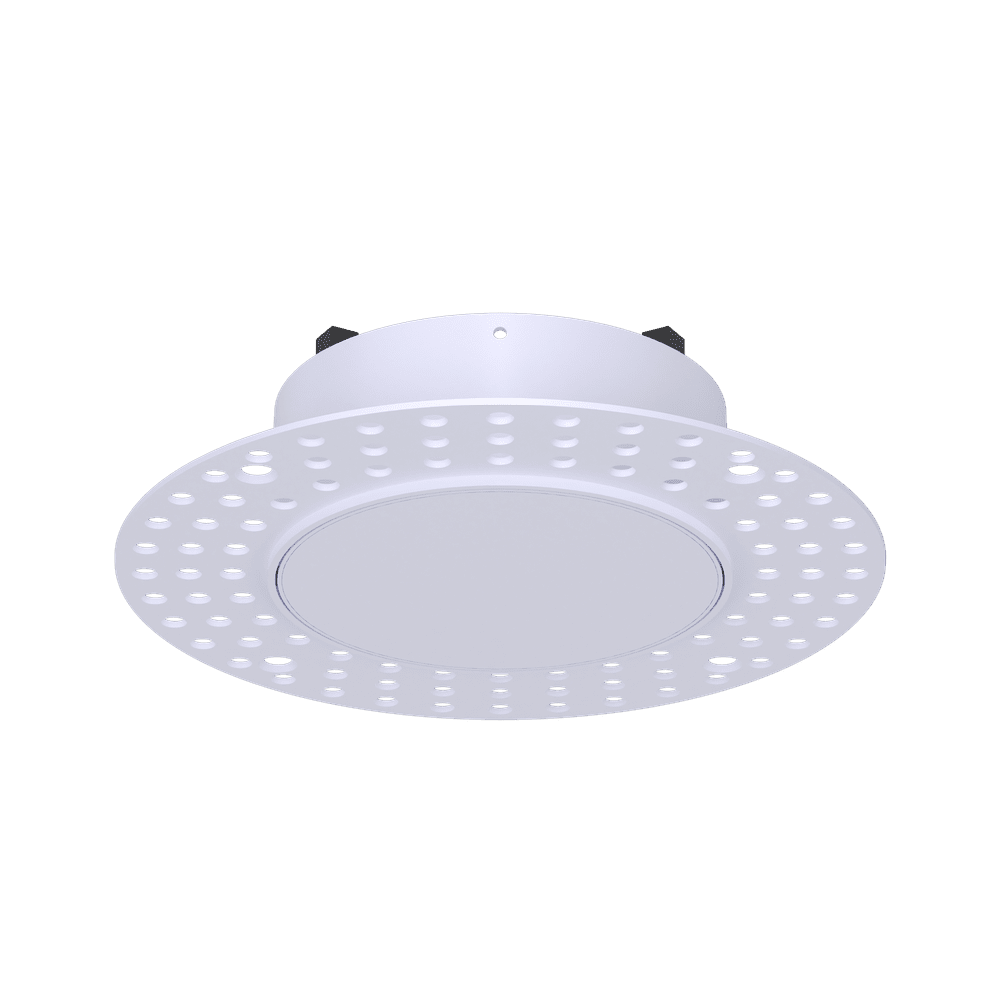

Star 4″ Round Trimless Flushed LED Downlight – 15/20W Selectable CCT, Architectural Recessed Light

The Star 4-inch Round Trimless Flushed LED Downlight is a premium architectural lighting solution designed to provide seamless ceiling integration and powerful illumination. Its trimless (mud-in) design allows the fixture to blend directly into drywall ceilings, creating a smooth and minimalist finish that is ideal for modern residential, hospitality, and commercial interiors.

The round flush design offers a clean architectural appearance while maintaining discreet ceiling integration. A frosted diffuser ensures uniform light distribution while minimizing glare, creating comfortable illumination for everyday environments.

Equipped with 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), this downlight allows installers and designers to customize lighting tone according to the space—whether warm ambient lighting for residential settings or bright task lighting for commercial applications.

The fixture features selectable wattage (15W or 20W) and delivers up to 1700 lumens, providing energy-efficient illumination with excellent color accuracy (CRI >90). The 100° beam spread ensures wide and even light distribution, making it suitable for living rooms, kitchens, offices, corridors, retail stores, and hospitality spaces.

Designed for installation flexibility, this recessed downlight supports Triac and 0-10V dimming systems, allowing precise lighting control. The clip-in mounting system simplifies installation, while the IC rating and wet location certification allow safe installation in insulated ceilings and moisture-prone environments such as bathrooms or covered outdoor areas.

Constructed with FT6 plenum-rated cable and ETL / Title 24 certifications, the Star 4″ Round Trimless LED Downlight meets modern building standards while delivering reliable performance, energy efficiency, and a refined architectural aesthetic.

Technical Specifications

General Specifications

• Product Name: Star 4″ Round Trimless Flushed LED Downlight

• Product Code: G-96622

• Model: SR4/20W/R/5CCT/TL

• Shape: Round

• Style: Trimless (Mud-in)

• Size: 4 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

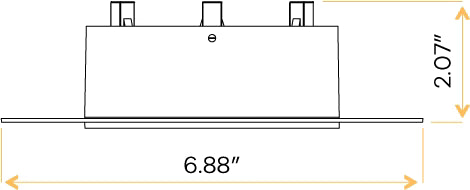

Dimensions

• Cutout Size: 4.17″

• Outside Dimension (OD): 6.88″

• Height: 2.07″

Mounting

• Installation Type: Clip-in

Light Performance

• Wattage: 15W / 20W Selectable

• Lumens: 1400 / 1700 lm

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• CRI: >90

• Beam Angle: 100°

Electrical Specifications

• Input Voltage: 120-277V

• Output Current: 355mA / 515mA

• Dimming: Triac or 0-10V Dimming Compatible

• Plenum Rating: FT6

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certifications: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 18 Units

• Barcode: 024431966223

Warranty

• Warranty: 3 Years
