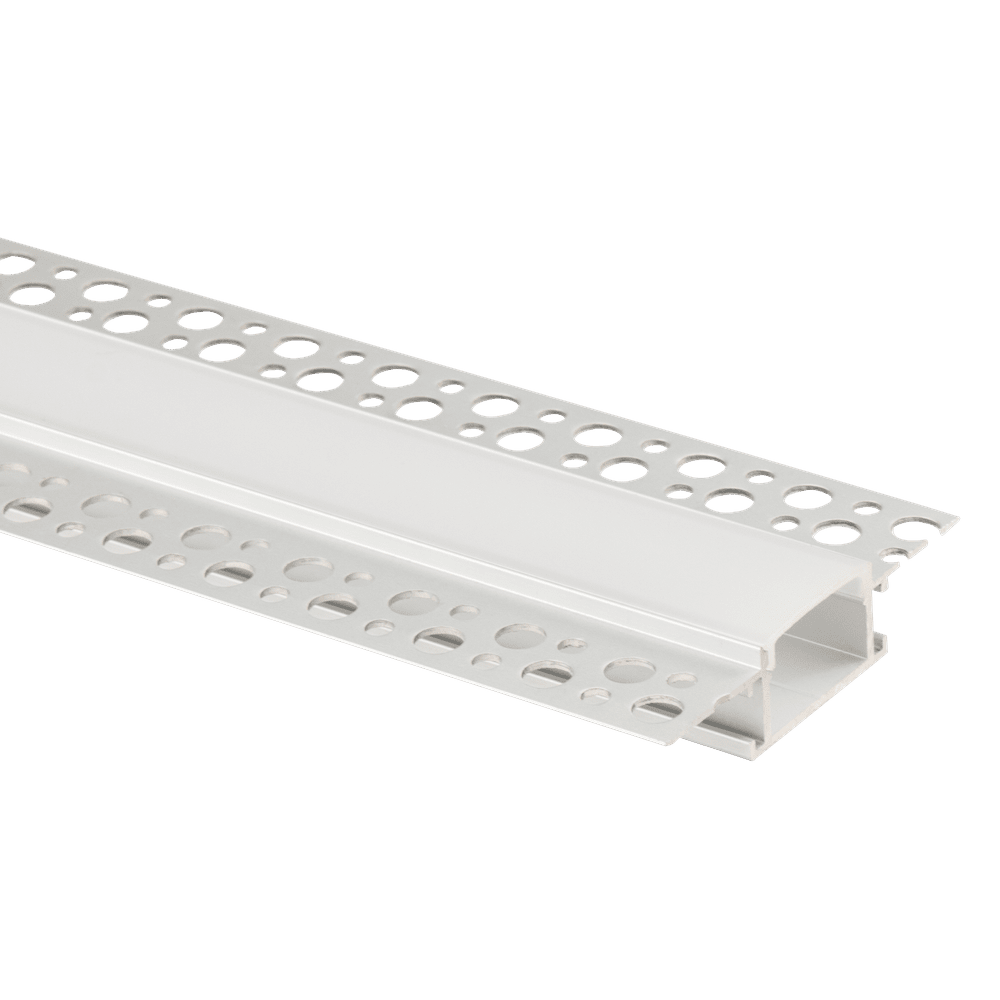

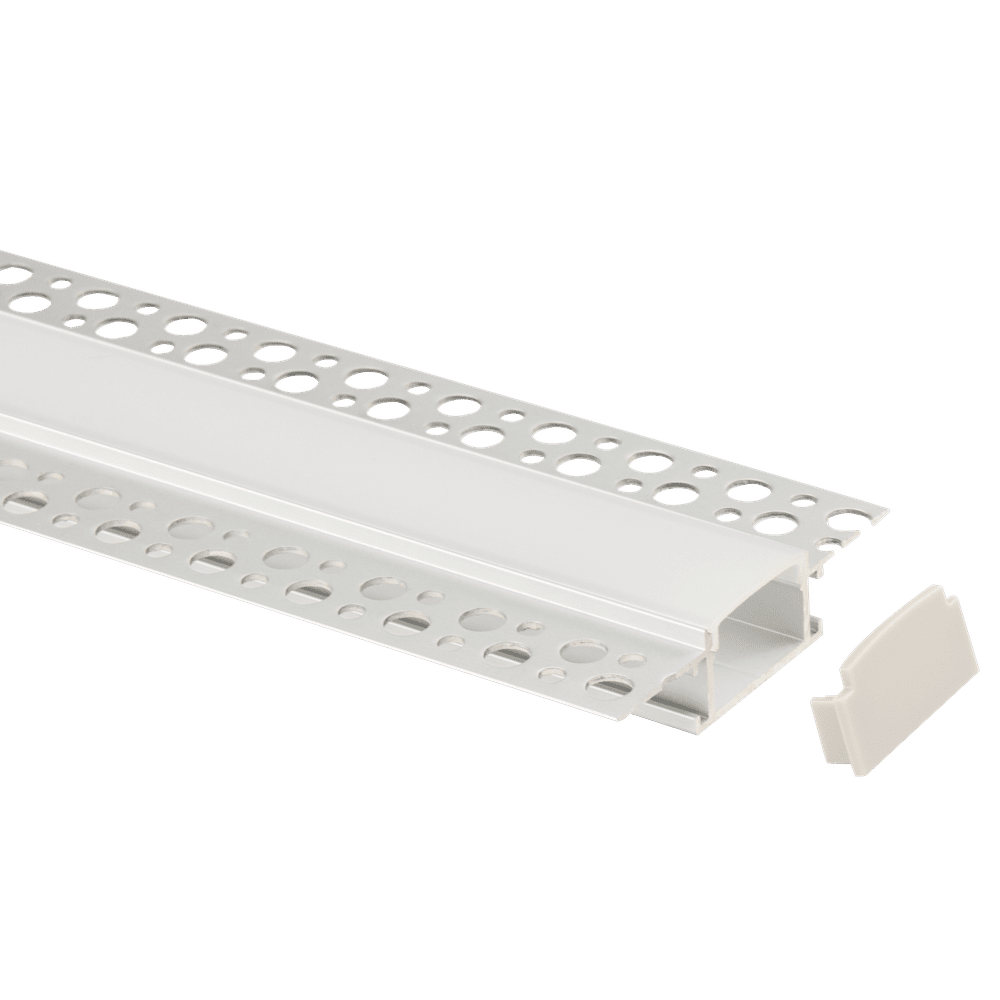

1" Aluminum Trimless LED Channel – 12 ft (144") Silver | Fits 20mm Tape | Frosted Opal Diffuser

The 1 Inch Aluminum Trimless Channel (12 ft) is designed for seamless drywall LED tape installations requiring a clean, modern architectural finish. Built for mud-in applications, this trimless channel allows lighting to sit flush within ceilings or walls—eliminating visible trim edges and delivering a refined recessed linear effect.

With a 20mm maximum tape capacity, this channel supports standard, high-output, tunable white, and RGB LED tape configurations. The included PC opal frosted diffuser evenly disperses light, minimizes glare, and reduces LED pixelation for smooth, professional illumination.

Its extended 144-inch (12 ft) length minimizes joints, making it ideal for long, continuous lighting runs in commercial and residential projects. Durable aluminum construction ensures heat dissipation and long-term structural integrity, while pre-drilled mounting holes every 23.5 inches simplify installation.

Perfect for architects, designers, and contractors seeking a streamlined recessed lighting solution with premium light diffusion.

Key Features & Benefits

• Trimless (mud-in) design for seamless drywall integration

• Supports LED tape up to 20mm width

• 12 ft (144") continuous length for extended linear runs

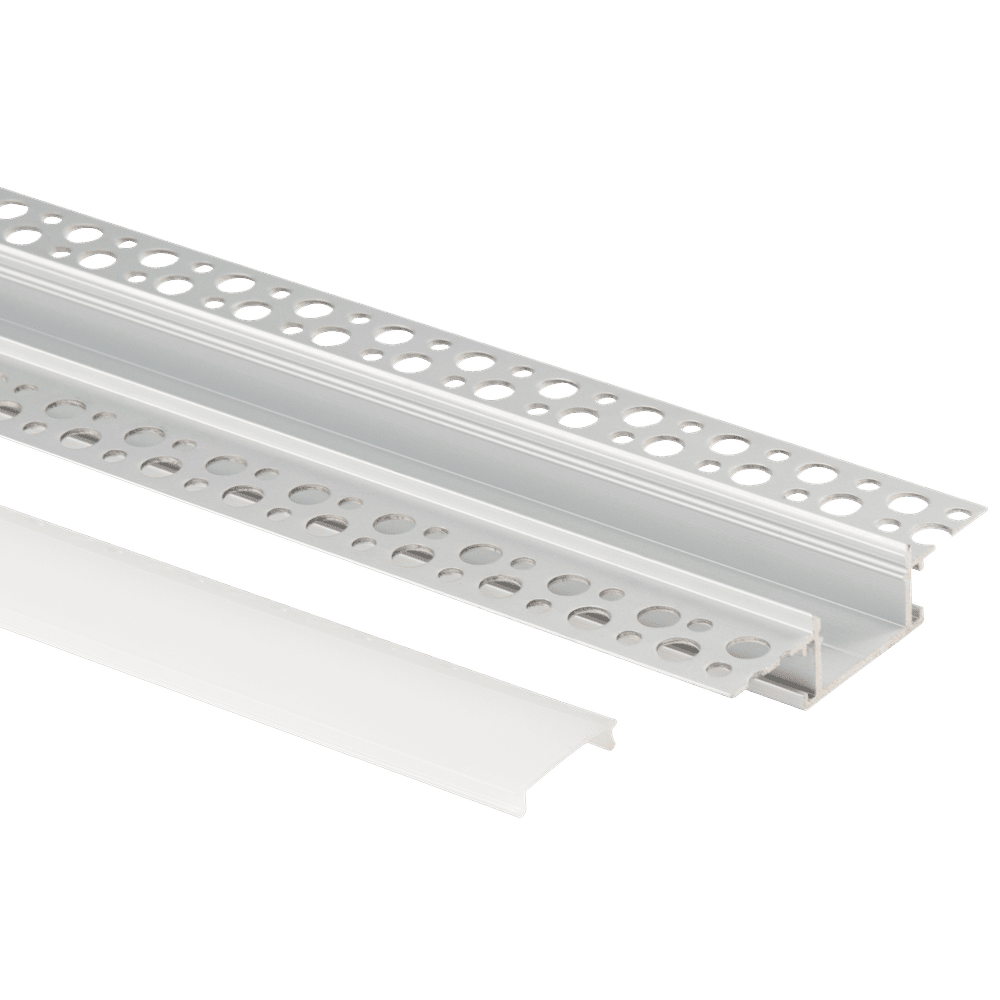

• Includes PC opal frosted diffuser for uniform light output

• Reduces glare and visible LED dotting

• Durable aluminum housing with silver finish

• Pre-drilled holes every 23.5" for easy installation

• Ideal for recessed architectural lighting applications

Technical Specifications

General Specs

• Product Code: G-96421

• Description: CH/TL/20/OP/12

• Size: 1 Inch

• Finish: Silver

• Max Tape Size: 20mm

• Cover Material: PC Opal

• Diffuser: Frosted

Dimensions

• Outside Dimensions (OD): 2.42"

• Height: 0.55"

• Width: 0.83"

• Length: 144" (12 ft)

Installation

• Pre-Drilled Holes: Every 23.5"

Packaging

• Inner Pack: 2

• Master Pack: 12

• Barcode: 024431964212

Applications

• Trimless recessed drywall lighting

• Linear ceiling and wall accents

• Cove lighting installations

• Commercial and hospitality projects

• Residential architectural lighting

• Custom millwork integrations
