Goodlite Lighting 3" HO Interchangeable Module Non-IC LED Downlight | 2,400Lm | CCT Selectable | Goodlite G-96024

$115.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

FCC Certified ETL Certified

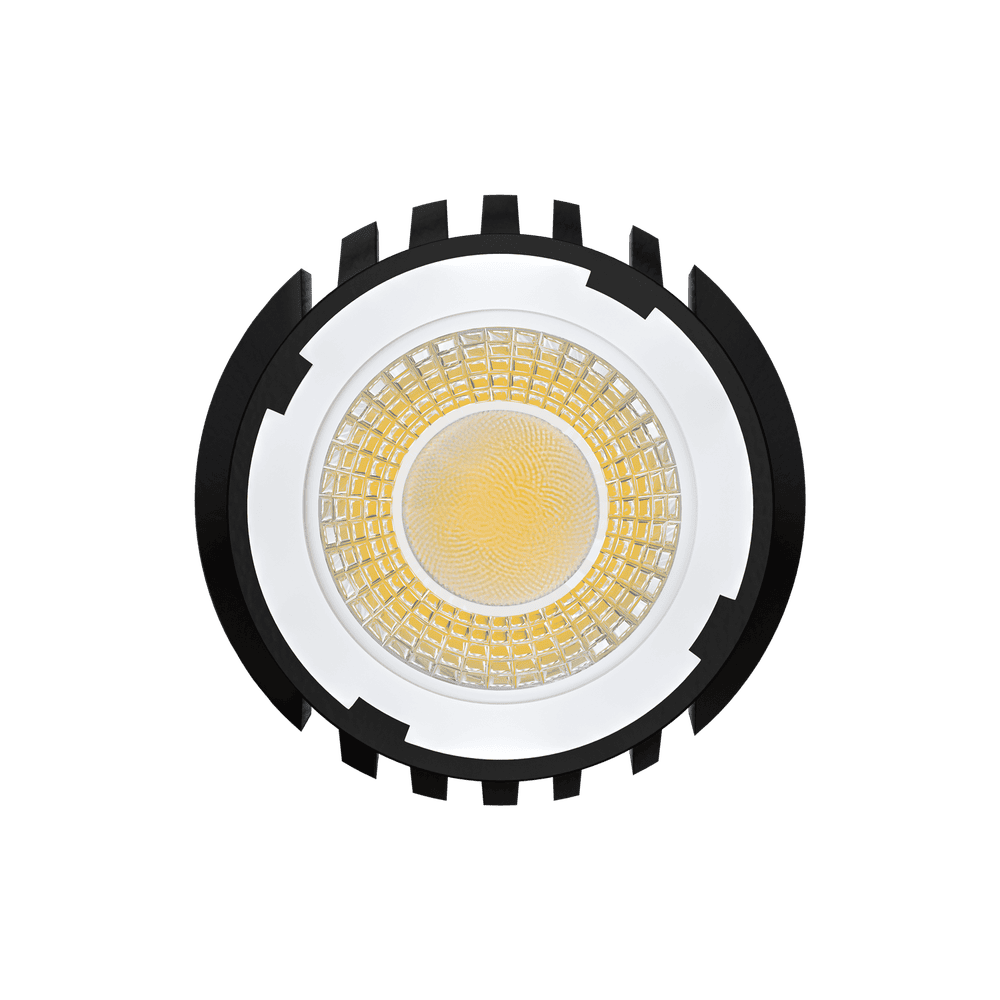

Deliver exceptional high-output performance from a compact aperture with the Aster 3" 24W HO Interchangeable LED Module (Model G-96024, Ordering Code: M3/24W/LED/5CCT NON-IC). Engineered for high-ceiling architectural spaces requiring punchy downlighting from a minimalist footprint, this 3-inch LED engine features an interchangeable optics system with a default clear lens delivering a wide 60° beam spread. Designed with universal mounting capabilities, it offers clean, low-glare accent and task illumination ideal for commercial offices, luxury retail, hospitality settings, and high-ceiling corridors.

Generating a robust 2400 lumens at an efficiency of 85 lm/W using 24W of power, this non-IC module operates across a universal voltage range (120-277V AC with 570mA output current). It supports dual dimming compatibility (TRIAC phase-cut and commercial 0-10V dimming down to 5%). Installers can tailor the light setting directly on site via the field-selectable 5-CCT color switch (2700K, 3000K, 3500K, 4100K, and 5000K) backed by excellent color rendering (CRI >90). Built to stringent municipal safety standards, it is FT6 Plenum Rated, Wet Location Rated, California Title 24 Listed, ETL Certified, and backed by a 3-year warranty.

Key Features:

  • Compact High-Output Performance: Delivers 2400 lumens from a compact 3-inch profile at 24W power consumption (85 lm/W efficacy).

  • 5-CCT Field Selectable: Easily toggle between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures on site.

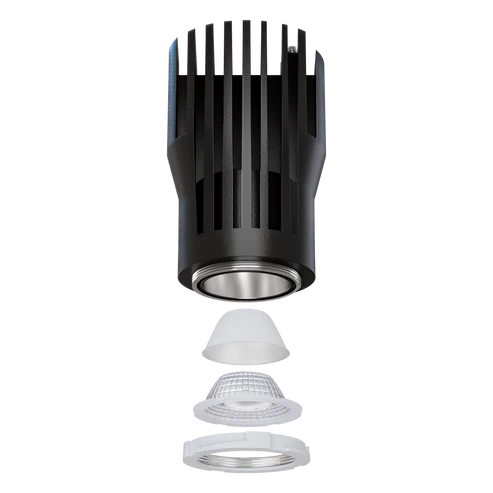

  • Interchangeable Optics System: Modular 3-inch light engine featuring a default clear lens with a wide 60° beam spread.

  • Universal 120-277V Input: Connects smoothly to standard 120V residential and 277V commercial power circuits (570mA output current).

  • Dual Dimming Protocol: Compatible with forward-phase TRIAC and commercial 0-10V dimming control systems (100% to 5%).

  • Safety & Code Compliance: Non-IC rated construction, FT6 Plenum Rated wiring, Wet Location Rated, California Title 24 Listed, and ETL Certified.

Technical Specification Table

Technical Specification Product Details (G-96024 Profile)
Product Model / SKU G-96024
Ordering Code M3/24W/LED/5CCT NON-IC
Product Line / Series Aster High-Output (HO) Interchangeable LED Series
Nominal Module Size 3.00 Inch
Primary Optics & Diffuser Clear Lens (Default)
Mounting Style Universal Mounting
Power Consumption 24W
Input Voltage Range 120-277V AC
Output Current 570mA
Luminous Output 2400 Lumens
Luminous Efficacy 85 lm/W
Color Rendering Index (CRI) CRI >90 (High Color Fidelity)
Beam Spread Angle 60° Optics (Default Clear)
Selectable CCT Options 5CCT (2700K / 3000K / 3500K / 4100K / 5000K)
Dimming Protocol / Range Dual TRIAC & 0-10V Dimming (100% - 5%)
Plenum Safety Rating FT6 Rated
Environmental Protection Wet Location Rated
Insulation Contact Rating Non-IC Rated
Regulatory Compliance ETL Listed, California Title 24 Listed
Manufacturer Warranty 3-Year Warranty

Packaging & Logistics Specifications

  • Individual Barcode / UPC: 024431960245

  • Master Case Pack Quantity: 18 Units per Master Pack
