Goodlite Lighting 3" Interchangeable Module LED Downlight | 950 Lumens | CCT Selectable | Goodlite G-96022

$65.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

FCC Certified ETL Certified

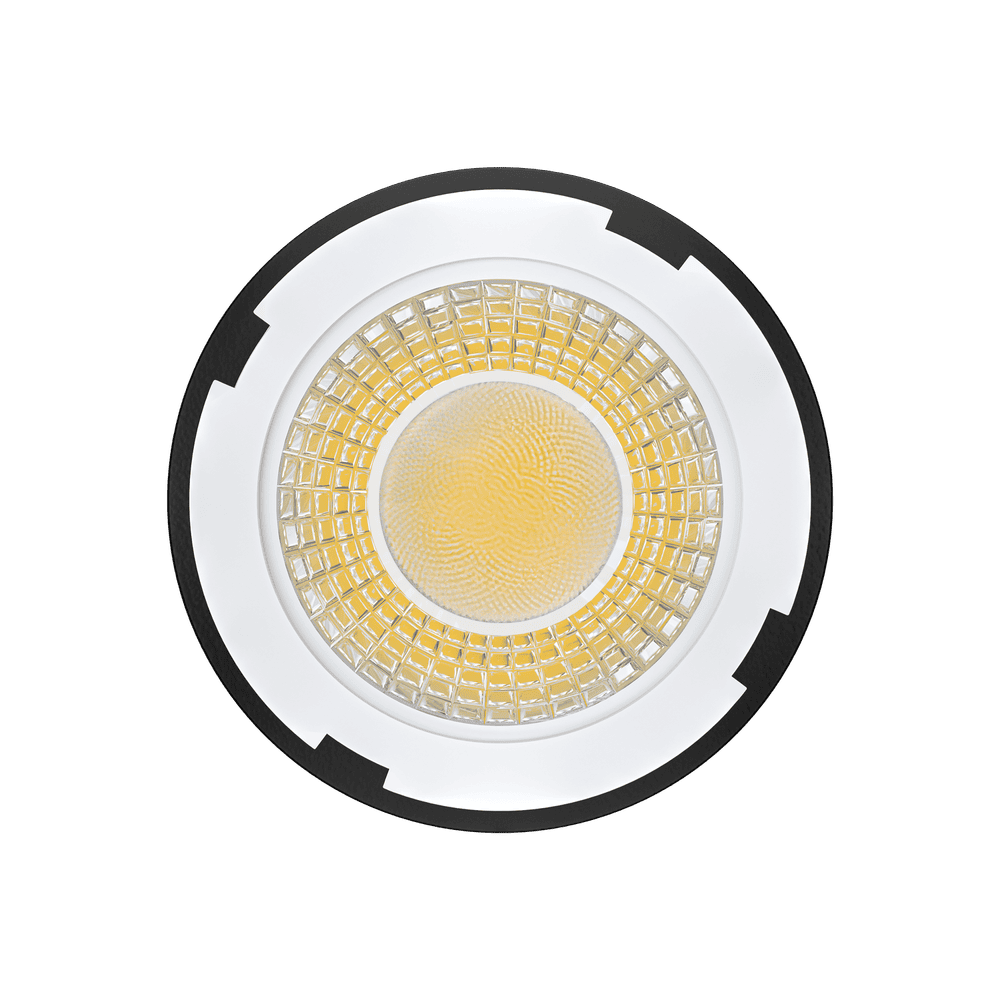

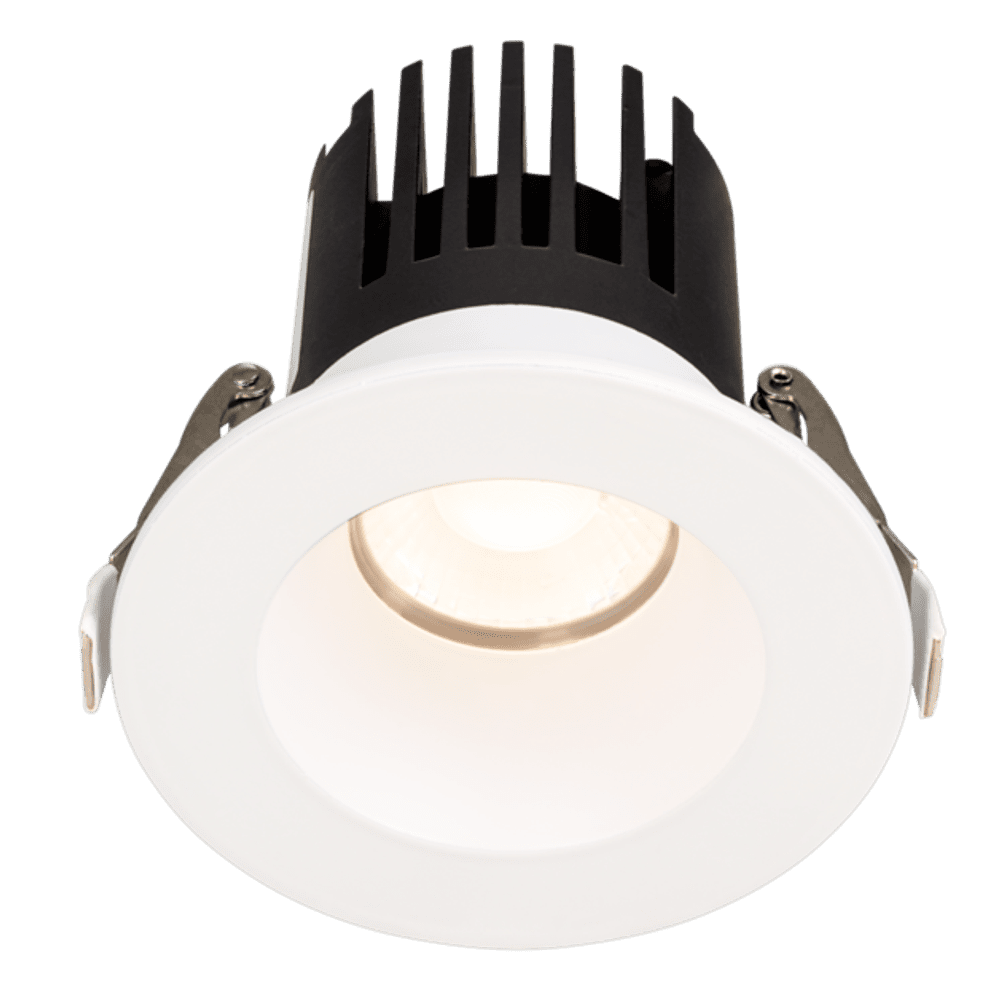

Deliver clean, architectural illumination from a compact profile with the Aster 3" 9W Interchangeable LED Module (Model G-96022, Ordering Code: M3/9W/LED/5CCT). Engineered as a versatile 3-inch LED engine, this module features an interchangeable optics system equipped with a default clear diffuser lens and a focused 40° beam spread. Built with universal mounting compatibility, it provides flexible, low-glare accent and general downlighting ideal for high-end residential spaces, commercial interiors, office suites, and hospitality projects.

Consuming just 9W of power to deliver a bright 950 lumens (85 lm/W efficacy), this energy-efficient module operates across universal line voltages (120-277V AC with 210mA output current). It supports dual dimming flexibility (TRIAC phase-cut and commercial 0-10V dimming from 100% down to 5%). Installers can easily customize light atmosphere on site using the field-selectable 5-CCT color switch (2700K, 3000K, 3500K, 4100K, and 5000K) plus multi-select Dim-to-Warm (DTW) performance, all backed by high color accuracy (CRI >90). Built to meet strict safety and code standards, it is IC Rated, FT6 Plenum Rated, Wet Location Rated, California Title 24 Listed, ETL Certified, and backed by a 3-year warranty.

Key Features:

  • Energy-Efficient Output: Consumes only 9W to deliver 950 lumens (85 lm/W efficacy) from a clean 3-inch footprint.

  • 5-CCT + Dim-to-Warm Selectable: Toggle between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures, or select Dim-to-Warm for warm ambient dimming.

  • Interchangeable Optics System: Modular 3-inch architectural light engine featuring a default clear diffuser lens with a focused 40° beam spread.

  • Universal 120-277V Input: Integrates seamlessly into standard 120V residential and 277V commercial voltage systems (210mA output current).

  • Dual Dimming Protocol: Supports standard TRIAC forward-phase and commercial 0-10V control systems (100% to 5%).

  • Safety & Code Compliance: IC Rated for direct contact with insulation, FT6 Plenum Rated, Wet Location Rated, California Title 24 Listed, and ETL Certified.

Technical Specification Table

Technical Specification Product Details (G-96022 Profile)
Product Model / SKU G-96022
Ordering Code M3/9W/LED/5CCT
Product Line / Series Aster Interchangeable LED Module Series
Nominal Module Size 3.00 Inch
Primary Optics & Diffuser Clear Diffuser Lens (Default)
Mounting Style Universal Mounting
Power Consumption 9W
Input Voltage Range 120-277V AC
Output Current 210mA
Luminous Output 950 Lumens
Luminous Efficacy 85 lm/W
Color Rendering Index (CRI) CRI >90 (High Color Fidelity)
Beam Spread Angle 40° Optics (Default)
Selectable CCT Options 5CCT (2700K / 3000K / 3500K / 4100K / 5000K) + Dim-to-Warm (DTW)
Dimming Protocol / Range Dual TRIAC & 0-10V Dimming (100% - 5%)
Plenum Safety Rating FT6 Rated
Environmental Protection Wet Location Rated
Insulation Contact Rating IC Rated
Regulatory Compliance ETL Listed, California Title 24 Listed
Manufacturer Warranty 3-Year Warranty

Packaging & Logistics Specifications

  • Individual Barcode / UPC: 024431960221

  • Master Case Pack Quantity: 18 Units per Master Pack
