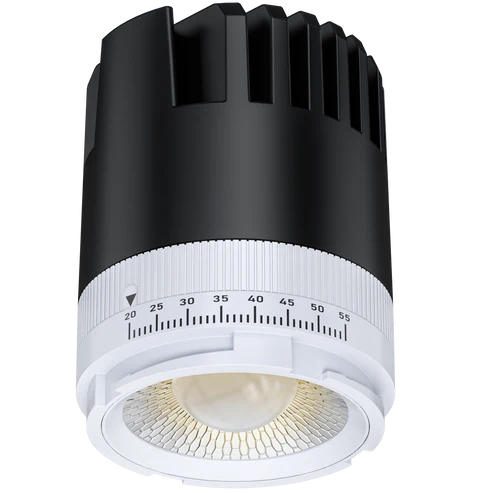

Goodlite Lighting 3" Beam Adjustable Module LED Donwlight | 850Lm Max | CCT Selectable | Goodlite G-96013

$85.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

FCC Certified ETL Certified

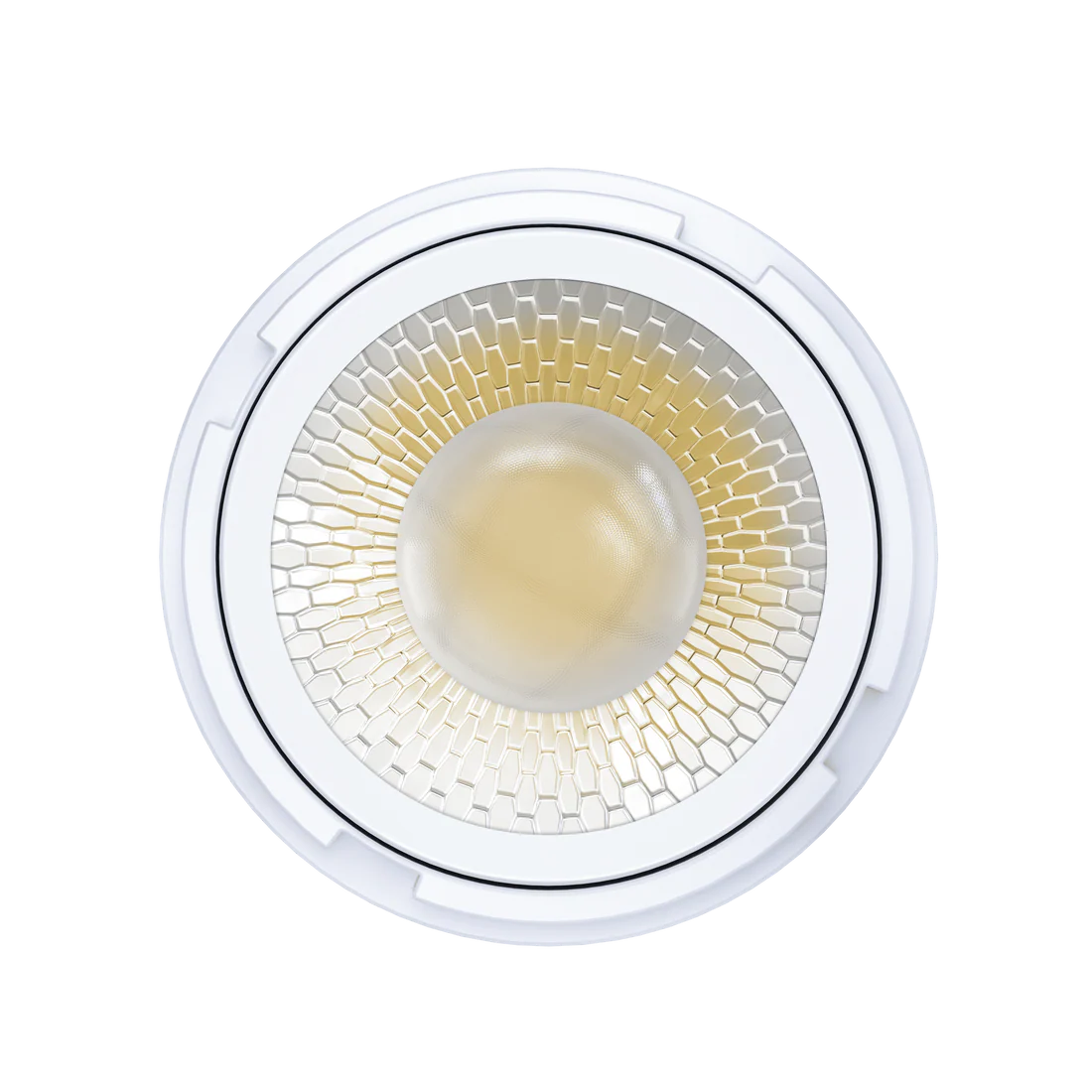

Deliver precision lighting control in ultra-compact architectural spaces with the Aster 3" 9W Beam Adjustable LED Module (Model G-96013, Ordering Code: M3/9W/ADJ/LED/5CCT). Designed for refined residential and commercial downlighting, this 3-inch LED engine features a continuously adjustable 20° to 55° zoom optical beam spread. This allows installers and designers to dynamically adjust the light distribution from a sharp accent spotlight to a smooth, medium flood without changing lenses. Fitted with a clear diffuser lens (default) and universal mounting capability, it provides targeted, glare-free illumination.

Generating 750 to 850 lumens (85 lm/W efficacy) at only 9W, this module operates across a universal 120-277V input range (210mA output) with dual-dimming compatibility (TRIAC and 0-10V dimming down to 5%). It features field-selectable 5-CCT color tuning (2700K, 3000K, 3500K, 4100K, and 5000K) backed by exceptional color accuracy (CRI >90). Built to meet demanding architectural and safety specifications, the module is IC Rated, Wet Location Rated, FT6 Plenum Rated, California Title 24 Listed, and backed by an ETL certification and a 3-year warranty.

Key Features:

  • Continuous 20°-55° Adjustable Optics: Seamlessly zoom the optical beam spread from 20° to 55° for customized illumination on site.

  • 5-CCT Field Selectable: Easily toggle between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures.

  • Compact High-Efficacy Output: Delivers 750-850 lumens at 9W (85 lm/W efficacy) with high color fidelity (CRI >90).

  • Universal 120-277V Input: Operates reliably across 120V residential and 277V commercial voltage lines (210mA output current).

  • Dual Dimming Protocol: Supports both standard TRIAC forward-phase and commercial 0-10V dimming systems (100% to 5%).

  • Comprehensive Safety & Compliance: IC Rated for direct insulation contact, Wet Location Rated, FT6 plenum wiring safe, and California Title 24 Listed.

Technical Specification Table

Technical Specification Product Details (G-96013 Profile)
Product Model / SKU G-96013
Ordering Code M3/9W/ADJ/LED/5CCT
Product Line / Series Aster Beam Adjustable LED Module Series
Nominal Module Size 3.00 Inch
Primary Optics & Lens Clear Lens (Default) with 20°-55° Zoom Optics
Mounting Style Universal Mounting
Power Consumption 9W
Input Voltage Range 120-277V AC
Output Current 210mA
Luminous Output 750 - 850 Lumens
Lumen Efficacy 85 lm/W
Color Rendering Index (CRI) CRI >90 (High Color Fidelity)
Beam Spread Angle Adjustable 20° to 55°
Selectable CCT Options 5CCT (2700K / 3000K / 3500K / 4100K / 5000K)
Dimming Protocol / Range Dual TRIAC & 0-10V Dimming (100% - 5%)
Plenum Safety Rating FT6 Rated
Environmental Protection Wet Location Rated
Insulation Contact Rating IC Rated
Regulatory Compliance ETL Listed, California Title 24 Listed
Manufacturer Warranty 3-Year Warranty

Packaging & Logistics Specifications

  • Individual Barcode / UPC: 990379960138

  • Master Case Pack Quantity: 18 Units per Master Pack
