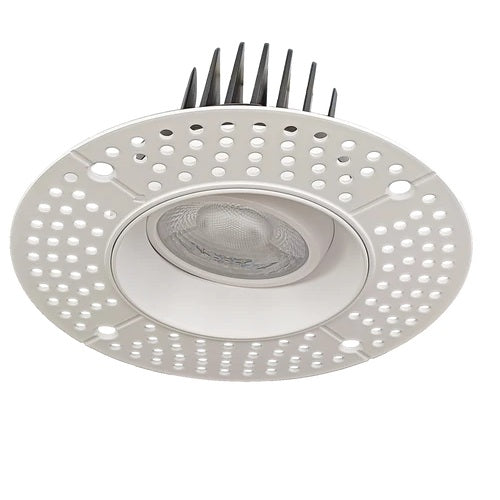

Achieve a completely flush, borderless ceiling integration with the Saturn 3.5" Round Trimless Gimbal LED Recessed Downlight Series. Tailored for high-end residential, retail, and commercial spaces, this trimless fixture features an adjustable gimbal module with full 360° horizontal rotation and a 20° vertical tilt angle, giving you exact directional beam placement with a wide 60° beam spread for targeted accenting or sloped ceiling installations.
Consuming 14W, the fixture delivers a high output of 1400 lumens with exceptional color accuracy (CRI >90). An integrated 5-CCT Field Selectable switch allows custom color temperature adjustments on-site (2700K, 3000K, 3500K, 4100K, and 5000K) via the remote junction box.

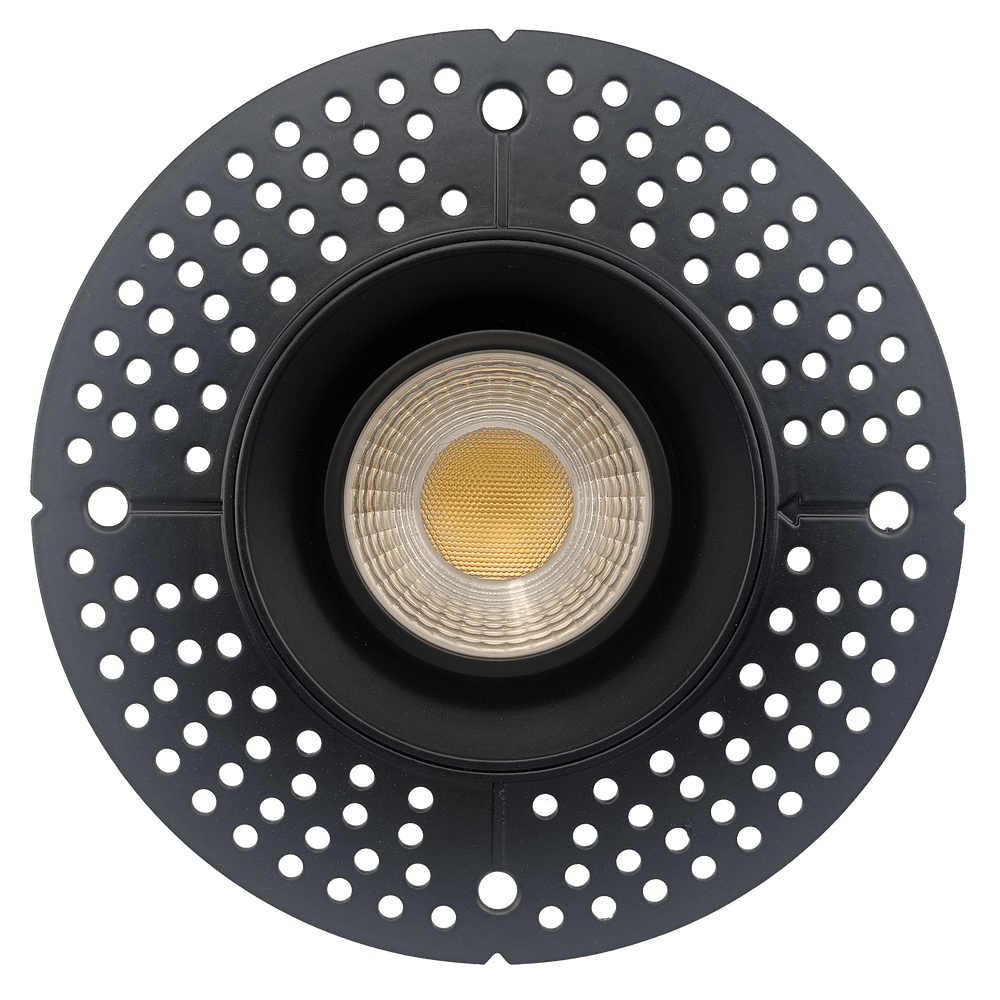

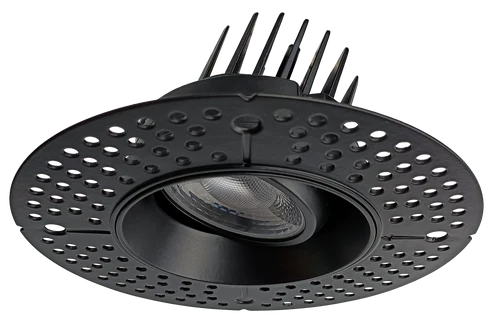

Designed for frameless mud-in drywall mounting into 3.65" ceiling cutouts, the unit operates on a commercial-grade universal 120-277V AC driver supporting both Triac and 0-10V dimming protocols. Available in both White (G-95626) and Black (G-95726) interior gimbal finishes. Certified ETL and Title 24 Listed, fully IC Rated for direct contact with insulation, approved for Wet Locations, and backed by a 3-year warranty.
Key Features:
360° Rotation & 20° Tilt Gimbal: Full rotational movement and 20° tilt provide precise directional aiming for wall washing and focal accenting.
Trimless Mud-In Architecture: Installs seamlessly into drywall cutouts to achieve a clean, rimless architectural ceiling aesthetic.
5-CCT Field Selectable: Customize color temperature on-site between 2700K, 3000K, 3500K, 4100K, and 5000K.
Commercial Grade Universal Driver: 120-277V AC input voltage supporting dual Triac and 0-10V dimming.
High CRI >90 Performance: Efficient 14W engine delivers 1400 lumens with true-to-life color fidelity.
IC & Wet Location Certified: Approved for direct insulation contact and wet environments; ETL & Title 24 Listed with a 3-year warranty.
| Technical Specification | White 3.5" Trimless Gimbal | Black 3.5" Trimless Gimbal |
| Product Code | G-95626 | G-95726 |
| Description Code | R3.5/14W/GR/LED/TL/5CCT | R3.5/14W/GR/LED/TL/5CCT BK |
| Finish | White | Black |
| Shape & Style | Round Trimless Gimbal | Round Trimless Gimbal |
| Diffuser | Clear | Clear |
| Head Count | 1 Light Module | 1 Light Module |
| Wattage | 14W | 14W |
| Lumen Output | 1400 Lumens | 1400 Lumens |
| Selectable CCT | 27, 30, 35, 41, 50K | 27, 30, 35, 41, 50K |
| CRI | CRI >90 | CRI >90 |
| Beam / Optics | 60° Beam Spread / 20° Tilt / 360° Rotation | 60° Beam Spread / 20° Tilt / 360° Rotation |
| Input Voltage | 120-277V AC | 120-277V AC |
| Output Current | 340mA | 340mA |
| Dimming Type & Range | Triac or 0-10V Dimming | Triac or 0-10V Dimming |

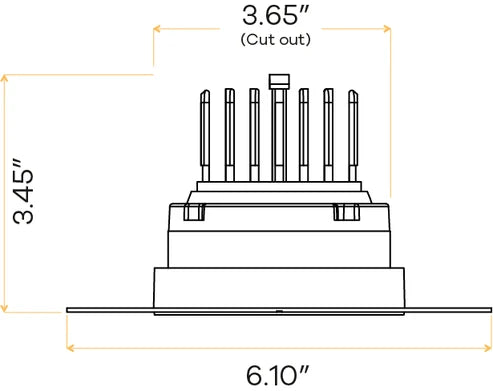

| Cutout Dimension | 3.65" | 3.65" |
| Outside Dimension (OD) | 6.10" | 6.10" |
| Fixture Height | 3.45" | 3.45" |
| Mounting Type | Mud-in (Trimless) | Mud-in (Trimless) |
| Location Rating | Wet Location | Wet Location |
| IC Rating | Yes (IC Rated) | Yes (IC Rated) |
| Classifications & Warranty | ETL, Title 24 Listed / 3-Year Warranty | ETL, Title 24 Listed / 3-Year Warranty |
Master Pack Quantity: 18 Pieces (Both Models)
Barcodes:
White (G-95626): 024431956262
Black (G-95726): 024431957269
Included Accessories: Integrated Mud-in Trimless Frame, Remote Junction Box Driver & Mounting Hardware
