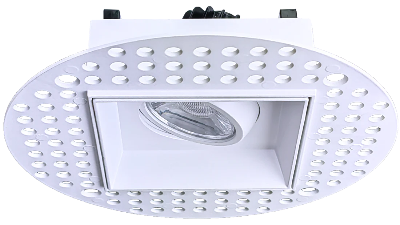

Saturn Multiple 3" Single Head Trimless Regress Gimbal – White & Black Finishes

The Saturn Multiple 3” Single Head Trimless Regress Gimbal LED Downlight is a premium architectural lighting solution designed for seamless ceiling integration and precision directional control. Featuring a true trimless mud-in installation, this recessed fixture creates a clean, minimalist finish ideal for modern residential, commercial, and hospitality environments.

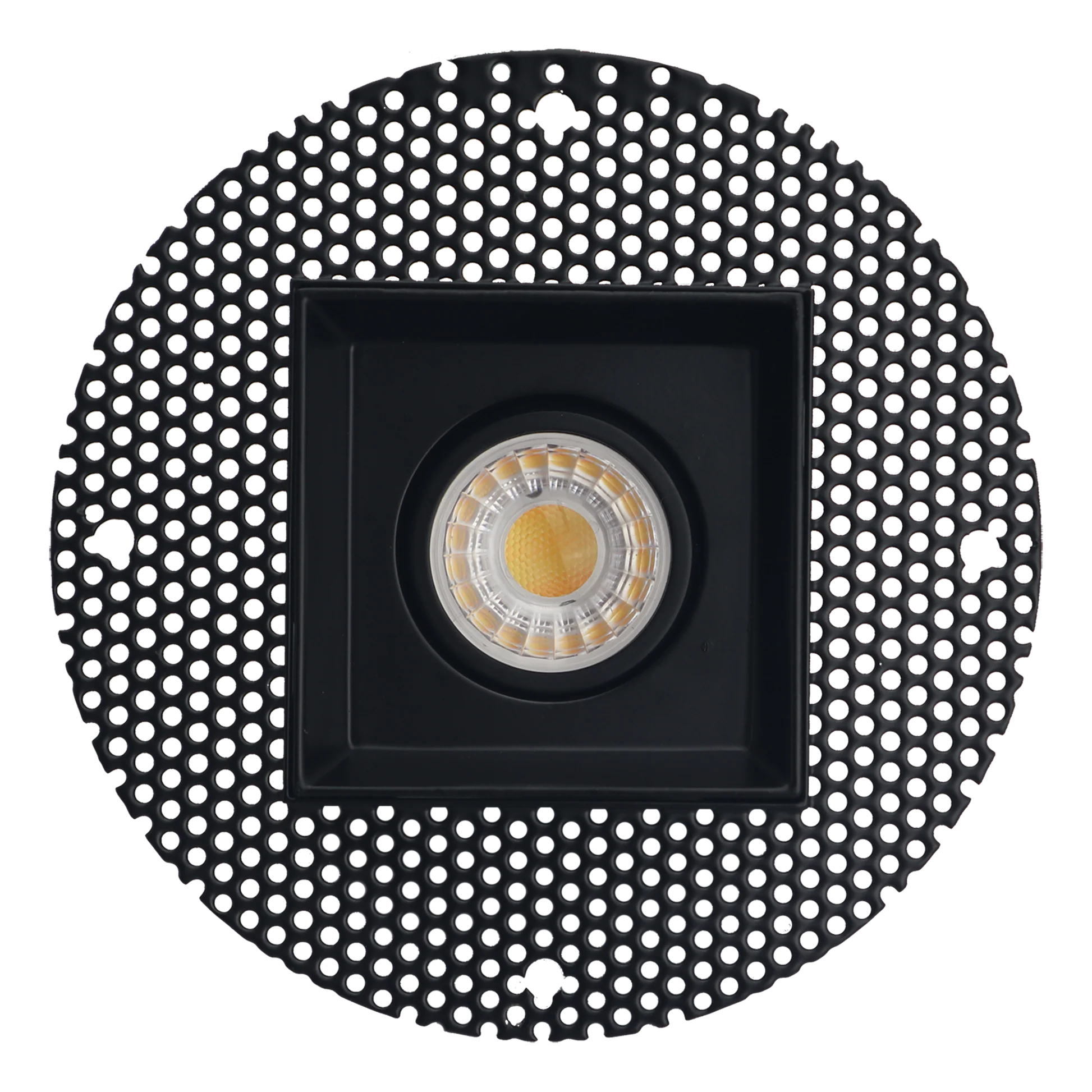

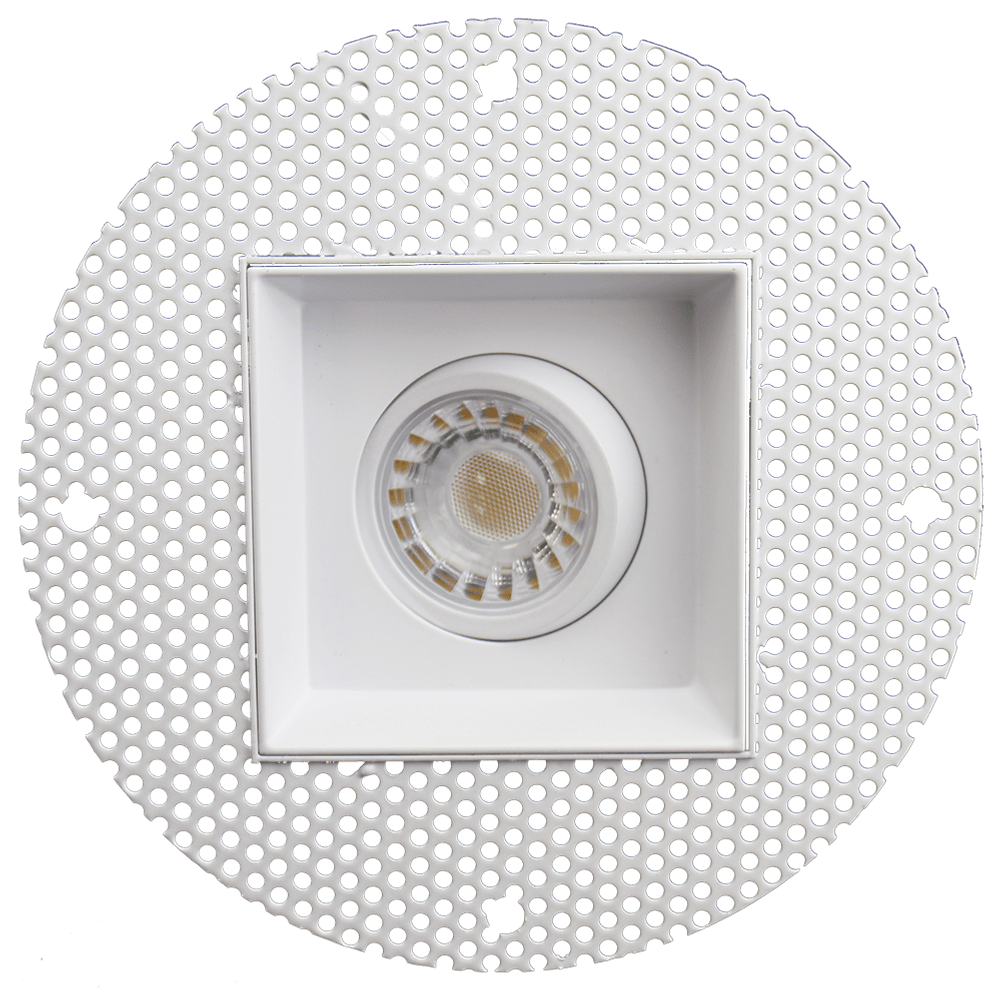

Available in White (G-95620) and Black (G-95720) finishes, this 8W LED delivers high color accuracy, selectable color temperature, and full rotational flexibility.

Designed for architects, designers, and contractors seeking a seamless ceiling aesthetic, the Saturn Multiple 3” Trimless Regress Gimbal provides professional-grade performance with refined visual appeal.

The trimless mud-in mounting system allows the fixture to be plastered directly into drywall, eliminating visible trims for a smooth, contemporary ceiling look. The regressed light source reduces glare while delivering controlled illumination through a 40° beam angle.

With 700 lumens output at only 8 watts, this energy-efficient LED module offers powerful, focused light ideal for accent lighting, retail displays, artwork, and high-end residential applications.

Advanced Lighting Features

• 5 Selectable CCT: 2700K / 3000K / 3500K / 4100K / 5000K

• CRI >90: Accurate color rendering for premium environments

• 30° Tilt Adjustment: Targeted directional lighting

• 360° Rotation: Full aiming flexibility

• Regressed Optics: Reduced glare and enhanced visual comfort

This fixture operates on 120–277V universal voltage, making it suitable for both residential and commercial installations. It supports Triac and 0-10V dimming, ensuring smooth light control across various systems.

Built for durability and compliance, this model is:

• ✔ IC Rated – Safe for direct contact with insulation

• ✔ Wet Location Rated – Suitable for bathrooms and covered outdoor areas

• ✔ Plenum Rated (FT6) – Approved for plenum spaces

• ✔ ETL Listed & Title 24 Compliant – Meets energy efficiency standards

• ✔ Backed by a 3-Year Warranty

Technical Specifications

General Specifications

• Product Codes: G-95620 (White) / G-95720 (Black)

• Description: R3/8W/GRS/LED/TL/5CCT

• Shape: Square

• Style: Trimless, Regressed Gimbal

• Size: 3 Inch

• Finish Options: White / Black

• Diffuser: Clear

• Number of Lights: 1

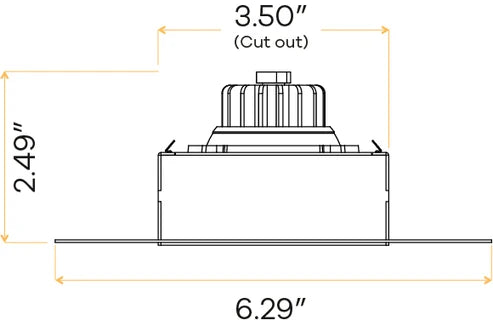

• Cutout: SQ 3.35” – RD 5.00”

• Outside Dimension (OD): 6.30"

• Height: 2.65"

• Mounting: Mud-In (Trimless Installation)

• Master Pack: 18

Lighting Performance

• Wattage: 8W

• Lumens: 700 LM

• CRI: >90

• Selectable CCT: 2700K / 3000K / 3500K / 4100K / 5000K

• Beam Spread: 40° (Default)

• Tilt Angle: 30°

• Rotation: 360°

Electrical

• Voltage: 120–277V

• Output Current: 170mA

• Dimming: Triac or 0–10V Dimming Compatible

• Plenum Rated: FT6

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certification: ETL Listed, Title 24 Compliant

• Warranty: 3 Years

Ideal Applications

• Architectural recessed lighting

• High-end residential projects

• Luxury retail displays

• Hospitality and hotel interiors

• Art galleries and showrooms

• Office and commercial accent lighting

• Modern trimless ceiling designs

Key Benefits

✔ Seamless trimless mud-in installation
✔ Regressed design for glare reduction
✔ 5 selectable color temperatures
✔ 360° rotation with 30° tilt
✔ Wet location & plenum rated
✔ IC rated for insulated ceilings
✔ Universal 120–277V input
✔ Dual dimming compatibility (Triac & 0-10V)
✔ ETL & Title 24 compliant
