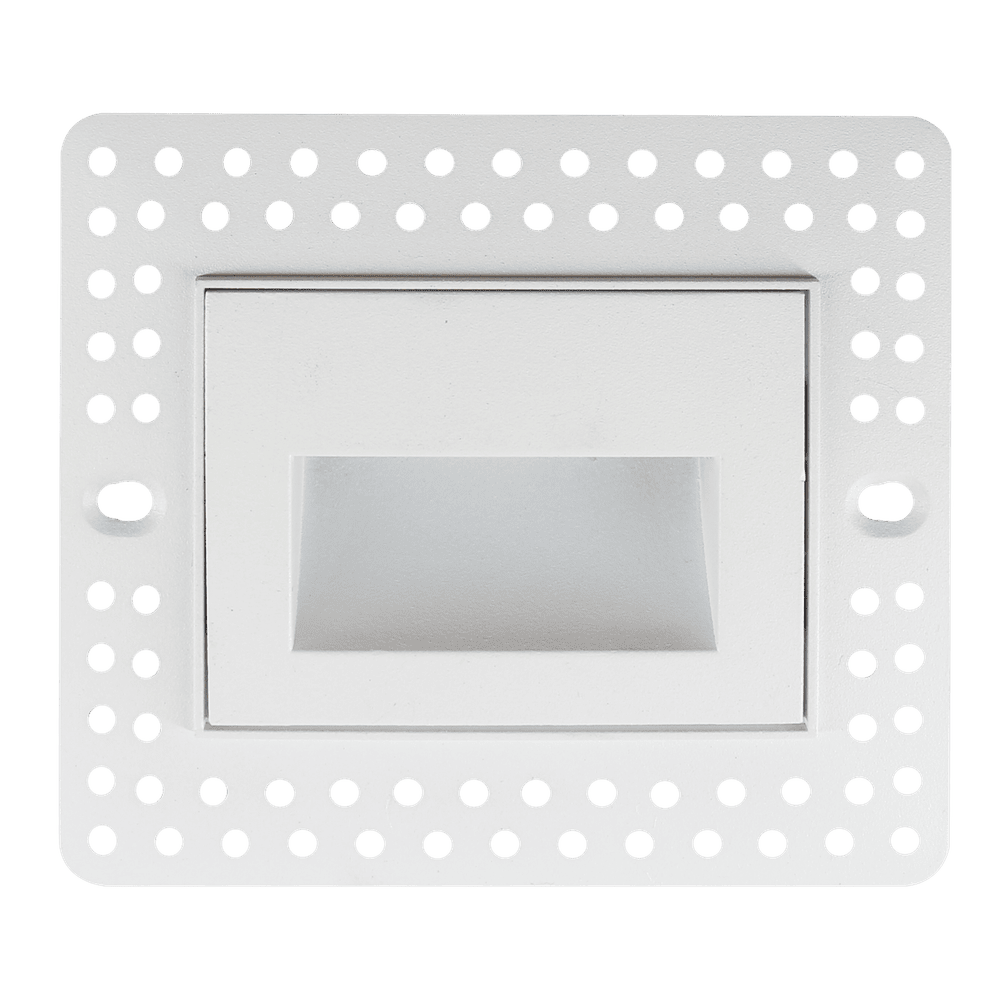

3W Trimless Horizontal LED Step Light 5CCT Wet Location

The 3W Trimless Horizontal LED Step Light Series delivers clean, low-profile architectural illumination designed for modern stairways, corridors, pathways, and wall-integrated lighting applications. Featuring a true trimless plaster-in design, this recessed step light installs flush with drywall or solid surfaces, creating a seamless, minimalist appearance ideal for contemporary residential and commercial interiors.

Engineered with selectable 5CCT technology (2700K–5000K), the fixture allows on-site color temperature adjustment to match warm residential tones or cooler commercial environments. The 110-lumen output and wide 100° beam spread provide soft, glare-controlled guidance lighting that enhances safety while preserving visual comfort in low-light conditions.

Constructed for durability and versatility, the luminaire operates on standard 120V line voltage and supports TRIAC dimming for smooth brightness control. With a wet-location rating and ETL certification, it is suitable for indoor and outdoor step lighting, retaining walls, entryways, and landscape walls. Available in black and white finishes, the Trimless Horizontal Step Light integrates discreetly into architectural surfaces while delivering reliable, energy-efficient performance.

Technical Specifications

Series: 3W Trimless Horizontal LED Step Light
Models: G-48533 (Black), G-48532 (White)

General

• Shape: Horizontal

• Style: Trimless recessed

• Finishes: Black / White

• Dimensions (OD): 3.85" × 3.45"

• Height: 1.92"

• Width: 2.55"

• Mounting: Trimless wall recessed

Optical

• Lumens: 110 lm

• Beam angle: 100°

• CRI: 90

• Selectable CCT: 2700K / 3000K / 3500K / 4100K / 5000K

Electrical

• Wattage: 3W

• Voltage: 120V

• Dimming: TRIAC

Environmental & Compliance

• Location rating: Wet location

• Certification: ETL Listed

• Warranty: 3 years

Packaging

• Master pack: 18

Barcodes

• Black (G-48533): 696304485331

• White (G-48532): 696304485324
