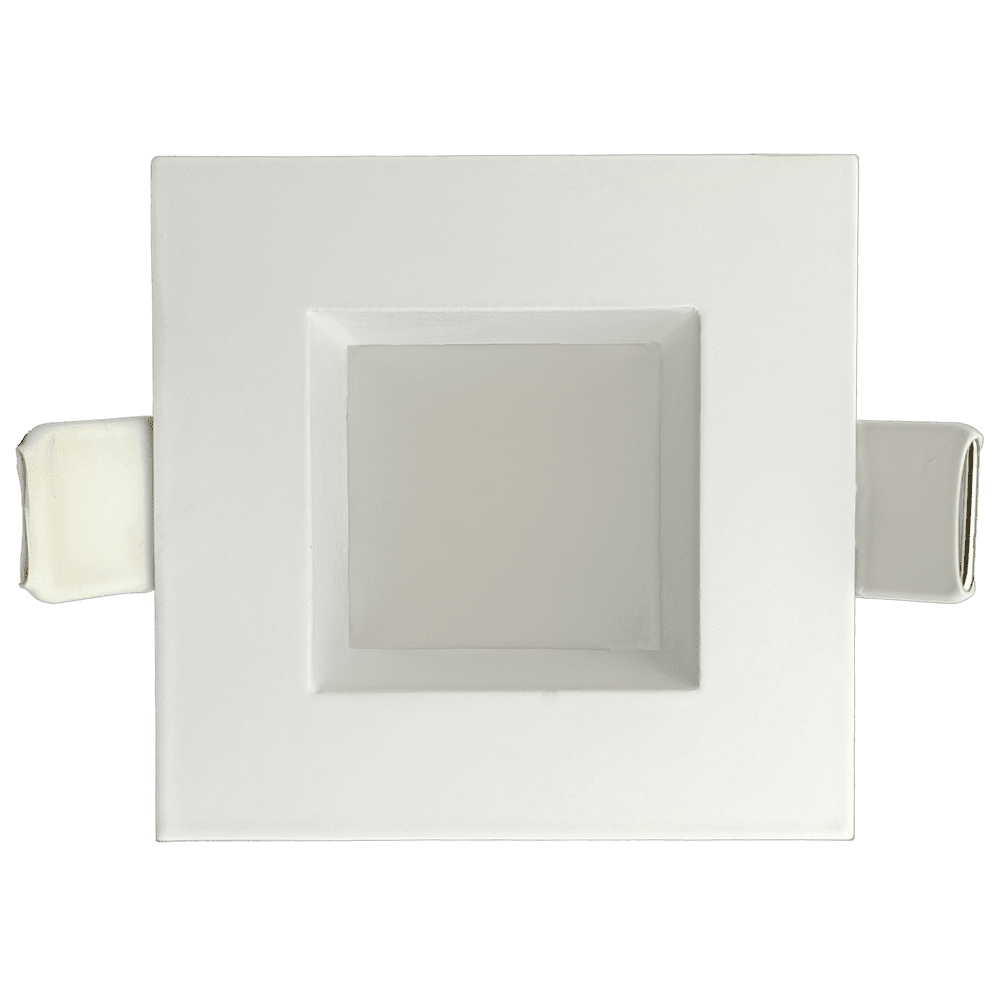

2" Square Regress Slim LED Downlight | 500Lm | 120V | CCT Selectable | Regulus Series | Goodlite G-48509

The Regulus 2" Square Regressed Slim LED Downlight delivers high-performance illumination in an ultra-compact, low-profile design ideal for modern residential and commercial applications. Featuring a regressed light source, this fixture minimizes glare while providing smooth, comfortable illumination with a wide beam spread.

Designed for versatility, this 2-inch square trimmed downlight includes 5-CCT selectable technology (2700K–5000K), allowing installers to adjust color temperature on-site to match any environment. With 500 lumens, CRI >90, and a 100° beam angle, it offers excellent light coverage and accurate color rendering—perfect for ambient lighting in kitchens, hallways, offices, retail spaces, and hospitality settings.

The slim profile and clip-in mounting system make installation fast and efficient, even in shallow plenums. Operating at 8 watts on standard 120V systems, this downlight supports Triac dimming for smooth, flicker-free light control.

Built for durability and code compliance, the Regulus 2" square regress slim downlight is IC rated, wet-location rated, and ETL listed, making it suitable for both indoor and protected outdoor installations.

Technical Specifications

General

• Series: Regulus

• Fixture Type: Square Regressed Slim LED Downlight

• Product Code: G-48509

• Description: RS2/8W/SQ/LED/5CCT

• Shape: Square

• Style: Trimmed

• Size: 2 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

• Mounting: Clip-In

Dimensions

• Cutout Size: 2.08"

• Outside Dimensions (OD): 2.55"

• Height: 2.52"

Lighting Performance

• Wattage: 8W

• Lumens: 500

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• CRI: >90

• Beam Angle: 100°

Electrical

• Voltage: 120V

• Output Current: 170mA

• Dimming: Triac

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certification: ETL Listed

• Warranty: 3 Years

Packaging

• Master Pack: 18

• Barcode: 696304485096
