1 Inch Round Interchangeable Module LED Downlight | 600Lm | CCT Selectable | 120/277V | Aster Series | Goodlite G-48470

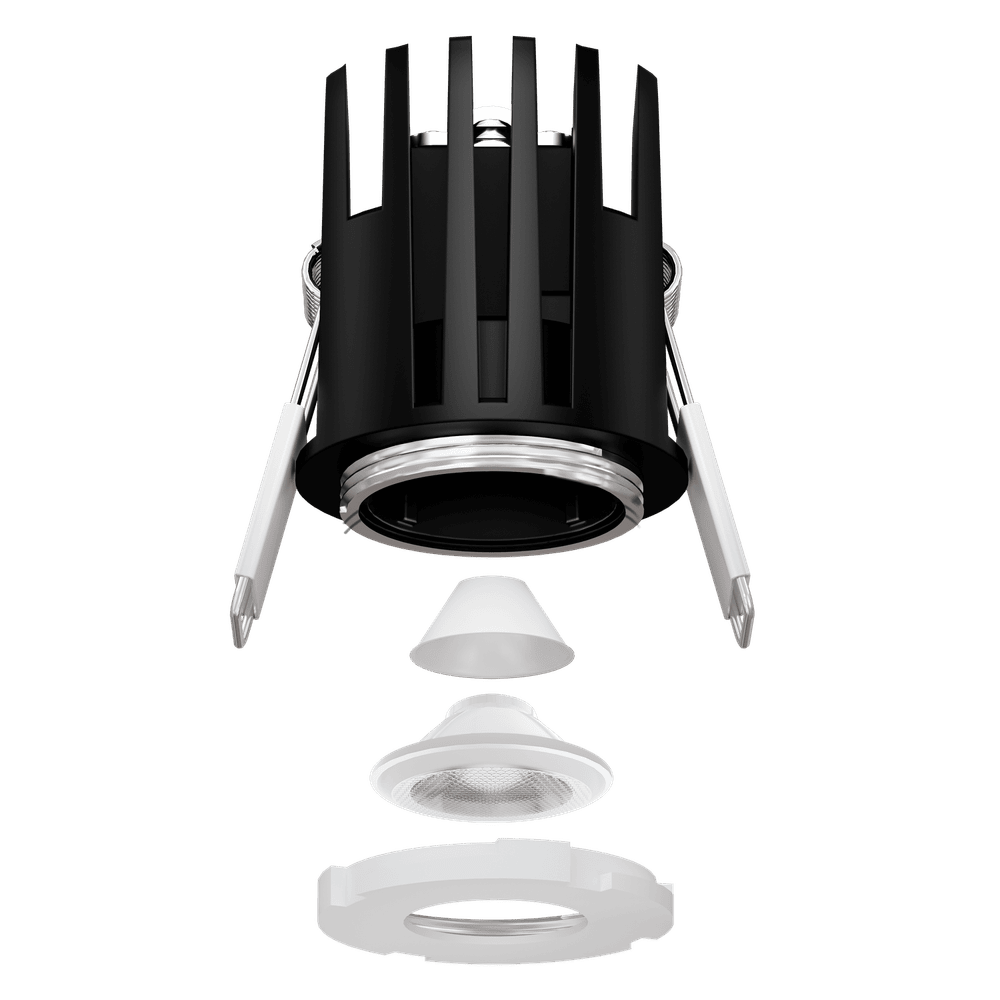

Aster 1” 7W Interchangeable LED Module

Model: G-48470 | Description: M1/7W/LED/5CCT

The Aster 1-inch 7W Interchangeable LED Module delivers precision lighting performance in an ultra-compact recessed format, making it ideal for applications where subtle, high-quality illumination is required. Designed for use with Aster 1” trims, this module features selectable color temperature (5CCT), allowing installers and end users to fine-tune the lighting ambiance without changing fixtures.

With a selectable range from 2700K to 5000K, this module adapts easily to residential, hospitality, and commercial environments. Producing up to 600 lumens with a CRI greater than 90, it ensures crisp, accurate color rendering while maintaining excellent energy efficiency at just 7 watts.

The module supports universal 120–277V input voltage and offers Triac or 0–10V dimming, delivering smooth, flicker-free dimming across a wide range of control systems. Its IC-rated, plenum-rated (FT6), and wet location–rated construction makes it suitable for insulated ceilings, air-handling spaces, bathrooms, and covered outdoor areas.

The interchangeable module design allows for quick upgrades or replacements without disturbing the trim or ceiling, reducing installation time and long-term maintenance costs.

Key Features & Benefits

• 1-inch interchangeable LED module for Aster recessed systems

• Selectable 5CCT: 2700K / 3000K / 3500K / 4100K / 5000K

• 7W output with up to 600 lumens

• High color accuracy with CRI >90

• 40° beam angle for precise accent and task lighting

• Triac or 0–10V dimming compatible

• Universal 120–277V voltage

• IC rated & plenum rated (FT6)

• Wet location rated for indoor and covered outdoor use

• ETL & Title 24 listed

Technical Specifications

General

• Size: 1 Inch

• Module Type: Interchangeable LED

• Diffuser: Clear (Default)

• Mounting: Universal

Light Performance

• Wattage: 7W

• Lumen Output: 600 lumens

• Color Temperature: Selectable 2700K / 3000K / 3500K / 4100K / 5000K

• CRI: >90

• Beam Angle: 40°

Electrical

• Voltage: 120–277V

• Output Current: 150mA

• Dimming: Triac or 0–10V

Compliance & Ratings

• IC Rated: Yes

• Plenum Rated: FT6

• Location Rating: Wet

• Certification: ETL Listed, Title 24 Compliant

• Warranty: 3 Years

Packaging

• Master Pack: 18

• Barcode: 696304484709

Ideal Applications

• Precision accent lighting

• Display cases and millwork

• Residential recessed lighting

• Hospitality and retail environments

• Bathrooms and covered outdoor ceilings
