1" HO Interchangeable Module LED Downlight | 1,100Lm | CCT Selectable | Goodlite G-48468

Deliver powerful, high-output illumination from an ultra-micro aperture with the Aster 1" 15W HO Interchangeable LED Module (Model G-48468, Ordering Code: M1/15W/LED/5CCT). Engineered for minimalist, seamless ceiling layouts where lighting fixtures need to remain virtually invisible, this 1-inch LED engine features an interchangeable optics system equipped with a default clear diffuser lens and a wide 60° beam spread. Designed with universal mounting compatibility, it provides discrete, high-efficiency accent and general downlighting ideal for high-end residential, retail, commercial office, and luxury hospitality settings.

Consuming 15W to deliver a punchy 1100 lumens (73 lm/W efficacy), this high-output (HO) micro module operates across a universal voltage range (120-277V AC with 350mA output current). It supports dual dimming protocols (TRIAC phase-cut and commercial 0-10V dimming from 100% down to 5%). Installers can tailor the light atmosphere directly on site via the field-selectable 5-CCT color switch (2700K, 3000K, 3500K, 4100K, and 5000K), all backed by excellent color accuracy (CRI >90). Built to meet demanding municipal safety and energy codes, it is FT6 Plenum Rated, Wet Location Rated, California Title 24 Listed, ETL Certified, and backed by a 3-year warranty.

Key Features:

• Micro-Aperture High Output: Delivers an impressive 1100 lumens from an ultra-compact 1-inch profile at 15W power consumption.

• 5-CCT Field Selectable: Easily toggle between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures on site.

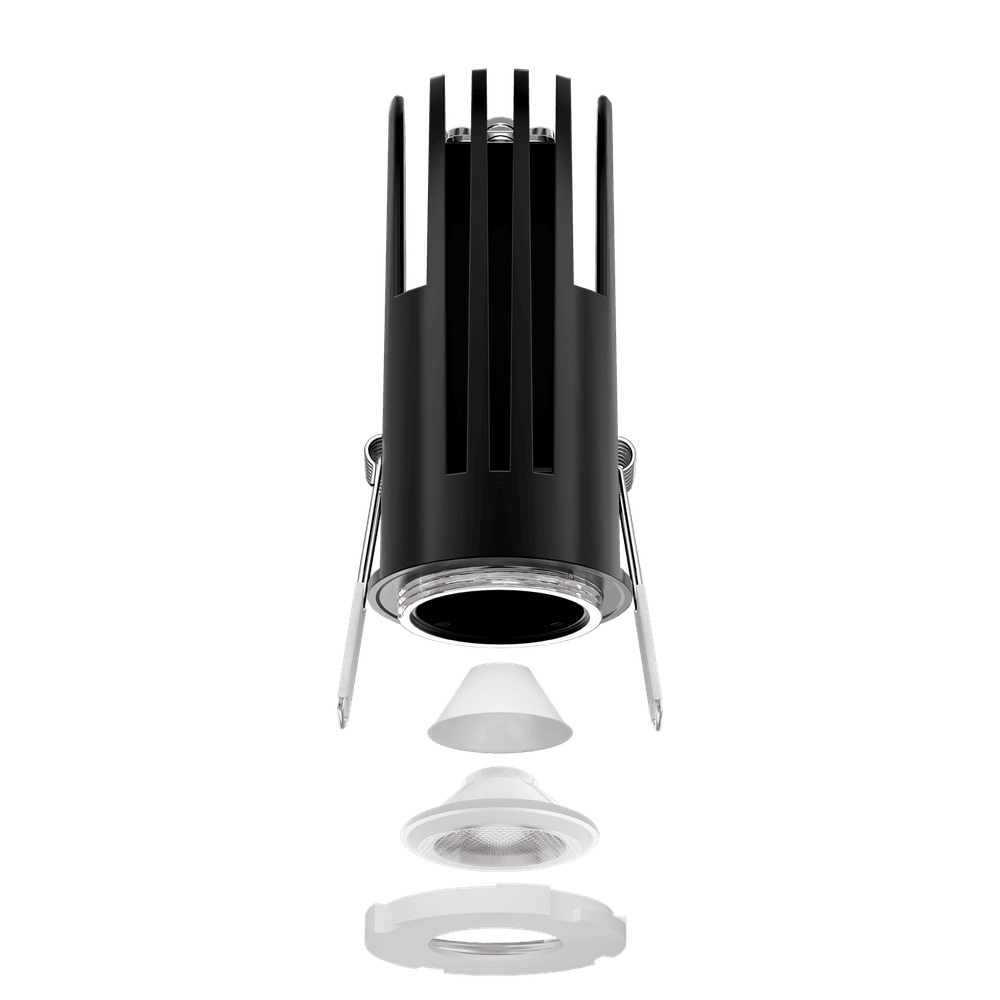

• Interchangeable Optics System: Modular 1-inch architectural light engine featuring a default clear diffuser lens with a 60° beam spread.

• Universal 120-277V Input: Integrates seamlessly into residential (120V) and commercial multi-voltage (277V) systems (350mA output current).

• Dual Dimming Protocol: Supports standard TRIAC forward-phase and commercial 0-10V control systems (100% to 5%).

• Safety & Code Compliance: Non-IC rated construction, FT6 Plenum Rated, Wet Location Rated, California Title 24 Listed, and ETL Certified.

Technical Specification Table

Packaging & Logistics Specifications

• Individual Barcode / UPC: 696304484686

• Master Case Pack Quantity: 18 Units per Master Pack
