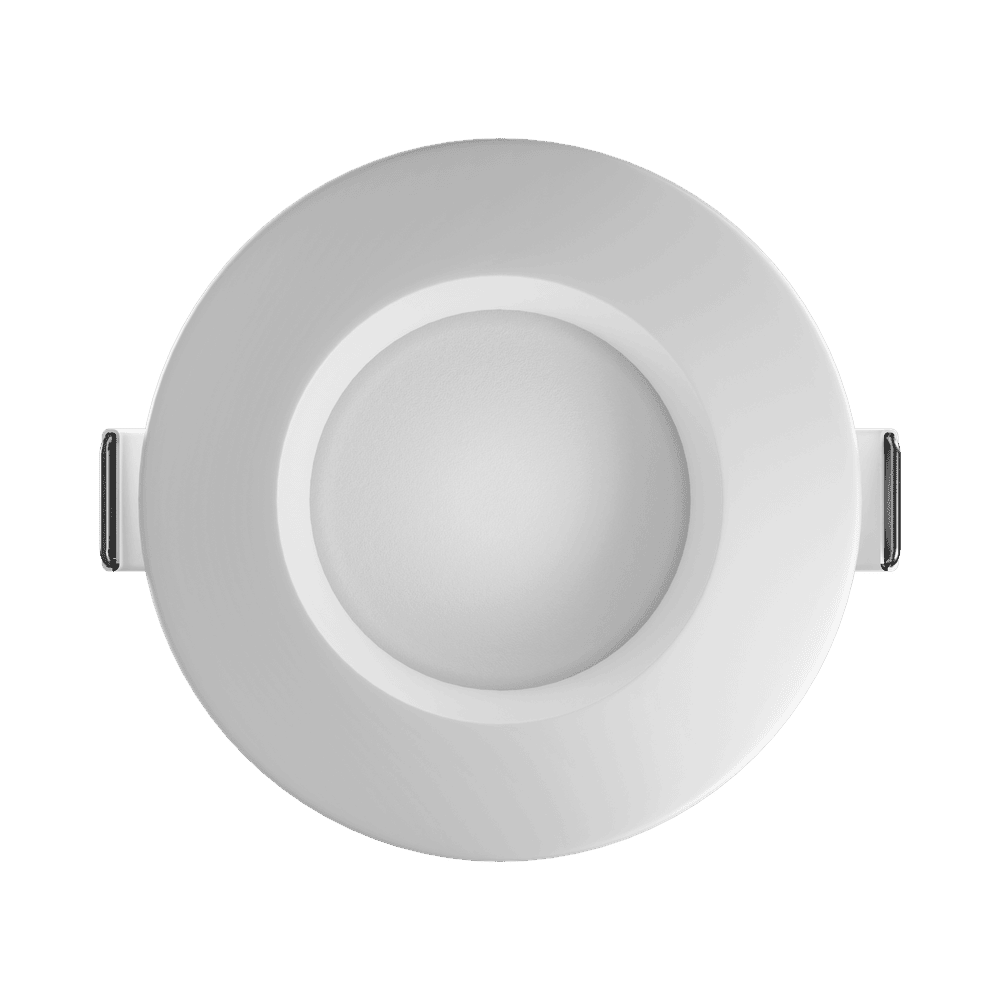

Regulus 3" Round Regress Slim LED Downlight – 10W, 5CCT Selectable, Wet Location

The Regulus 3-inch Round Regress Slim LED Downlight is a compact architectural recessed lighting fixture designed to deliver efficient illumination with a refined ceiling appearance. Its regressed LED light source minimizes glare while providing smooth, evenly distributed light, making it ideal for modern residential and commercial interiors.

Designed for versatility, this downlight includes 5 selectable color temperatures (2700K, 3000K, 3500K, 4100K, and 5000K), allowing installers and designers to customize the lighting tone to suit different environments—from warm residential lighting to bright commercial applications.

With 10W LED power producing up to 750 lumens, this fixture provides efficient lighting for hallways, kitchens, bathrooms, offices, retail displays, hospitality areas, and accent lighting installations. The 100° beam angle ensures wide light distribution while maintaining a comfortable visual experience.

The high color rendering index (CRI >90) ensures accurate color representation, improving the appearance of interiors and displayed objects. The fixture also supports Triac and 0–10V dimming, allowing smooth brightness adjustment and compatibility with a wide range of dimming systems.

Its slim profile and clip-in mounting system enable quick and secure installation, even in ceilings with limited space. The fixture is IC Rated, allowing installation in insulated ceilings without additional housing.

Built for durability and safety, the downlight is wet location rated, making it suitable for bathrooms, kitchens, soffits, and other moisture-prone areas. Certified ETL Listed and Title 24 compliant, and backed by a 3-year warranty, the Regulus 3" Round Regress Slim LED Downlight provides reliable, energy-efficient recessed lighting for modern architectural applications.

Technical Specifications

General Specifications

• Product Name: Regulus 3" Round Regress Slim LED Downlight

• Product Code: G-48337

• Model: RS3/10W/R/LED/5CCT

• Shape: Round

• Style: Regressed / Trimmed

• Size: 3 Inch

• Finish: White

• Diffuser: Frosted

• Number of Lights: 1

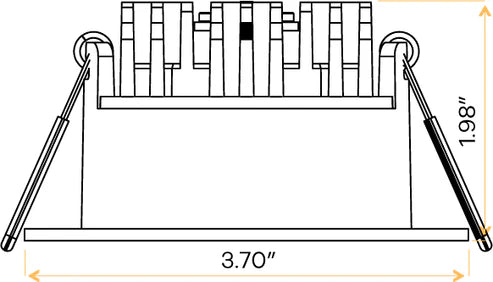

Dimensions

• Cutout Size: 2.91"

• Outside Dimension (OD): 3.70"

• Height: 1.98"

Mounting

• Installation Type: Clip-in

Light Performance

• Wattage: 10W

• Lumens: 750 lm

• CRI: >90

• Color Temperature: Selectable CCT

• CCT Options: 2700K / 3000K / 3500K / 4100K / 5000K

• Beam Angle: 100°

Electrical Specifications

• Input Voltage: 120–277V

• Output Current: 230mA

• Dimming: Triac or 0–10V Dimming Compatible

Compliance & Ratings

• Location Rating: Wet Location

• IC Rated: Yes

• Certification: ETL Listed, Title 24 Compliant

Packaging Information

• Master Pack: 18 Units

• Barcode: 696304483375

Warranty

• Warranty: 3 Years
