3" Double Head Regress Gimbal LED Downlight | 1,400 Lumens | CCT Selectable | Goodlite G-48316/464

Deliver dynamic dual-point directional illumination and low-glare accent lighting with the Saturn Multiple 3" Double Head Regress Multiple Gimbal LED Recessed Downlight Series. Engineered for high-end residential spaces, retail environments, galleries, and modern commercial display applications, this linear multi-light fixture houses two independently adjustable regressed gimbal heads within a single trimmed housing. Each light module provides a 30° vertical tilt angle with a standard 40° beam spread, allowing flexible directional aiming across two distinct focal points from a single ceiling cutout.

Consuming 15W total, the system delivers efficient light output (700 lumens per head / 1400 lumens total for White, 600 lumens per head / 1200 lumens total for Black) with accurate color rendering (CRI >90). An integrated 5-CCT Field Selectable switch allows custom color temperature adjustments on-site across 2700K, 3000K, 3500K, 4100K, and 5000K via the included remote junction box driver.

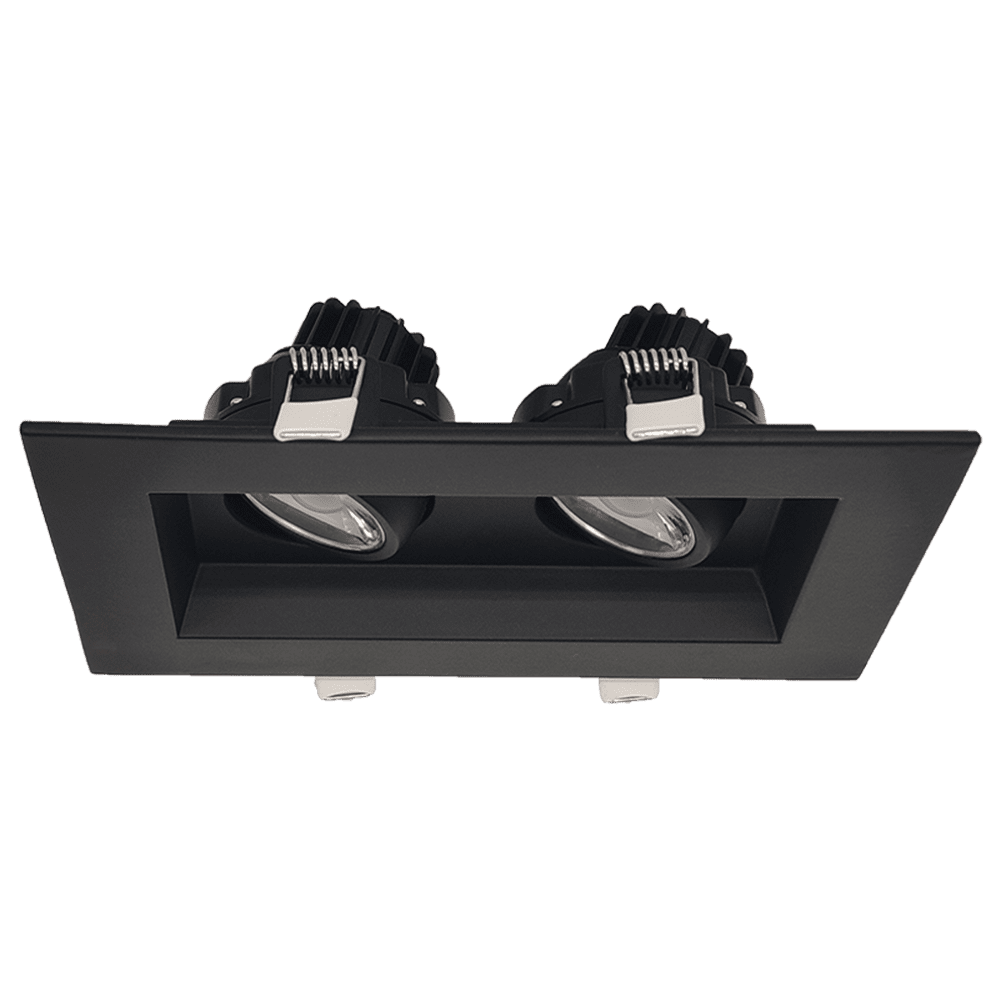

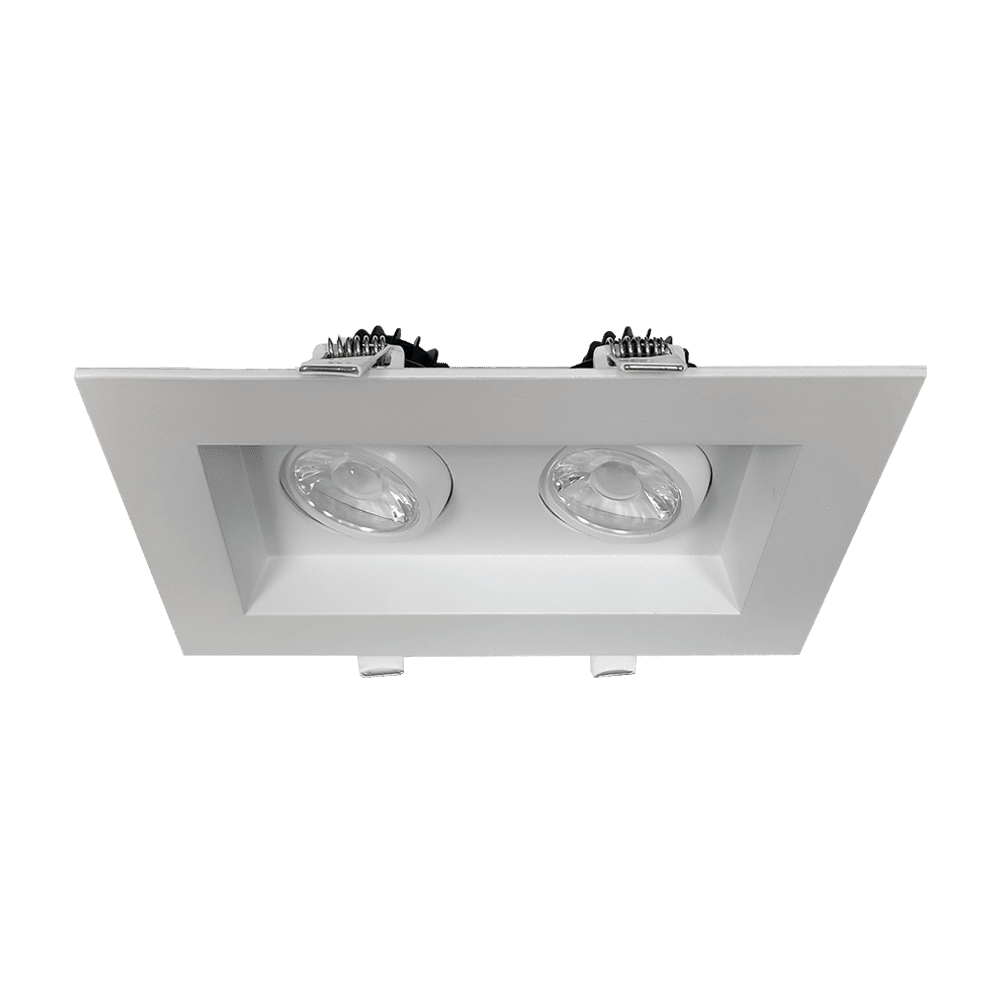

Designed for simple clip-in installation into 3.35" x 6.30" linear ceiling cutouts, the fixture operates on a universal 120-277V AC driver supporting both Triac and 0-10V dimming protocols (100% to 5%). Available in both White (G-48316) and Black (G-48464) trim finishes. Certified ETL and Title 24 Listed, fully IC Rated for direct contact with insulation, approved for Wet Locations, and backed by a 3-year warranty.

Key Features:

• Dual Independent Regressed Gimbals: 2 deep-set, independently adjustable light heads with a 30° tilt angle provide targeted, glare-free accent illumination.

• Energy-Efficient Multi-Head Engine: 15W total system draw yields up to 1,400 total lumens with precise CRI >90 color accuracy.

• 5-CCT Field Selectable: Easily adjust color temperatures on-site between 2700K, 3000K, 3500K, 4100K, and 5000K settings.

• Commercial Grade Universal Driver: 120-277V AC input range supporting dual Triac and 0-10V dimming capabilities (100%–5%).

• Compact Linear Profile: Outer trim measures 5.08" x 8.08" with a 2.70" depth, fitting 3.35" x 6.30" ceiling cutouts via heavy-duty spring clips.

• IC & Wet Location Rated: Safe for direct insulation contact and damp/wet area installations; ETL & Title 24 Listed with a 3-year warranty.

Technical Specification Comparison Table

Packaging & Logistics Specifications

• Master Pack Quantity: 18 Pieces (Both Models)

• Barcodes:

  • White (G-48316): 696304483160

  • Black (G-48464): 696304484648

• Included Accessories: Pre-attached Spring Mounting Clips, Remote Junction Box Driver
