Goodlite Lighting 2" Double Head Regress Multiple Gimbal LED Downlight | 900Lm | CCT Selectable | Goodlite G-48314

$155.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

FCC Certified ETL Certified

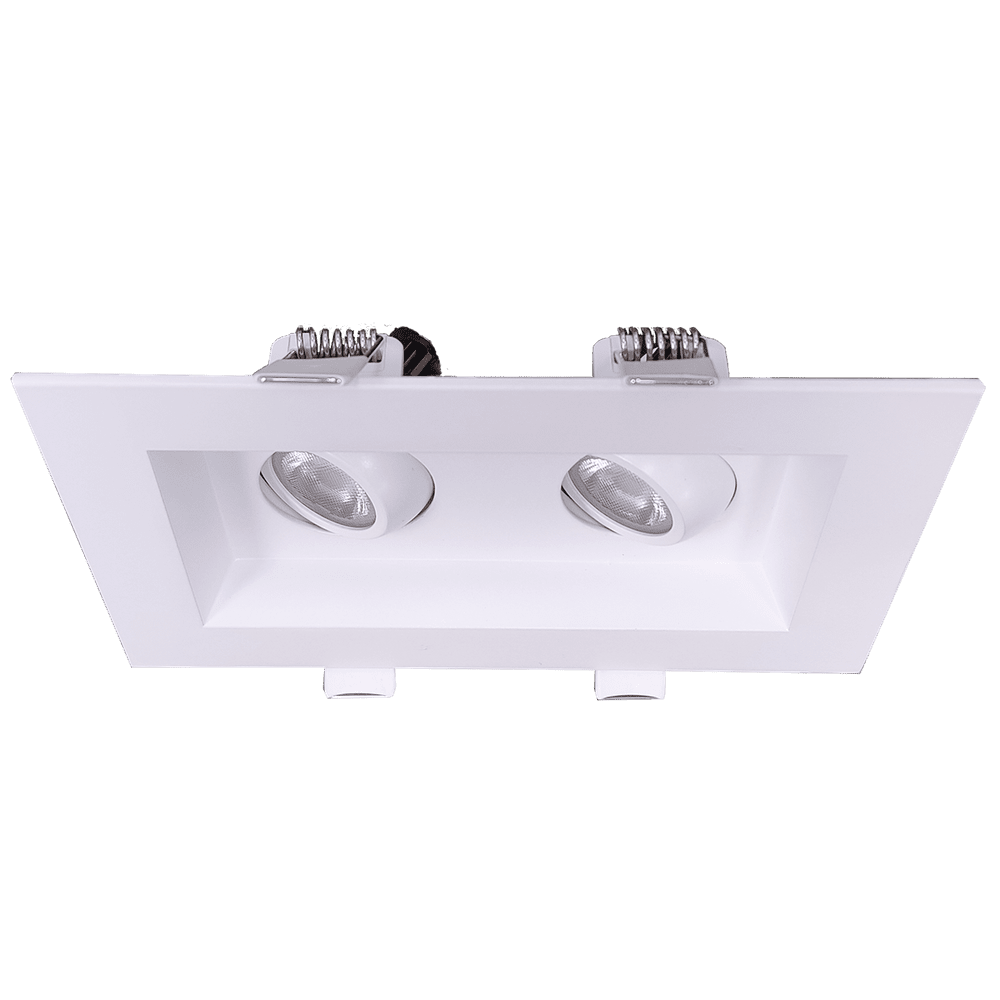

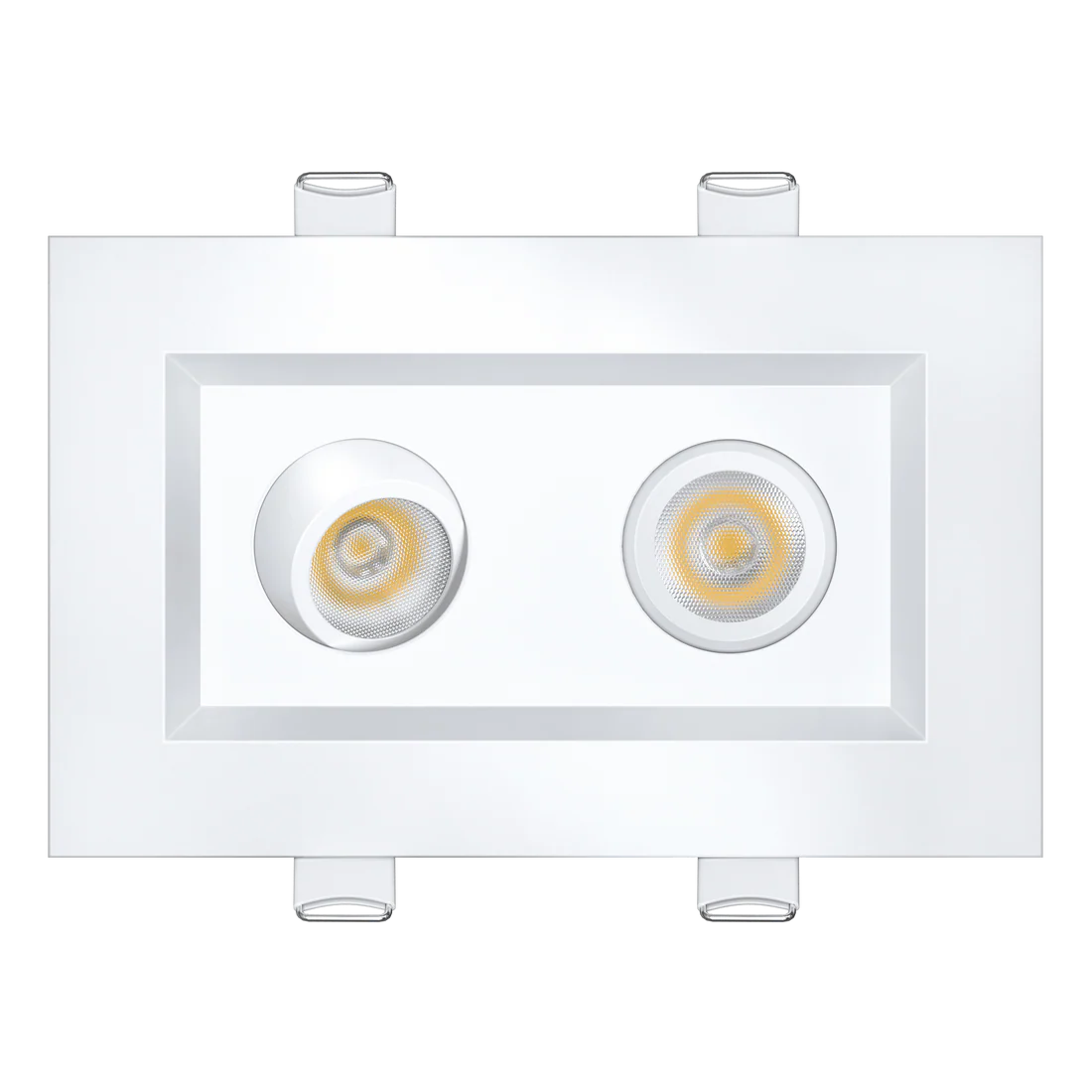

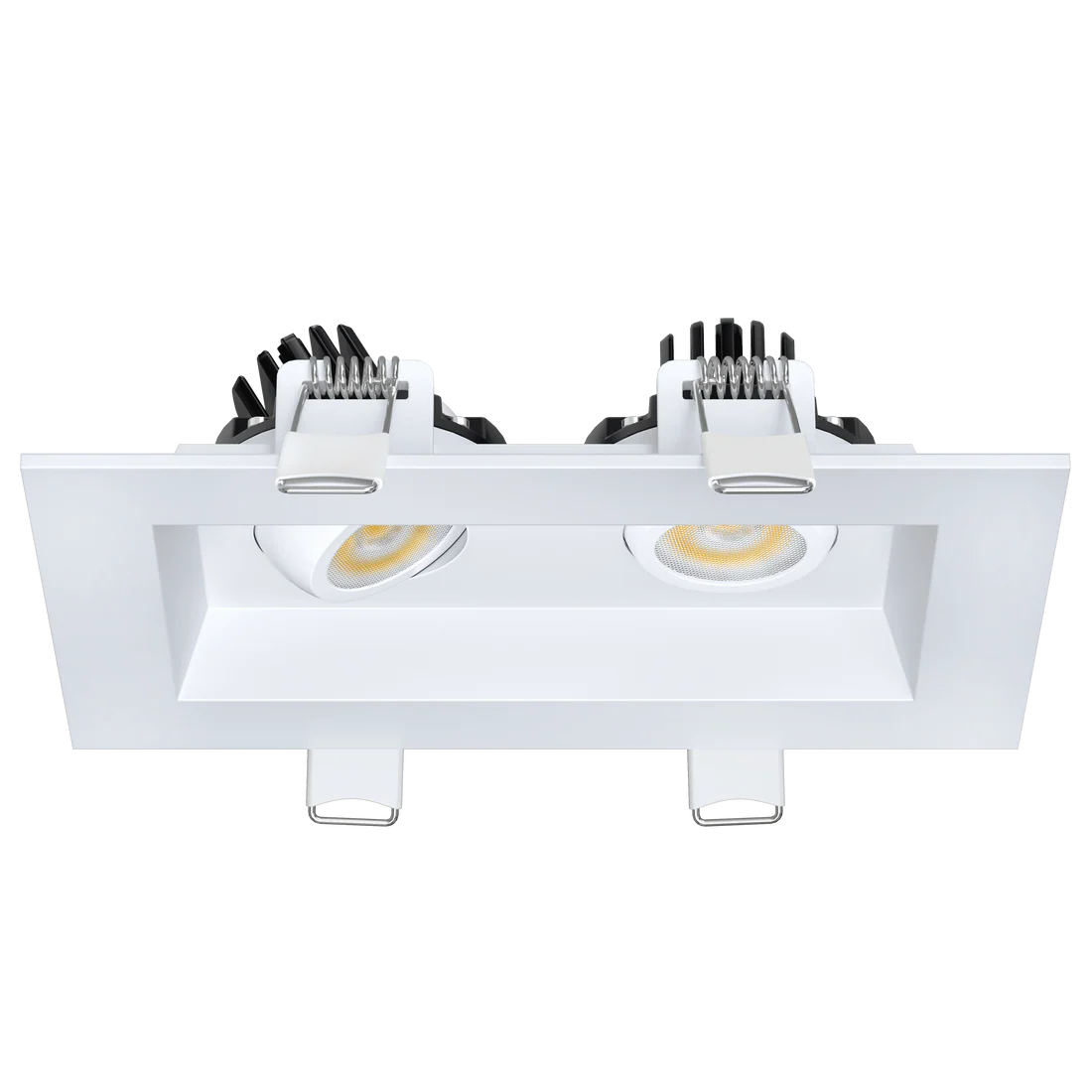

Deliver precision architectural lighting with the Saturn Multiple 2" Double Head Regressed Gimbal LED Recessed Light. Featuring two independently adjustable 2-inch light modules housed within a sleek rectangular trimmed frame, this linear fixture enables dual-directional light aiming—making it ideal for highlighting artwork, architectural features, retail displays, and task areas in both residential and commercial spaces.

Operating at a low total system wattage of 10W, the fixture produces 900 total lumens (450 lumens per head) with a focused 40° beam spread per module. Each regressed gimbal head features a 30° vertical tilt angle, positioning optics deep within the housing to drastically minimize visual glare. Integrated 5-CCT Field Selectability allows installers to switch color temperatures on-site, selecting between 2700K, 3000K, 3500K, 4100K, and 5000K via a convenient switch on the junction box.

Finished in clean White (G-48314), this fixture features an ultra-shallow 2.30" profile that installs quickly into rectangular 2.70" x 5.12" ceiling cutouts using heavy-duty spring clips. Engineered with a universal commercial-grade driver operating on 120-277V AC voltage, it supports both Triac and 0-10V dimming protocols (100% to 5% range). The fixture is IC-rated for direct contact with insulation, certified California Title 24 Compliant and ETL Listed, and rated for Wet Locations.

Key Features:

  • Dual Independent Gimbal Heads: Two individually adjustable 2" light modules with 30° tilt for targeted multi-directional aiming.

  • Deep Regressed Anti-Glare Optics: Recessed modules shield LED engines to control glare while delivering 900 total lumens.

  • 5-CCT Field Selectable: Customize color temperature on-site between 2700K, 3000K, 3500K, 4100K, and 5000K.

  • Universal Voltage & Dual Dimming: Operates on 120-277V AC with support for Triac and 0-10V dimming controls (100%-5%).

  • Wet Location & IC Rated: Safe for direct insulation contact and approved for wet or damp indoor and outdoor installations.

  • Compact Low-Profile Design: Fits a 2.70" x 5.12" cutout with a 2.30" shallow depth; ETL Listed and Title 24 compliant with a 3-year warranty.

Technical Specification Table

Technical Specification 2" Double Head Regressed Multiple Gimbal (White)
Product Code G-48314
Description Code R2/10W/GR/M2/LED/5CCT
Finish White
Shape & Style Rectangular Trimmed Multiple Gimbal (2-Head)
Diffuser Clear
Head Count 2 Light Modules
Total Wattage 10W
Lumen Output 900 Total Lumens (450 Lumens per head)
Selectable CCT 27, 30, 35, 41, 50K
CRI CRI >90
Beam / Optics 40° Beam Spread / 30° Tilt Angle (Per Head)
Input Voltage 120-277V AC
Output Current 230mA
Dimming Type & Range Triac or 0-10V Dimming (100% - 5%)
Cutout Dimensions 2.70" x 5.12"

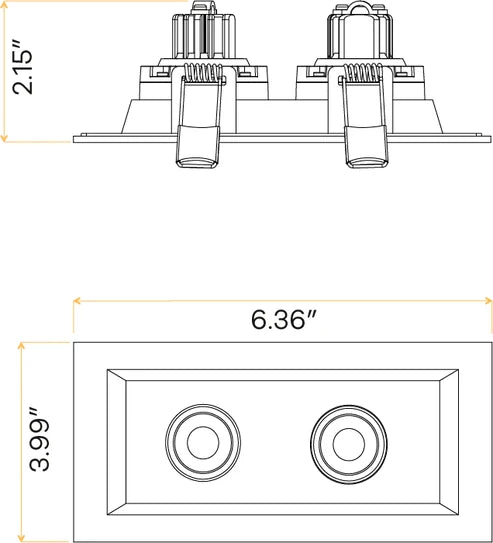

Outside Dimensions (OD) 3.99" x 6.39"
Fixture Height 2.30"
Mounting Type Clip-in
Location & IC Rating Wet Location / IC Rated
Classifications & Warranty ETL, Title 24 Listed / 3-Year Warranty

Packaging & Logistics Specifications

  • Master Pack Quantity: 18 Pieces

  • Barcode: 696304483146

  • Included Accessories: Integrated Junction Box / Universal Driver & Heavy-Duty Clip-In Spring Clips
