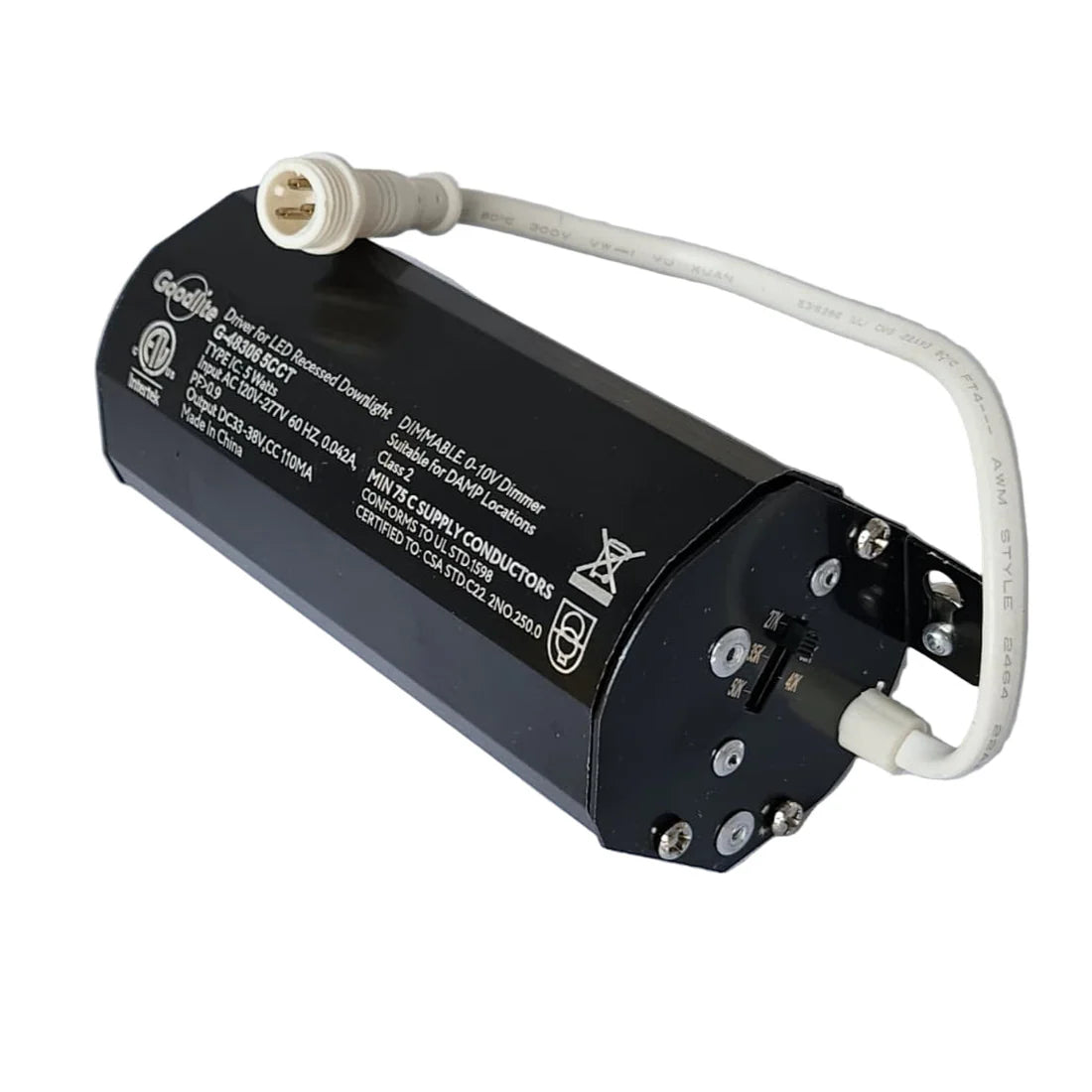

The G-48306 5W 120–277V 3-Pin LED Driver is a compact, high-efficiency power supply engineered for modern LED lighting systems requiring stable low-wattage output. Designed to operate across a universal input range of 120–277V, this driver ensures reliable performance in residential, commercial, and industrial applications. Its 3-pin connectivity provides secure, simple, and consistent wiring compatibility with compatible LED modules and retrofit downlights.

With Selectable CCT support (2700K–5000K), the driver enables flexible integration with multi-CCT fixtures, making it ideal for contractors and installers who require adaptable lighting solutions. The 110mA output current delivers smooth, flicker-free illumination, while its support for both Triac and 0–10V dimming ensures compatibility with a wide range of dimming systems.

Rated for damp locations, ETL Listed, and backed by a 3-year warranty, the G-48306 LED driver delivers dependable, long-lasting performance in new construction, remodel, and retrofit projects. Its compact housing makes installation fast and efficient, even in tight ceiling or junction box spaces.

📊 TECHNICAL SPECIFICATIONS

General Specifications

• Product Code: G-48306

• Description: 5W / 277V / 3-Pin Driver

• Master Pack: 50

• Barcode: 696304483061

Light Specs

• Selectable CCT Compatibility: 2700K / 3000K / 3500K / 4100K / 5000K

Electrical Specifications

• Wattage: 5W

• Input Voltage: 120–277V

• Output Current: 110mA

• Dimming: Triac or 0–10V

• Connector Type: 3-Pin

Compliance & Safety

• Location Rating: Damp Location

• Warranty: 3 Years

• Certification: ETL Listed

Performance & Applications

• Ideal For: LED downlights, low-wattage fixtures, retrofits, multi-CCT modules

• Features: Stable output, wide-range input voltage, compact design, reliable dimming performance
