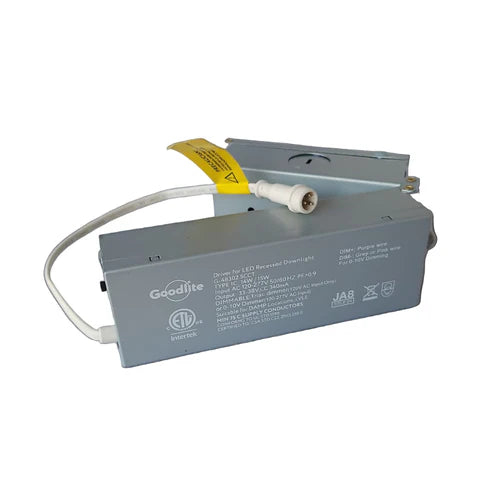

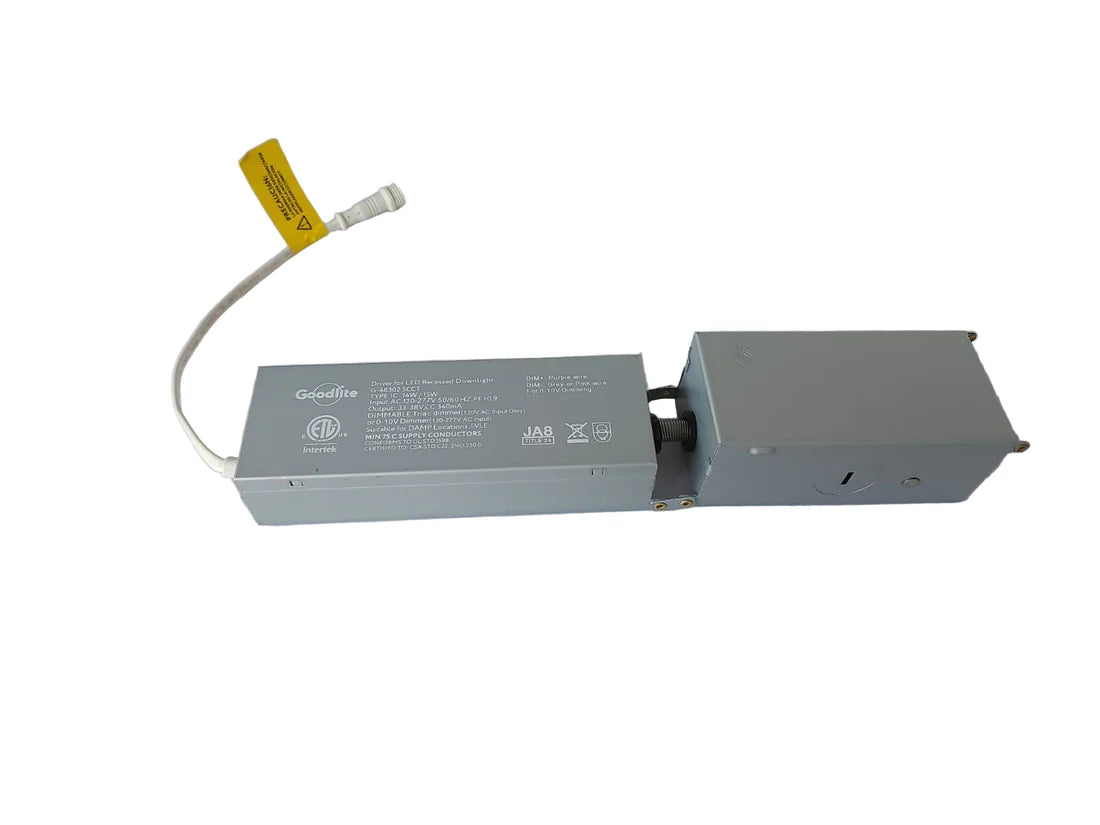

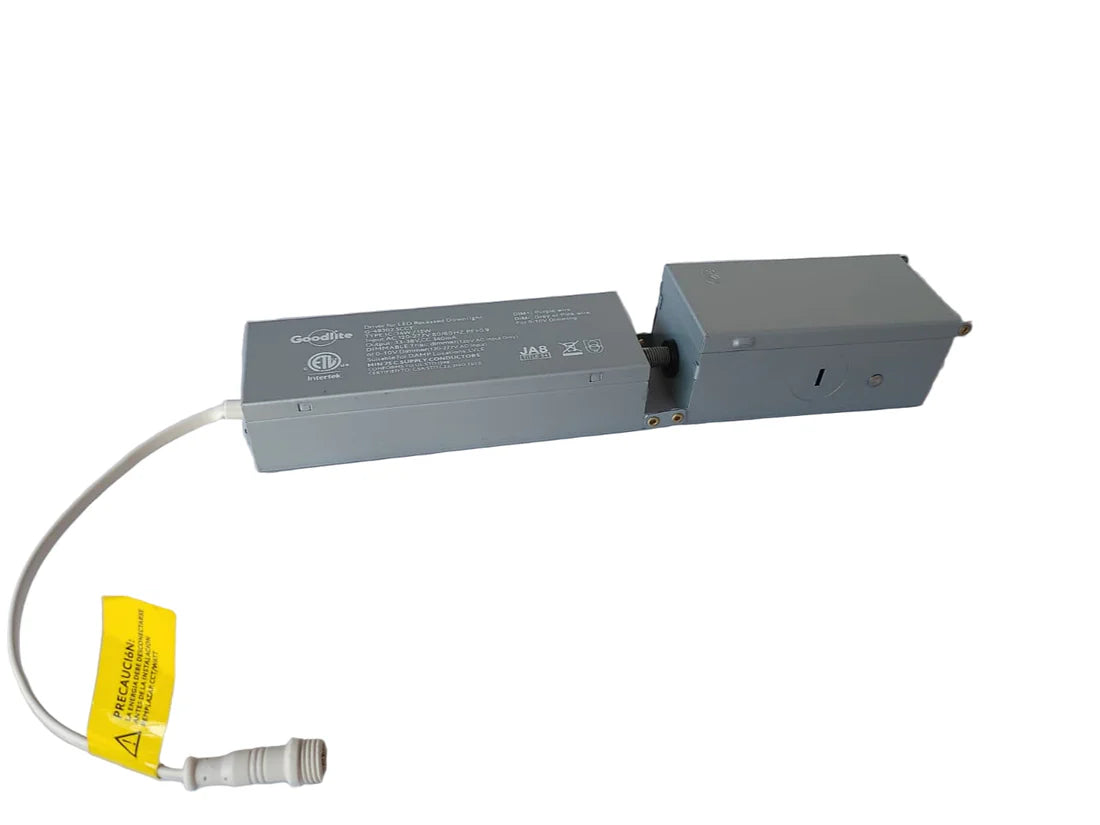

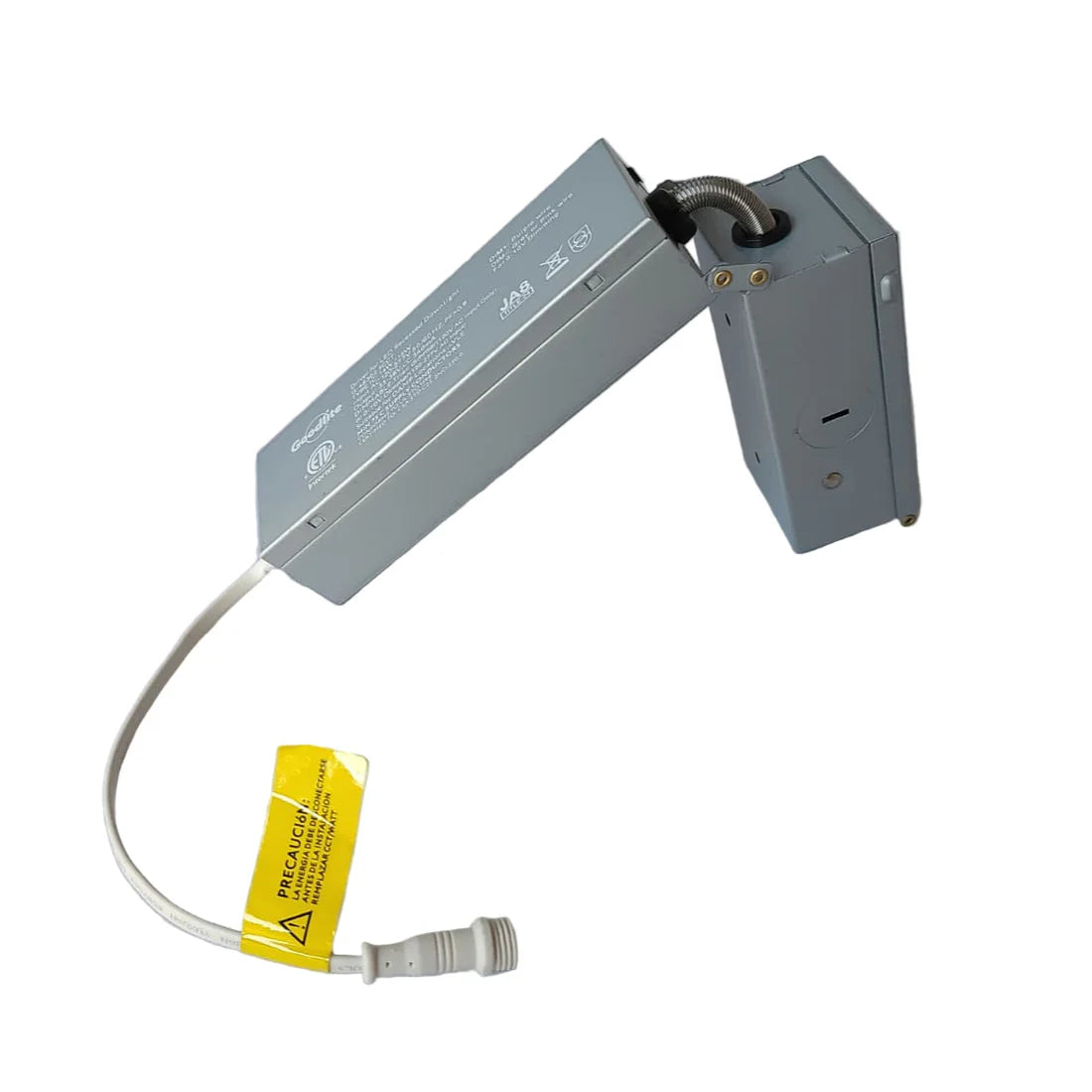

15W LED Driver 3 PIN | 120/277V | Dimmable | CCT Selectable | Goodlite G-48302

The 15W 120-277V 3-Pin LED Driver (Model G-48302) provides powerful, efficient, and stable output for LED downlights and multi-watt lighting systems. Its universal 120–277V input range ensures compatibility with a wide range of installations, from homes to commercial environments.
The driver supports Selectable CCT LED modules, offering multi-temperature lighting flexibility (27K–50K). With Triac and 0-10V dimming, it delivers smooth dimming performance with nearly all modern control systems.
Reliable, long-lasting, and ETL-listed, this driver is engineered to operate safely in damp locations and features a 3-year warranty. Its 340mA output current makes it ideal for high-brightness LED fixtures requiring consistent and efficient power.

Technical Specifications

General Specs

• Product Code: G-48302

• Description: 15W/277V/3PIN/Driver

• Barcode: 696304483023

• Master Pack: 50 Units

Light Specs

• Color Temperature: Selectable CCT

• Options: 2700K, 3000K, 3500K, 4100K, 5000K

Electrical Specs

• Wattage: 15W

• Input Voltage: 120–277V

• Output Current: 340mA

• Dimming Type: Triac or 0-10V Dimming

Compliance

• Location Rating: Damp Location

• Classification: ETL Listed

• Warranty: 3 Years
