1" Interchangeable Module LED Downlight | 350Lm | CCT Selectable | Goodlite G-48170

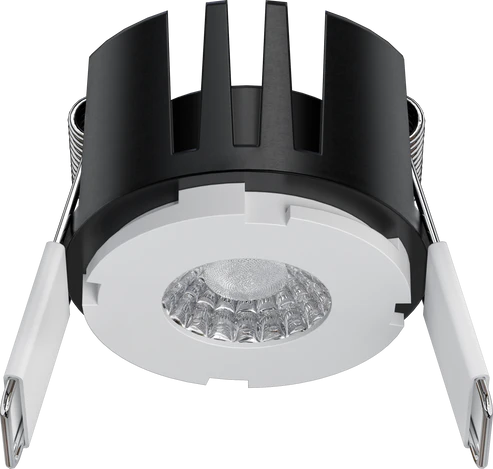

Deliver high-performance, ultra-discrete architectural illumination with the Aster 1" 5W LED Interchangeable Module (Model G-48170, Ordering Code: M1/5W/LED/5CCT). Engineered for seamless integration into micro-aperture recessed fixtures and tight architectural details, this ultra-compact 1-inch LED engine features an interchangeable optics module system with a default clear diffuser lens and a 40° beam angle. Built with universal mounting capability, it delivers refined, low-glare accent and general illumination ideal for residential niches, display cabinets, hospitality environments, and accent lighting.

Generating 350 lumens using only 5W of power, this module operates on standard 120V line voltage (110mA output) with smooth TRIAC dimming performance (100% down to 5%). It features field-selectable 5-CCT color tuning (2700K, 3000K, 3500K, 4100K, and 5000K) backed by high color accuracy (CRI >90). Designed to meet strict commercial building and electrical codes, the module is IC Rated, Wet Location Rated, FT6 Plenum Rated, California Title 24 Listed, and backed by an ETL certification and a 3-year warranty.

Key Features:

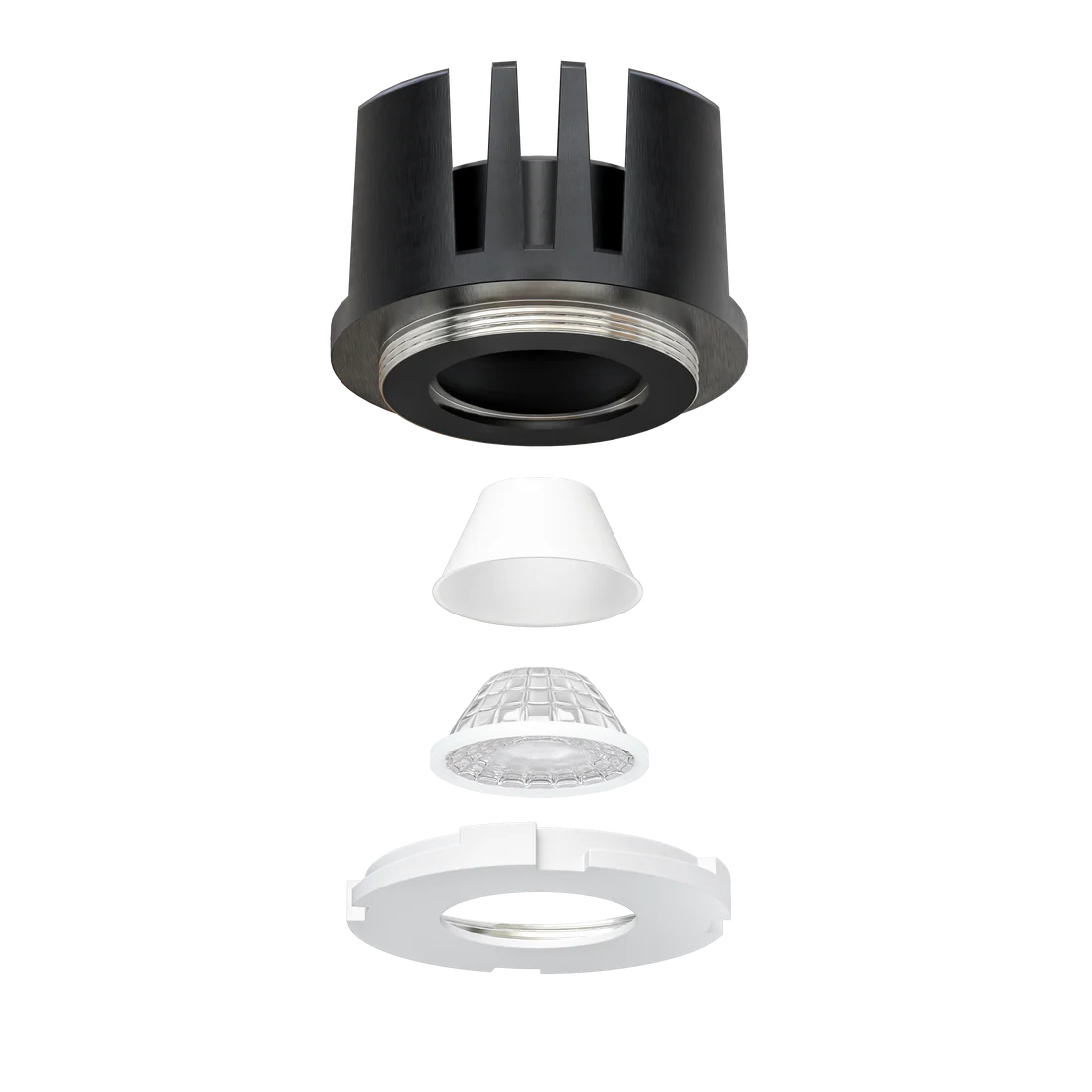

• Ultra-Compact Interchangeable Module: Modular 1-inch micro-aperture design featuring a default clear diffuser and a 40° beam spread.

• 5-CCT Field Selectable: Easily toggle between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures on site.

• Efficient Micro Output: Delivers 350 lumens at just 5W with high color accuracy (CRI >90).

• 120V TRIAC Dimmable: Operates on standard 120V AC input with smooth TRIAC phase-cut dimming down to 5%.

• Universal Mounting: Designed for flexible, hassle-free installation across compatible micro-trim styles.

• Comprehensive Safety & Compliance: IC Rated for direct insulation contact, Wet Location Rated, FT6 plenum wiring compliant, and California Title 24 Listed.

Technical Specification Table

Packaging & Logistics Specifications

• Individual Barcode / UPC: 990379481701

• Master Case Pack Quantity: 18 Units per Master Pack
