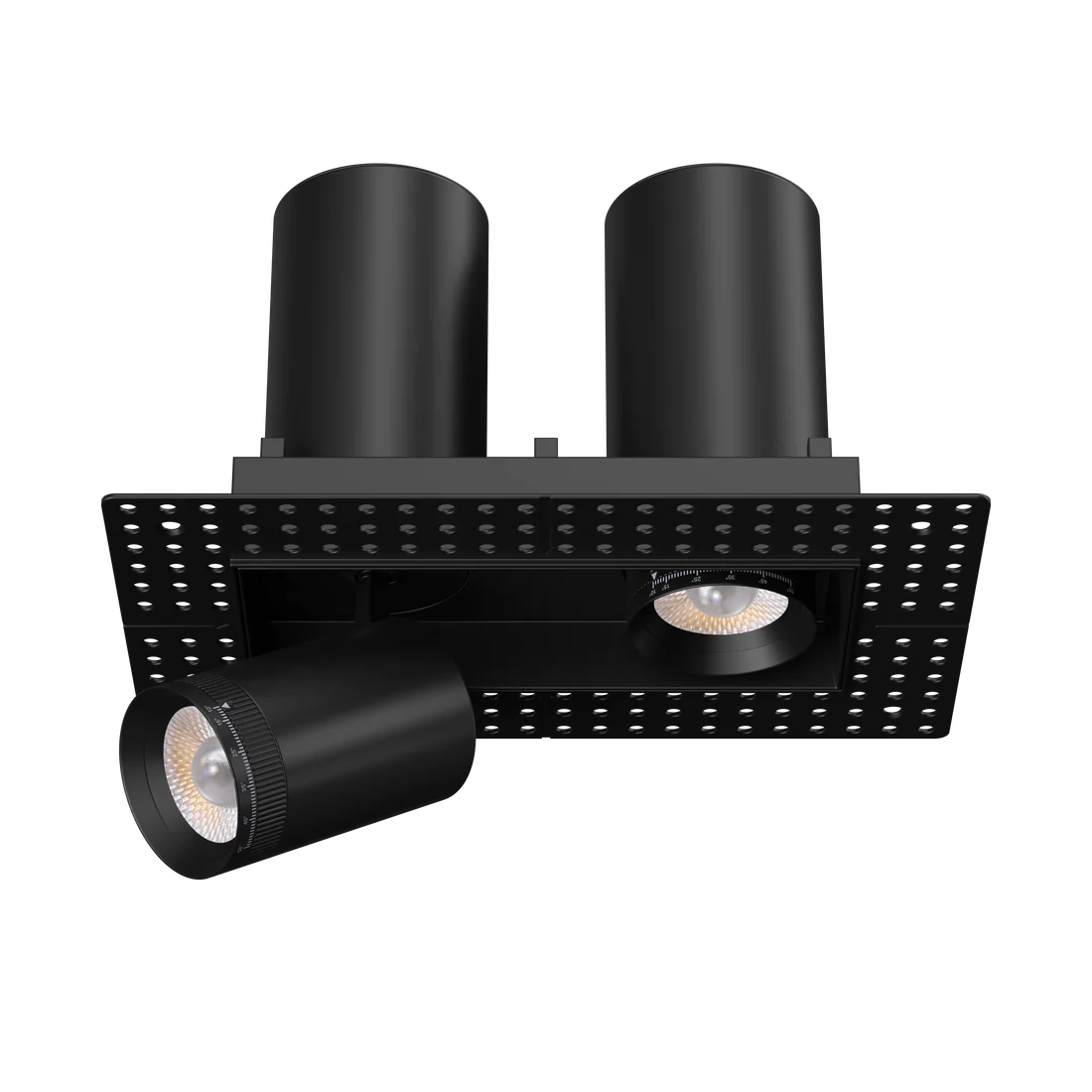

3 Inch Double Head Retractable Trimless Cylinder LED Downlight | 1.900Lm | 120/277V | CCT Selectable | Pulsar Series | Goodlite G-32522/532

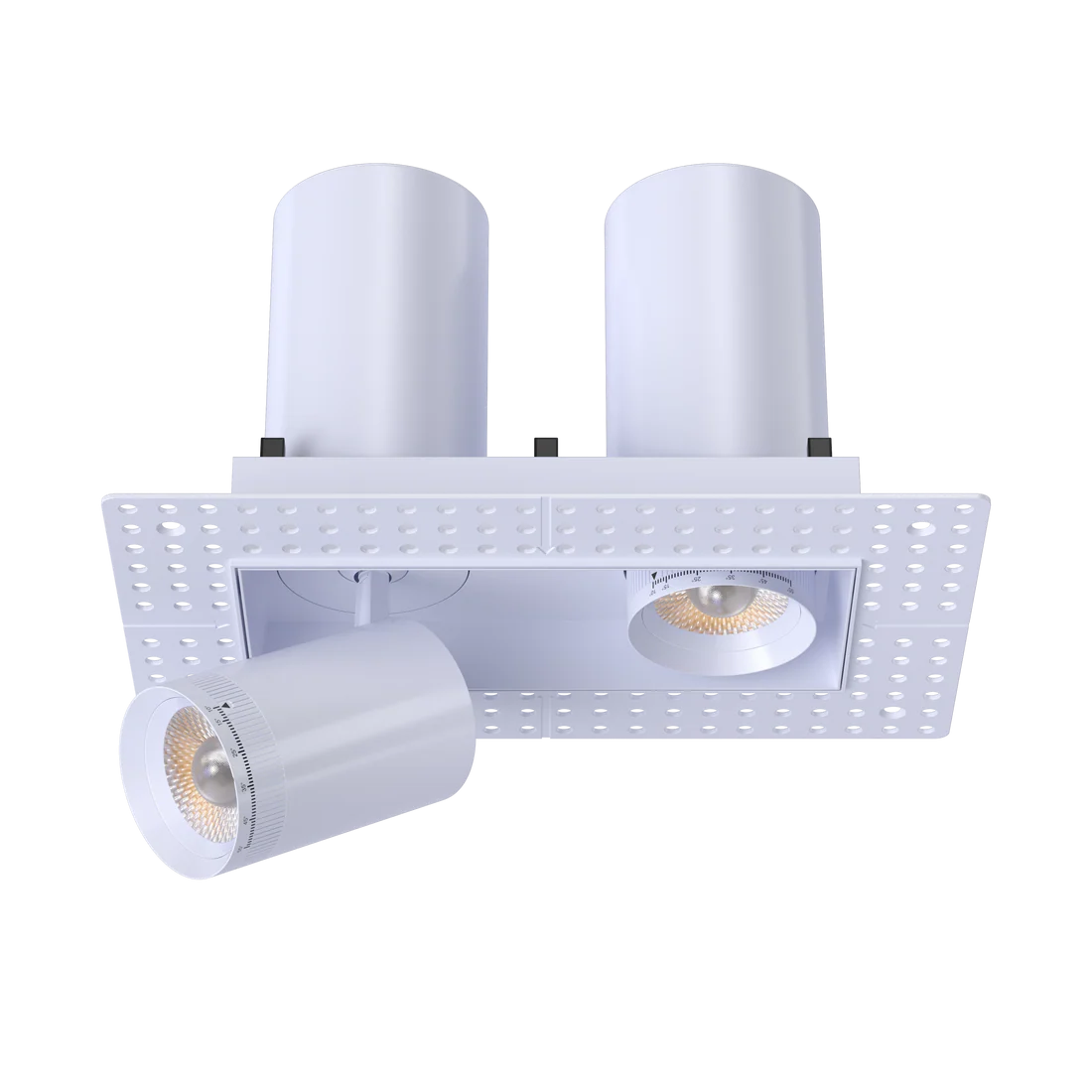

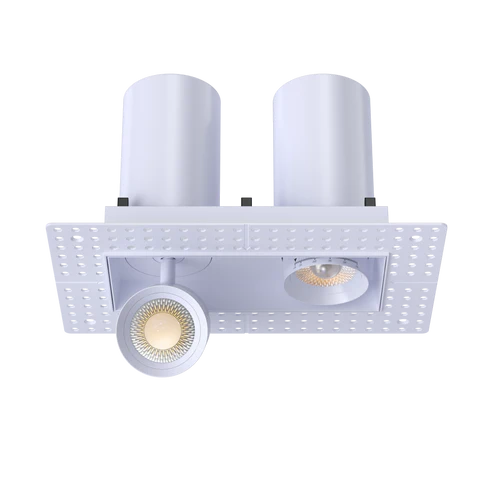

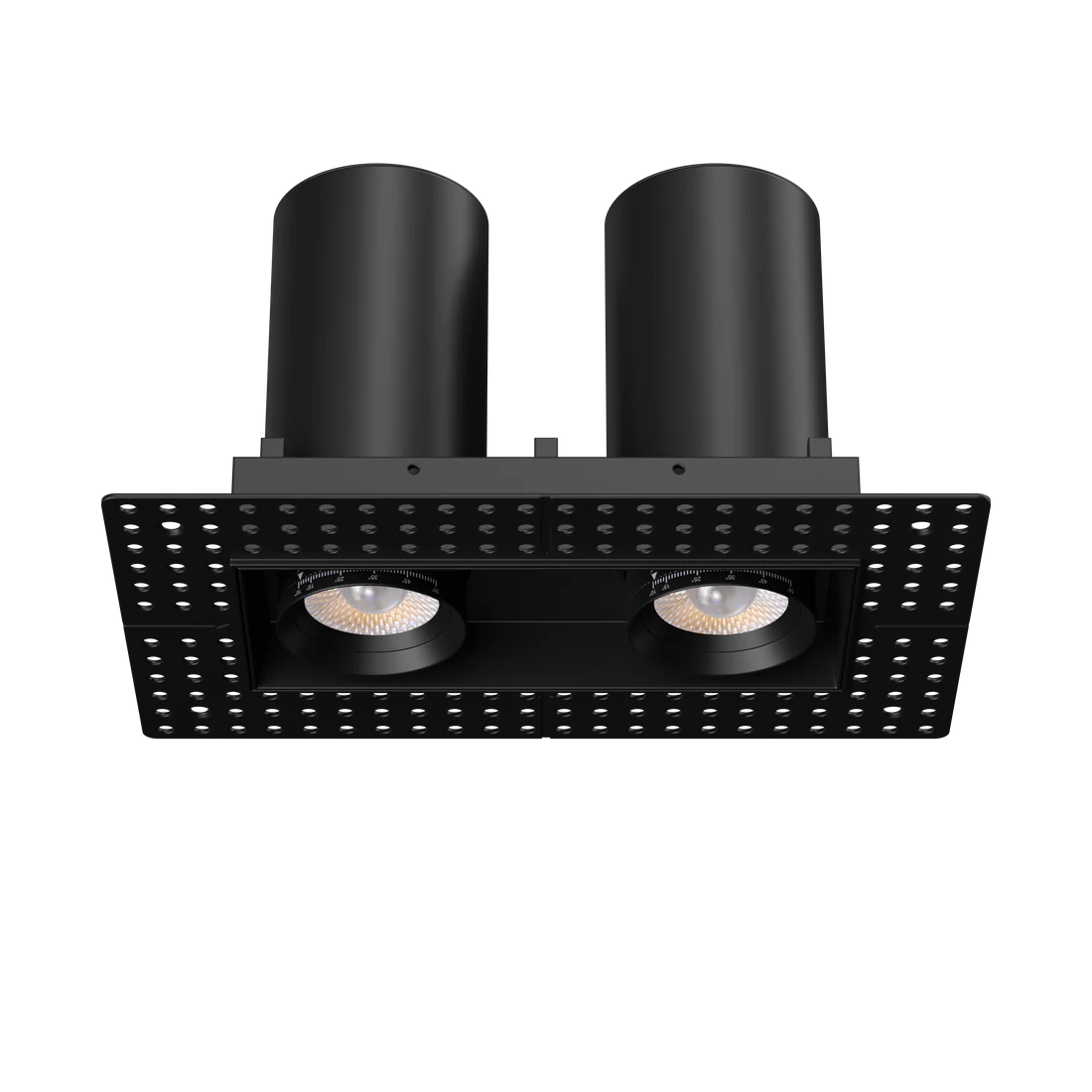

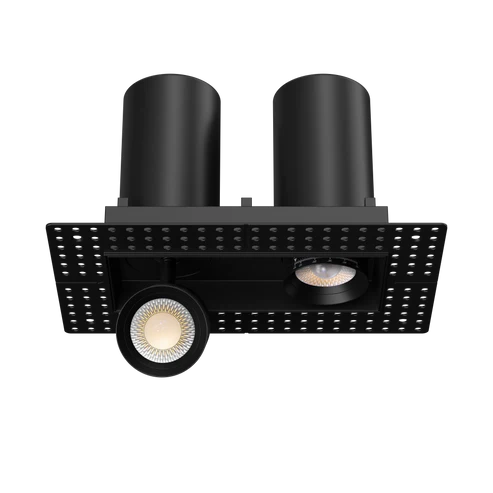

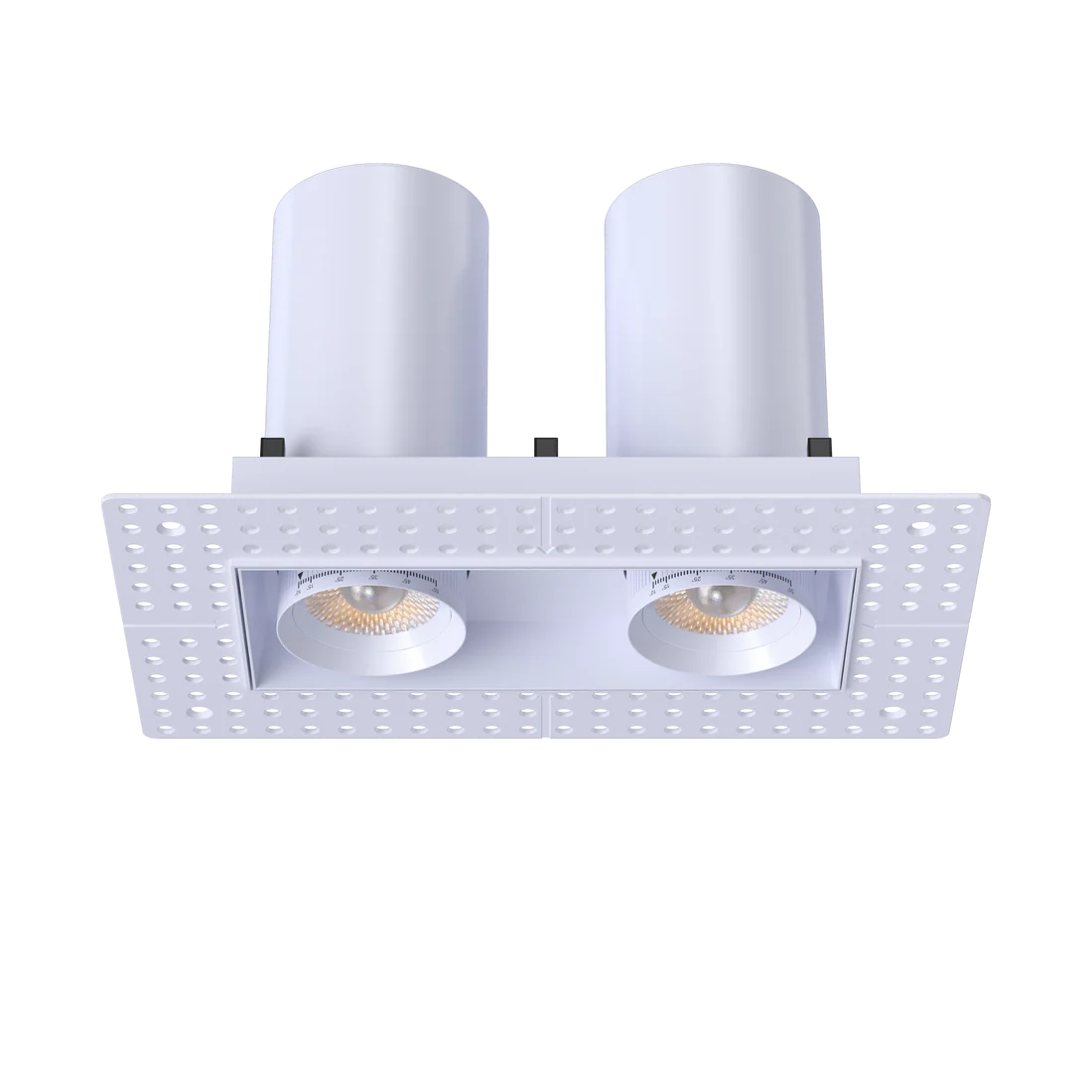

Deliver seamless structural integration, linear elegance, and independent dual-zone accent lighting with the Pulsar 3-Inch Double Head Retractable Trimless Multiple Series. Engineered specifically for high-end design environments where visible flanges or trim rings conflict with minimalist concepts, this premium architectural fixture is available in a clean textured white (Product Code: G-32522) and a deep matte black (Product Code: G-32532). It features an advanced trimless mud-in plaster frame that is installed directly over drywall and mudded flush, allowing the housing frame to blend completely into the surrounding ceiling structure for a continuous, edge-free rectangular opening.

Concealed within this high-end plaster frame are two independently adjustable telescoping light assemblies. Every modular lighting core can pull completely down past the ceiling plane to deliver an extensive 90° vertical drop tilt angle paired with an unrestricted 360° panning horizontal rotation. This exceptional movement lets designers effortlessly target two completely separate visual features—such as opposing artwork walls or high-contrast product displays—from a single clean ceiling opening. Enhancing this functional flexibility is a precise mechanical zoom ring integrated into each lens barrel, allowing field crews or users to smoothly shift individual beam spreads anywhere from a sharp 20° narrow spot up to a wide 55° ambient flood with a simple manual twist.

Consistent Performance & Multi-Volt Intelligence:

Drawing an ultra-efficient combined 24W electrical footprint (12W per independent module), the dual lighting cores generate a brilliant total of 1900 lumens of intentional light (950 lumens per head). Boasting a premier museum-grade fidelity score of CRI > 90, it ensures that subtle textures, accurate paint tones, and fine interior finishes retain maximum saturation and life. The system's universal 120-277V internal electronic driver regulates power safely at a stable 530mA output current, connecting smoothly with residential Triac or commercial 0-10V automated control networks for seamless architectural scene dimming.

Key Features:

• Seamless Trimless Mud-In Aesthetic: Uses a heavy-duty perimeter mesh plaster ring that secures perfectly into the sheetrock ceiling, leaving a borderless, integrated linear architectural layout.

• Independent Dual Scoping Assemblies: Both modular lighting engines adjust completely on their own, quickly switching between flush, low-glare downlighting and extended, deep-angle accent spotlighting.

• Continuous Manual Zoom Customization: Fine-tune individual lighting fields dynamically on-site anywhere from a concentrated 20° spotlight to a wide 55° flood channel.

• Uncompromised Safety Metrics: Manufactured with an FT6 Plenum-rated wire jacket and heavy-duty Wet Location water seals. The fixture holds a true certified IC Rating, certifying it 100% safe for direct contact with structural attic insulation without needing a secondary protective thermal box.

Technical Specification
