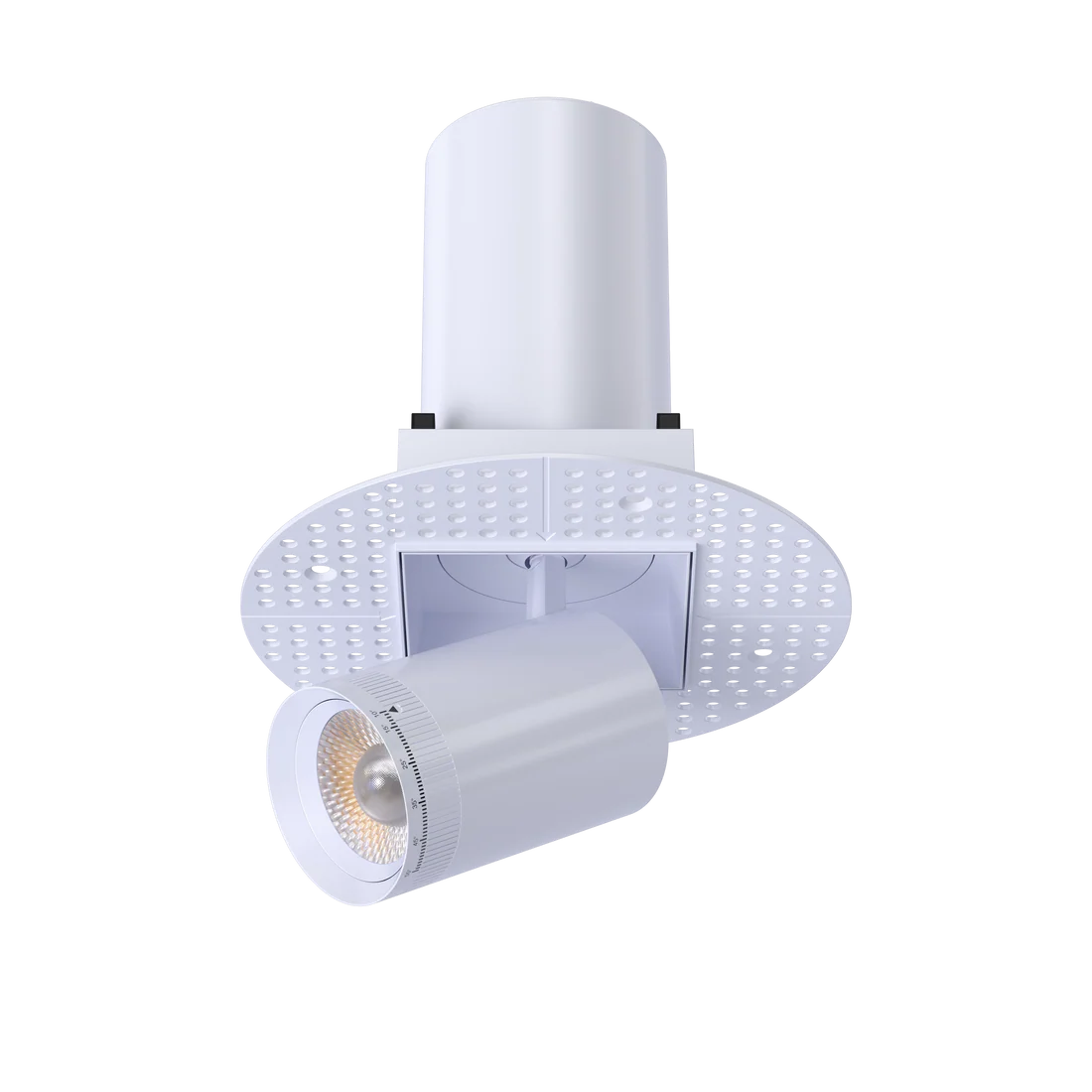

3 Inch Square Retractable Trimless Cylinder LED Downlight | 1K Lm | 120/277V | CCT Selectable | Pulsar Series | Goodlite G-32521/531

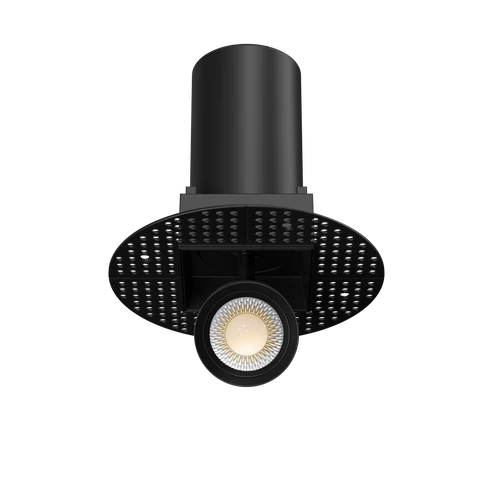

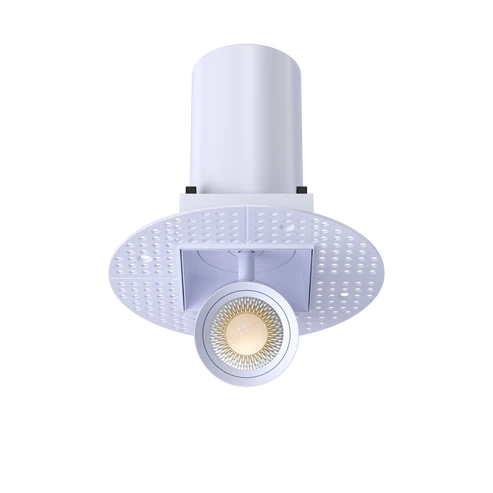

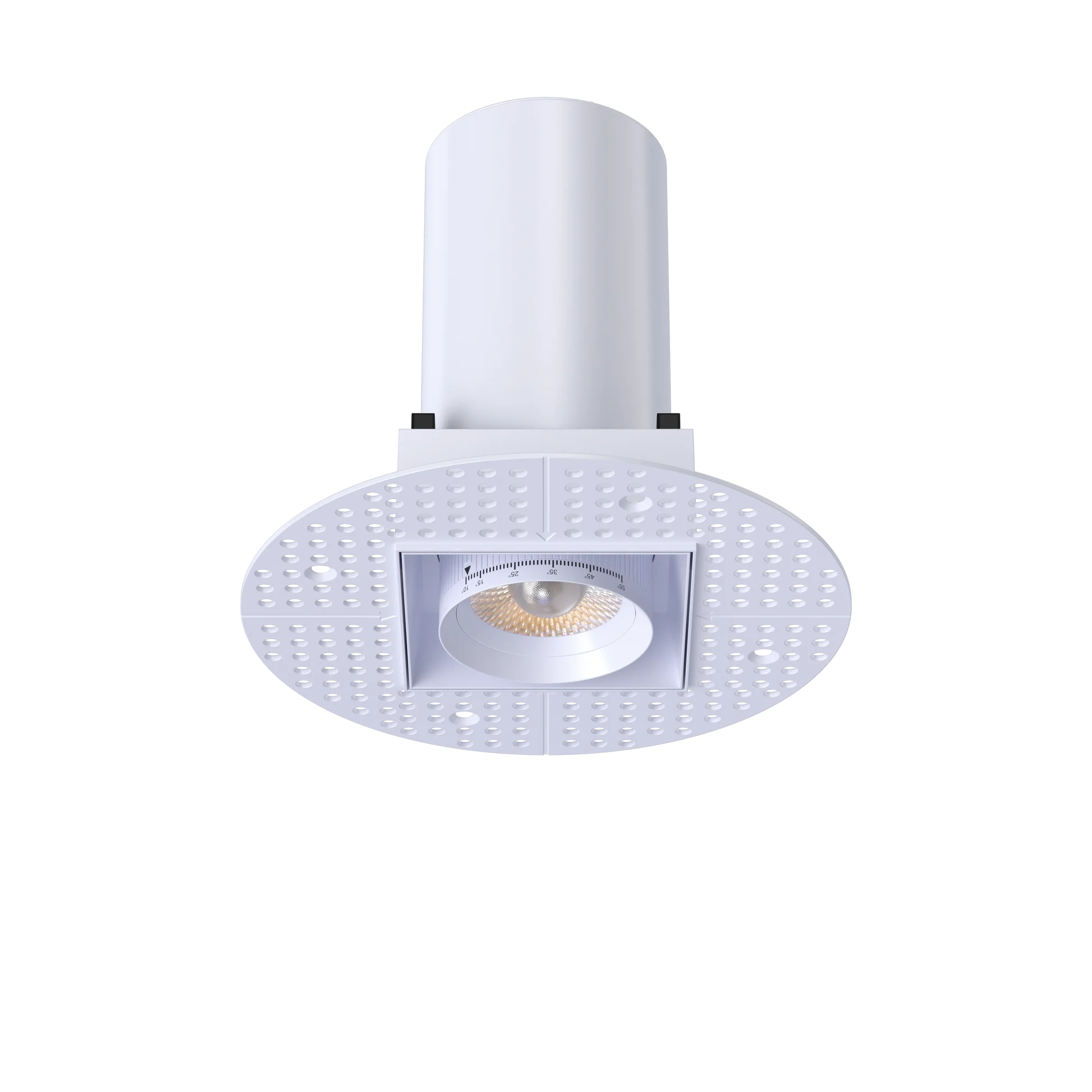

Bring clean, edge-free geometry and flexible spatial targeting to your high-end design projects with the Pulsar 3-Inch Square Retractable Trimless Series. Available in an elegant architectural white (Product Code: G-32521) and a bold matte black (Product Code: G-32531), this premium series is engineered for seamless minimalist layouts where the trim plate completely disappears into the ceiling line. Featuring a professional trimless mud-in plaster frame, the fixture flange is mounted directly to the sheetrock and plastered over, leaving a razor-sharp, smooth square opening with no visible outer borders or metal lips.

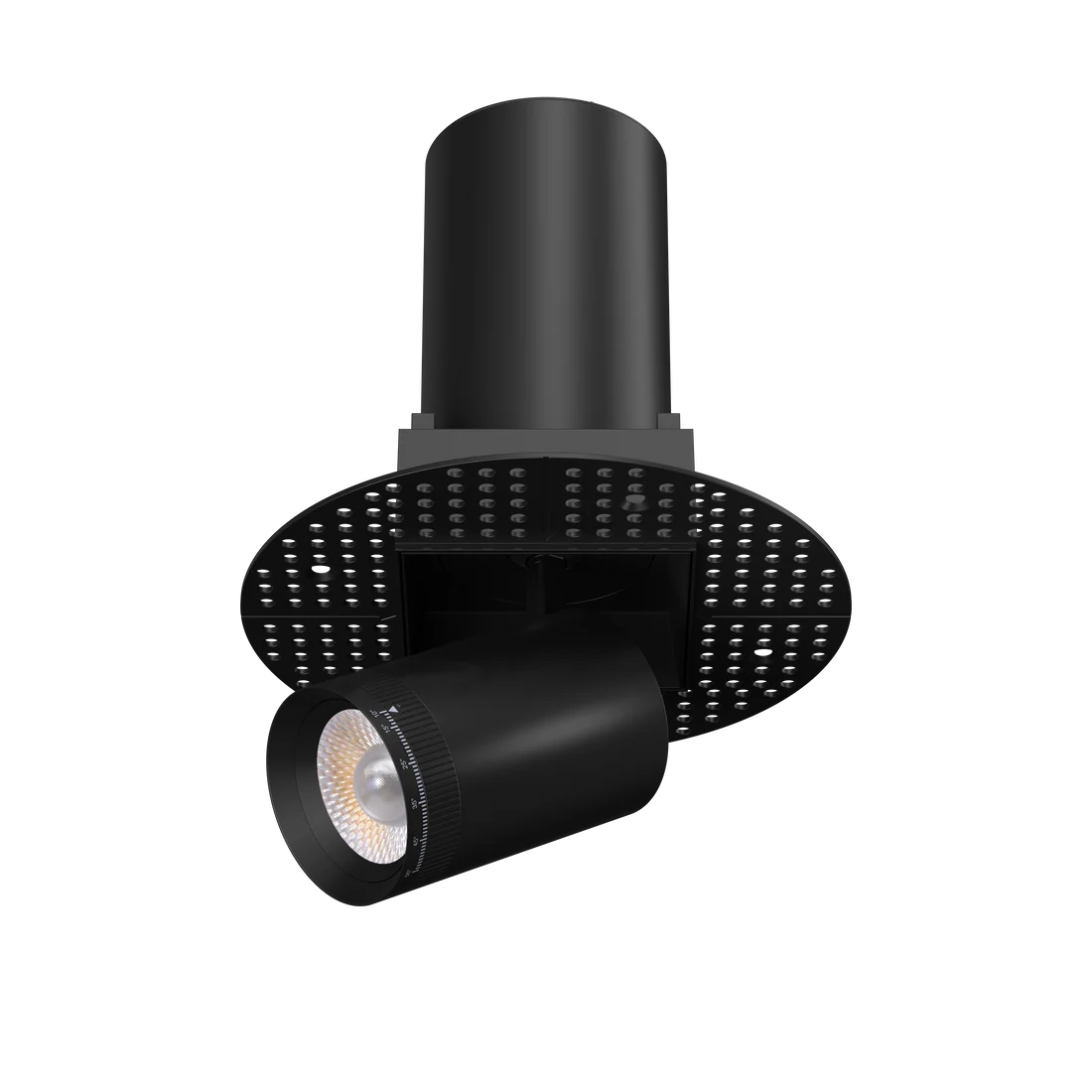

Tucked into this clean square frame is an advanced telescoping mechanical assembly built for total tracking versatility. The inner optical cylinder can pull entirely out of its recessed channel to drop down to a full 90° perpendicular vertical tilt angle and execute smooth 360° horizontal rotation. This unhindered spatial range empowers the Pulsar square series to seamlessly pivot from a low-glare flat downlight to a deep-angle accent spotlight or high-performance sloped ceiling wall washer. Adding to its advanced optical tier is an integrated mechanical zoom lens ring—allowing lighting technicians or end-users to focus individual beams anywhere from a tight 20° spot up to a wide 55° flood distribution with a quick, manual twist of the internal barrel.

Consistent Performance & Multi-Volt Intelligence:

Operating on a highly efficient 12W electrical profile, each square trimless fixture projects 1000 lumens of clean, high-intensity light. Boasting an exceptional fidelity index score of CRI > 90, it ensures that natural colors, rich textures, and premium interior elements look incredibly faithful and vibrant. The internal universal multi-volt electronic driver handles incoming energy smoothly at a stable 270mA output current, maintaining full architectural compatibility with residential Triac or commercial 0-10V control networks for continuous dimming performance.

Key Features:

• Flawless Trimless Plaster-In Aesthetic: Outfitted with a specialized mudding mesh frame that installs completely flush into the sheetrock, leaving an edge-free, built-in square architectural channel.

• Retractable Multi-Axis Scoping: The inner light cylinder extends downward to smoothly alternate between standard low-glare downlighting and high-clearance directional accent spotlighting.

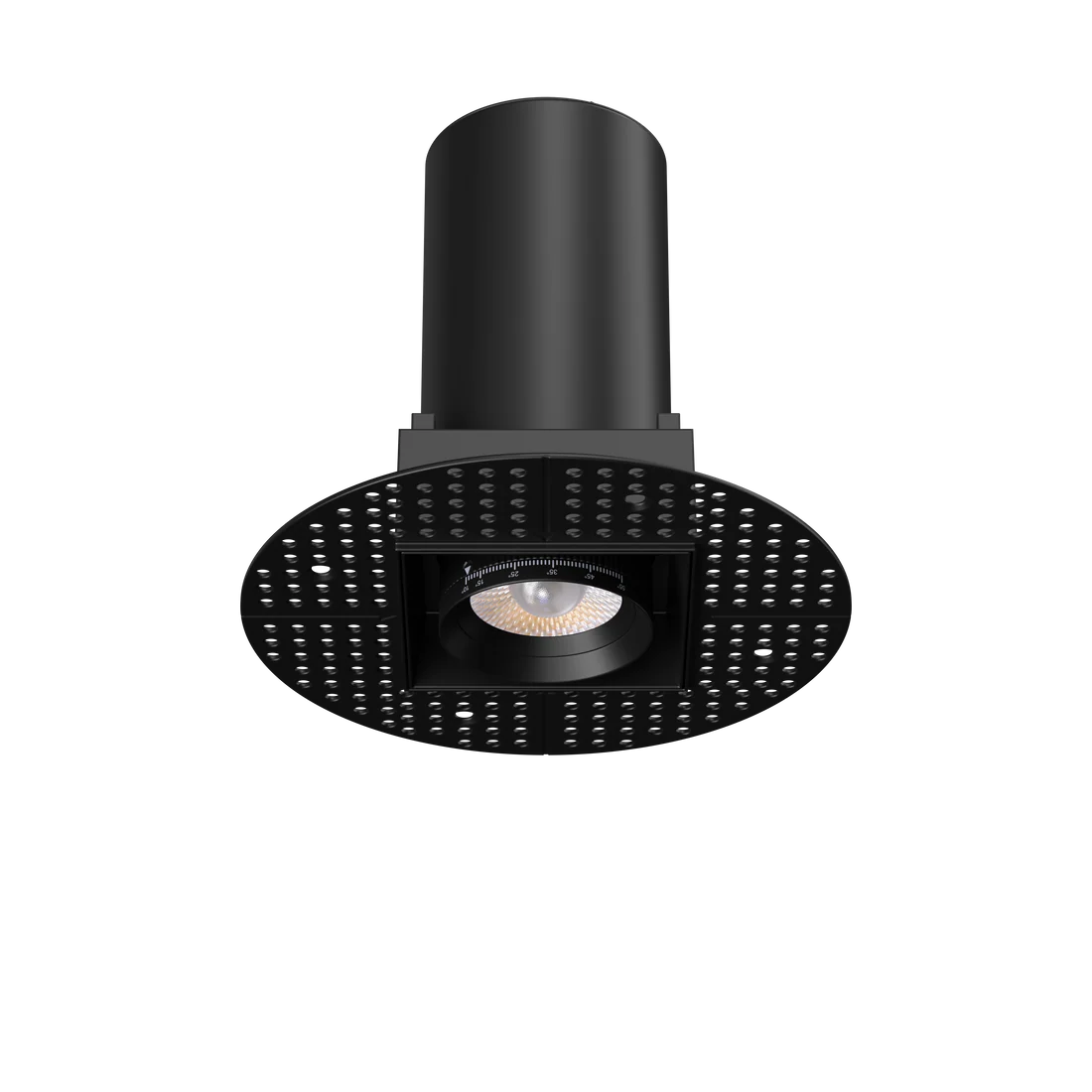

• Continuous Manual Zoom Focusing: Modifies light fields easily on-site from a highly concentrated 20° narrow beam to an expansive 55° wide ambient flood.

• Uncompromised Structural Safety: Manufactured with an FT6 Plenum-rated wire jacket and comprehensive Wet Location environmental seals. The module holds a full certification IC Rating, ensuring complete safety when in direct contact with standard ceiling framing insulation without requiring an extra thermal safety box.

Technical Specification
