3 Inch Four Head Retractable Cylinder LED Downlight | 3.800Lm | 120/277V | CCT Selectable | Pulsar Series | Goodlite G-32504/514

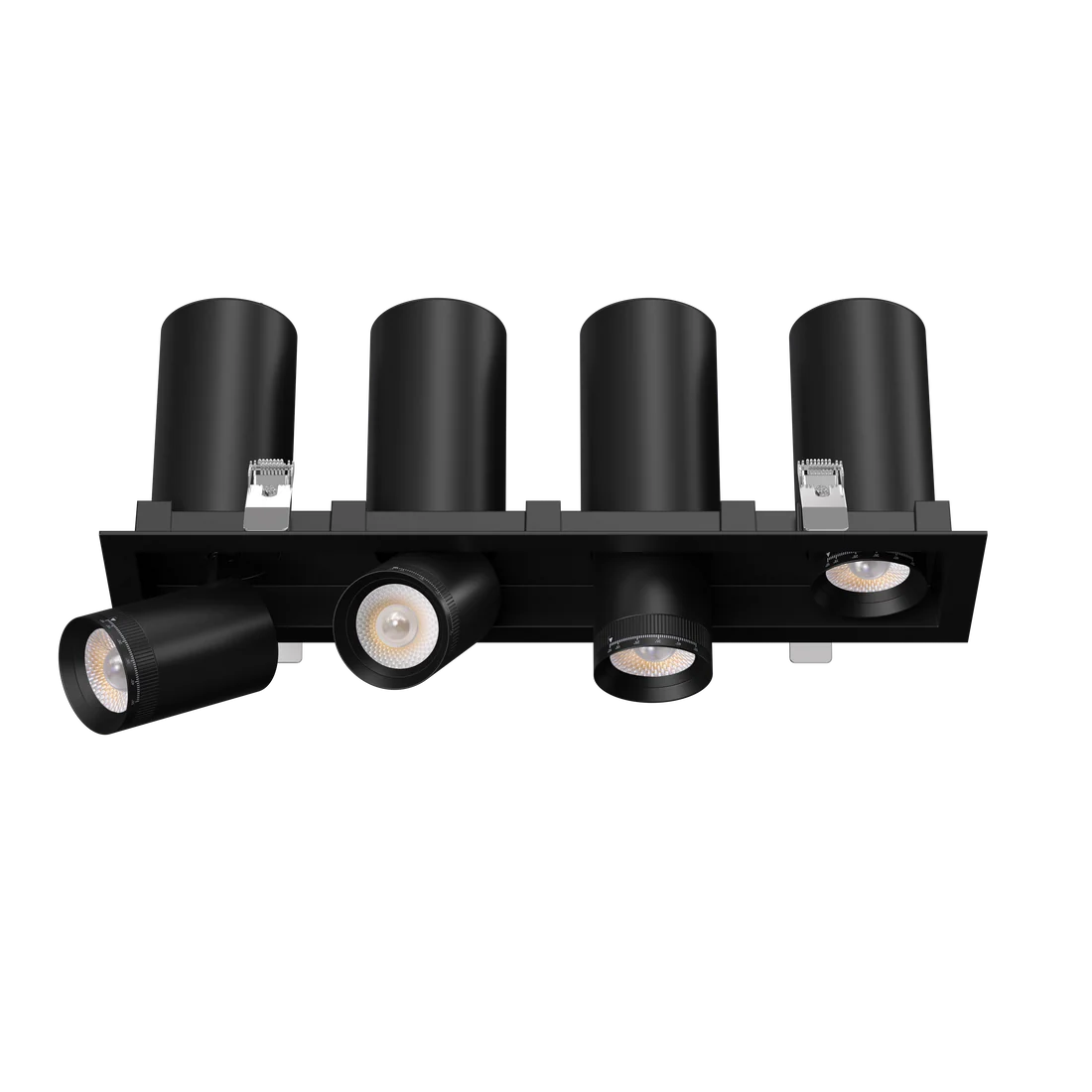

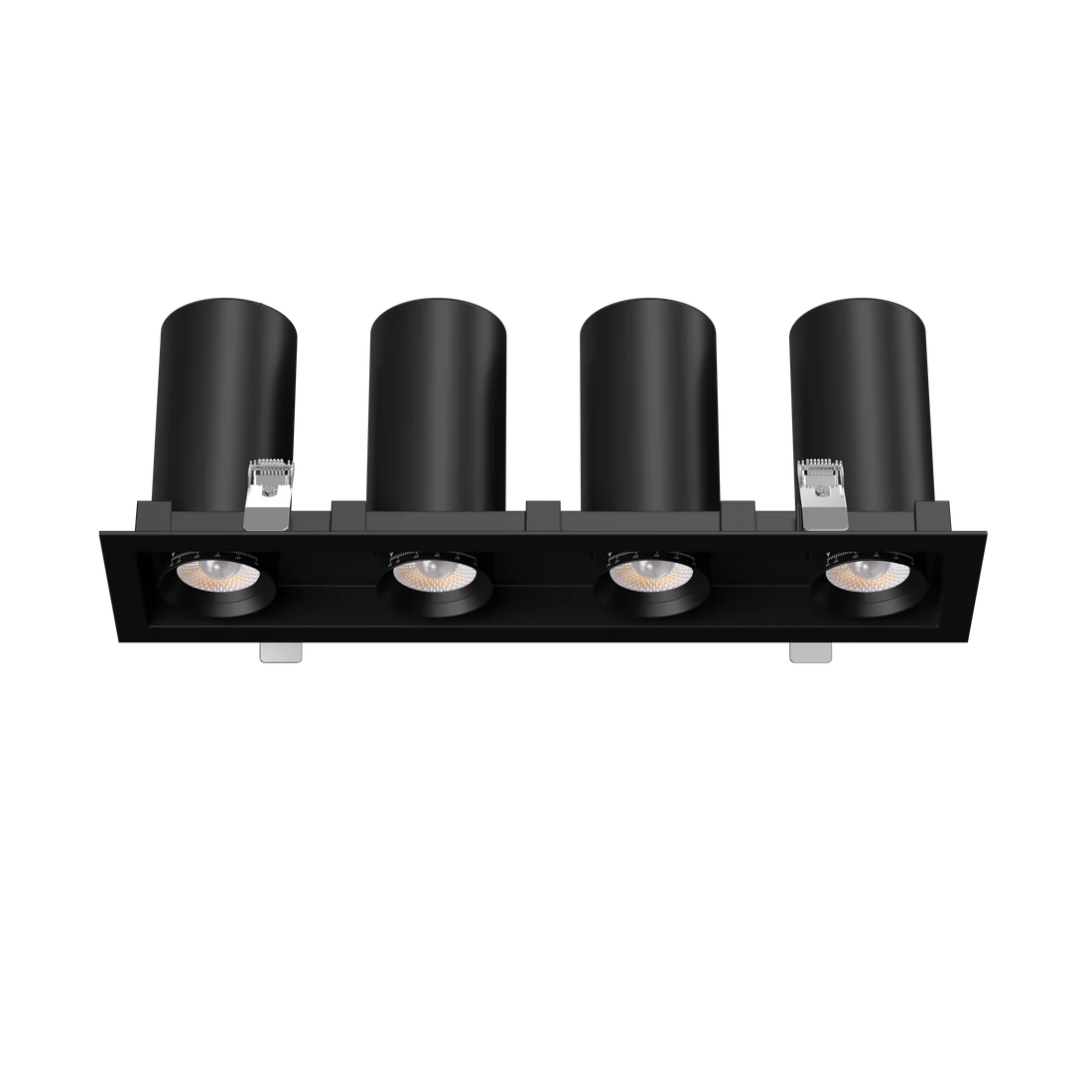

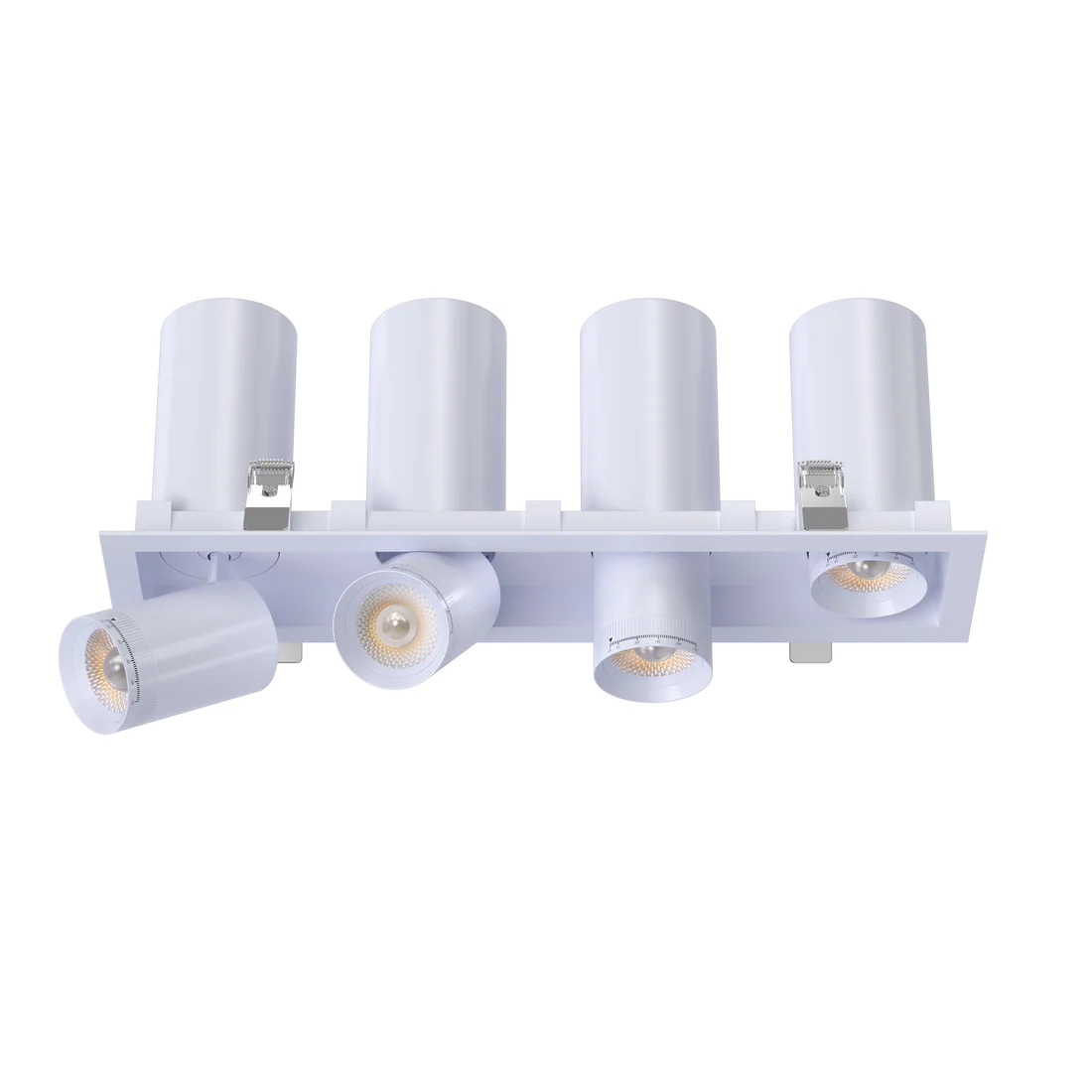

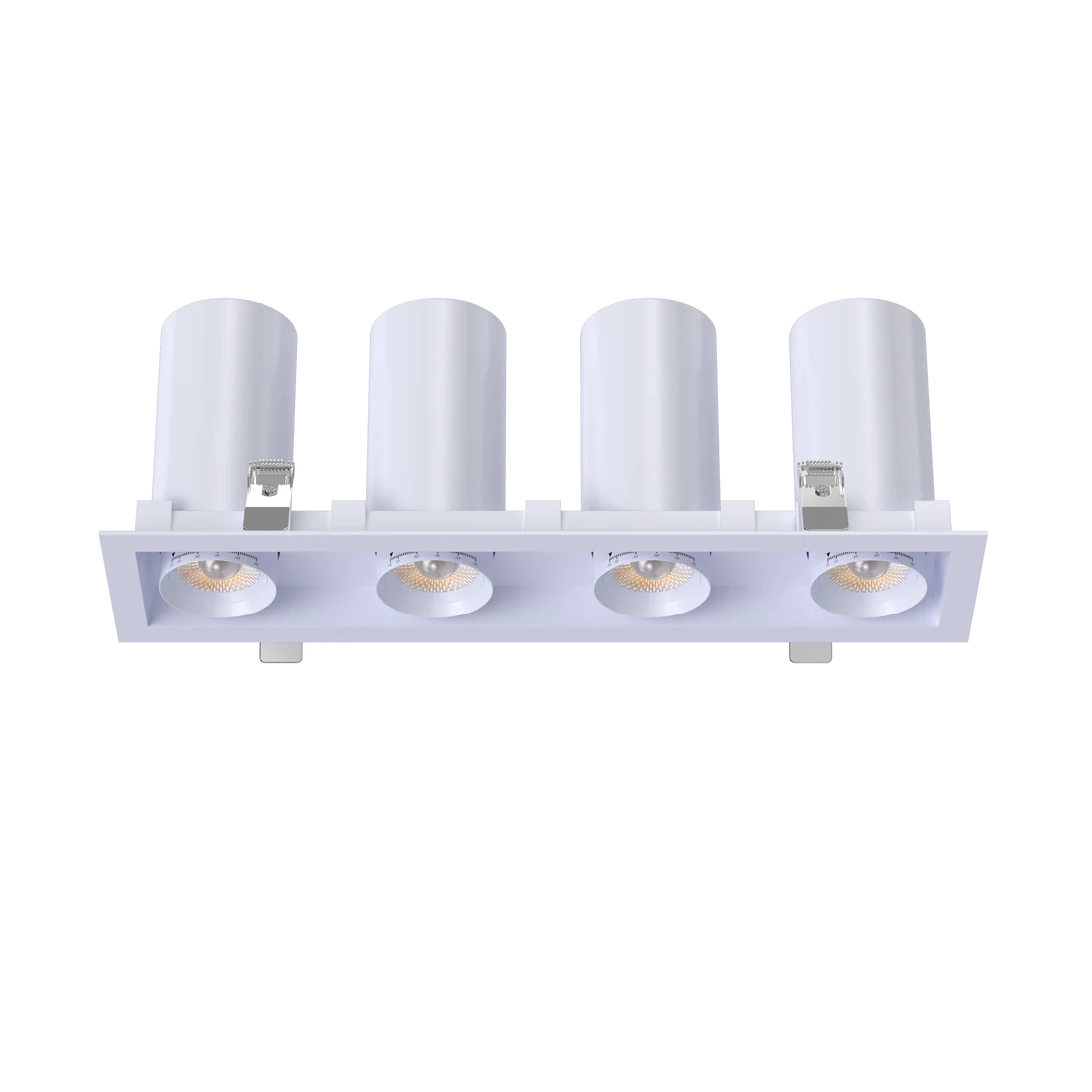

Deliver ultimate multi-directional wall washing, expansive gallery highlight tracks, and bold structural symmetry with the Pulsar 3-Inch Four Head Retractable Multiple Series. Offered in a pristine architectural white (Product Code: G-32504) and a commanding matte black (Product Code: G-32514), this high-output linear fixture features a sleek, multi-light rectangular footprint complete with timeless trimmed styling. Engineered with four separate telescoping scoping assemblies, every single lighting engine can rest completely flush within its linear trim for high-end ambient downlighting or expand fully out of the ceiling plane to transform into an ultra-precise accent spotlight.

The Pulsar quad-head series features an state-of-the-art multi-axis tracking design built for unrestricted spatial focus. Every modular light engine can swing down to a full 90° perpendicular vertical tilt angle while supporting an independent, fluid 360° panning rotation. This unparalleled maneuverability makes it a premier layout option for steep sloped ceiling vaults, complex retail merchandising displays, and large art exhibitions requiring multiple targeting fields from a single structured ceiling cutout. For added optical precision, each independent lens houses a manual variable zoom ring—giving lighting crews or users the power to shift individual beams from a sharp 20° spotlight up to an expansive 55° wide flood with a simple manual twist.

Consistent Performance & Multi-Volt Intelligence:

Drawing a powerful yet efficient combined 48W footprint (12W per modular head), the four light engines yield an impressive total of 3800 lumens of clean, vibrant light (950 lumens per head). Backed by a premier color fidelity score of CRI > 90, it ensures that rich textures, delicate colors, and structural design finishes remain incredibly faithful and natural. The internal universal 120-277V electronic driver manages the load safely at a constant 1100mA output current, pairing smoothly with standard residential Triac or commercial 0-10V dimming infrastructures for complete architectural scene regulation.

Key Features:

• Independent Quad-Scoping Architecture: Each of the four light modules adjusts on its own, allowing seamless transitions between low-glare flat downlighting and extended, high-angle spotlighting.

• Continuous Optical Zoom Customization: Manually focus individual light fields on the fly anywhere from a concentrated 20° beam up to a 55° flood channel.

• 90° Tilt & 360° Rotational Freedom: High-clearance internal mechanical hinges allow full right-angle 90° drop-down extensions matched with endless 360° panning fields across all four modules.

• Uncompromised Safety Ratings: Outfitted with an FT6 Plenum-rated wire wrap and complete Wet Location environmental seals. The fixture carries a true IC Rating, making it fully certified for direct contact with framing insulation without requiring an insulated safety box.

Technical Specification
