2.5 Inch Round Beam Adjustable LED Cylinder | 1K Lm | 120/277V | CCT Selectable | Jupiter Series | Goodlite G-25000/01

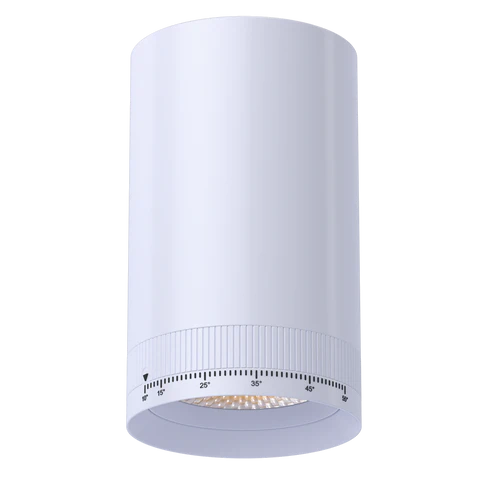

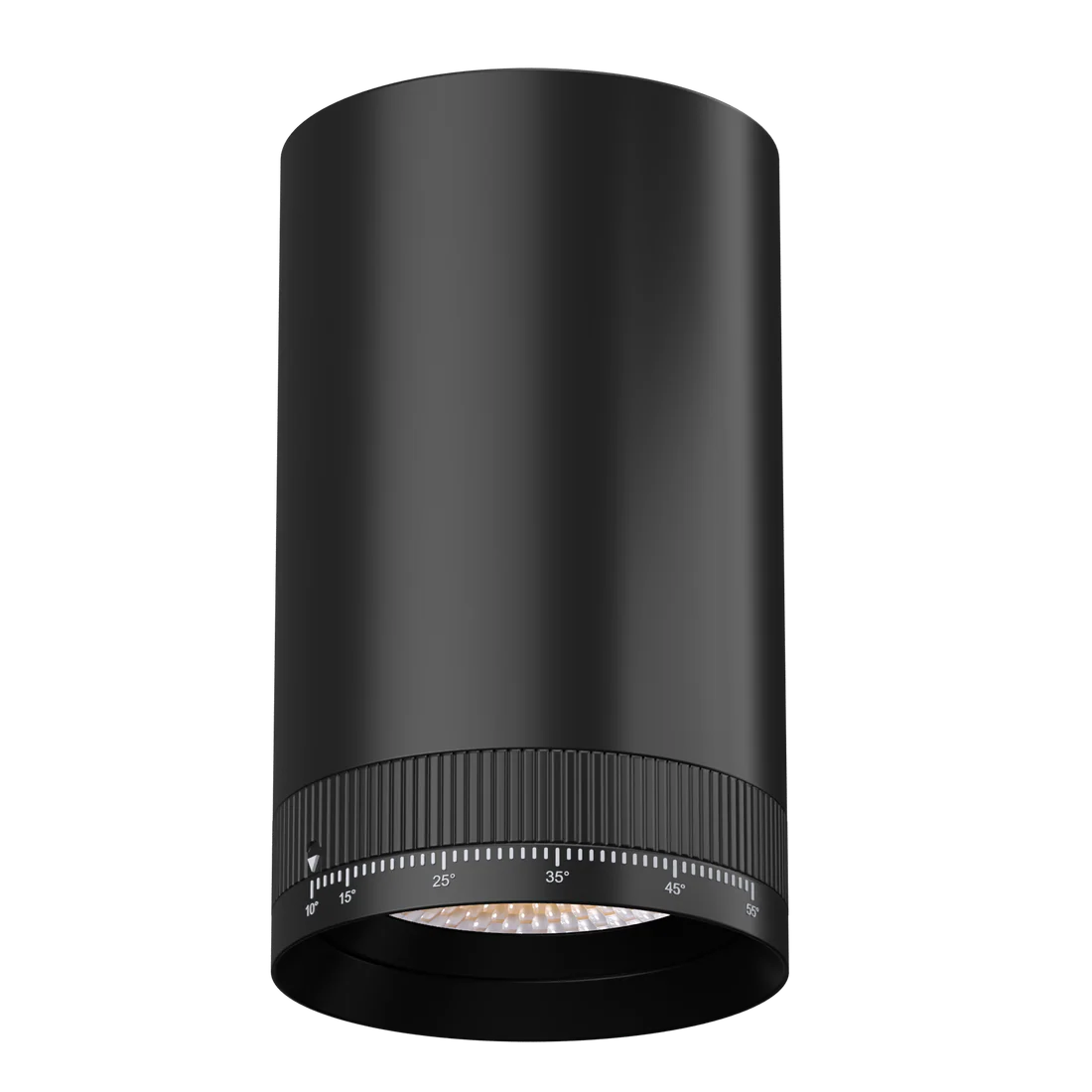

Bring ultimate field-adaptability and architectural refinement to your lighting layouts with the Jupiter 2.5" Round Universal Beam Adjustable Cylinder. Available in premium matte white (Product Code: G-25000 / Ordering Code: CYD/25/12W/ADJ/RD/LED/5CCT/WH) and anti-reflective matte black (Product Code: G-25001 / Ordering Code: CYD/25/12W/ADJ/RD/LED/5CCT/BK), this surface-mounted fixture features a clean, minimal profile designed to complement modern interior and exterior spaces. Its compact structural aluminum housing measures 4.31" in height by 2.56" in width, offering an unobtrusive visual footprint while delivering heavy-duty commercial-grade performance.

The standout engineering feature of the Jupiter series is its integrated continuously variable beam spread optic, adjustable from 20º to 55º. By simply adjusting the internal mechanism, installers can manually tune the light distribution from a sharp, punchy spotlight pattern to a wider, uniform downlight flood, adapting effortlessly to changing ceiling heights or space functions. Paired with an on-board 5-CCT selectable toggle switch, this fixture eliminates color temperature guesswork by letting you select between warm 2700K, cozy 3000K, balanced 3500K, crisp 4100K, and clean 5000K white light settings right on-site. Driven by a low-draw 12-watt LED engine, it throws out a potent 1,000 lumens of light with a premium 90+ CRI rating for excellent color fidelity.

Commercial Grade Dual-Voltage & Wet Location Reliability:

Engineered for ultimate versatility, the Jupiter cylinder operates on a universal 120-277V AC power supply and features standard Triac or 0-10V dual-dimming compatibility for smooth control from 100% down to 5%. It is Wet Location Rated, making it a perfect choice for outdoor canopies, commercial soffits, and high-humidity indoor environments. Additionally, the fixture is IC Rated, ETL listed, and Title 24 compliant, backed by a solid 3-year factory warranty.

Key Features:

• 20º to 55º Toolless Beam Adjustability: Precision internal mechanics allow the beam angle to be continuously tuned in the field to meet exact accent or ambient requirements.

• 5-CCT Field Selectable Switch: Conveniently adjust between five white light profiles (27K to 50K) during installation to align with changing interior finishes.

• 120V to 277V Multi-Volt Driver: Dual-voltage commercial driver handles fluctuating power systems smoothly, supporting standard residential or industrial grids.

• Dual Triac & 0-10V Dimming System: Supports modern architectural 0-10V infrastructure as well as standard forward/reverse phase line-voltage wall dimmers.

• Heavy-Duty Wet Location & IC Rating: Extruded aluminum housing is sealed to withstand direct outdoor moisture and rain while remaining safe for direct insulation contact.

Technical Specification Table

Logistics & Packaging Specifications

• G-25000 UPC Barcode (White): 990379250000

• G-25001 UPC Barcode (Black): 990379250017

• Master Case Pack Quantity: 24 Units per Carton
