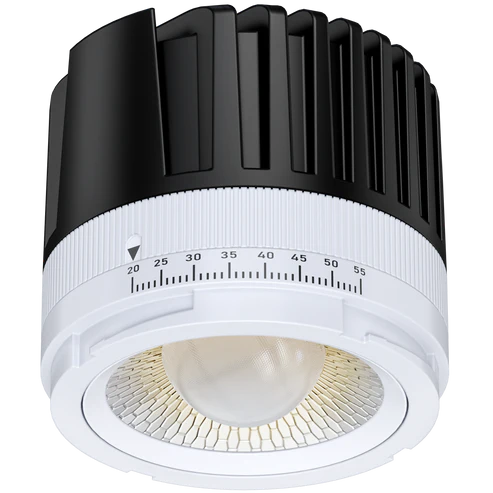

Goodlite Lighting 3.5" Beam Adjustable Module LED Downlight | 1,150Lm | CCT Selectable | Goodlite G-23502

$110.00 / ea
Optional Accessories:
You can change accessory quantities once redirected to cart / quote.

Shipping / Return Policy

Certs:

FCC Certified ETL Certified

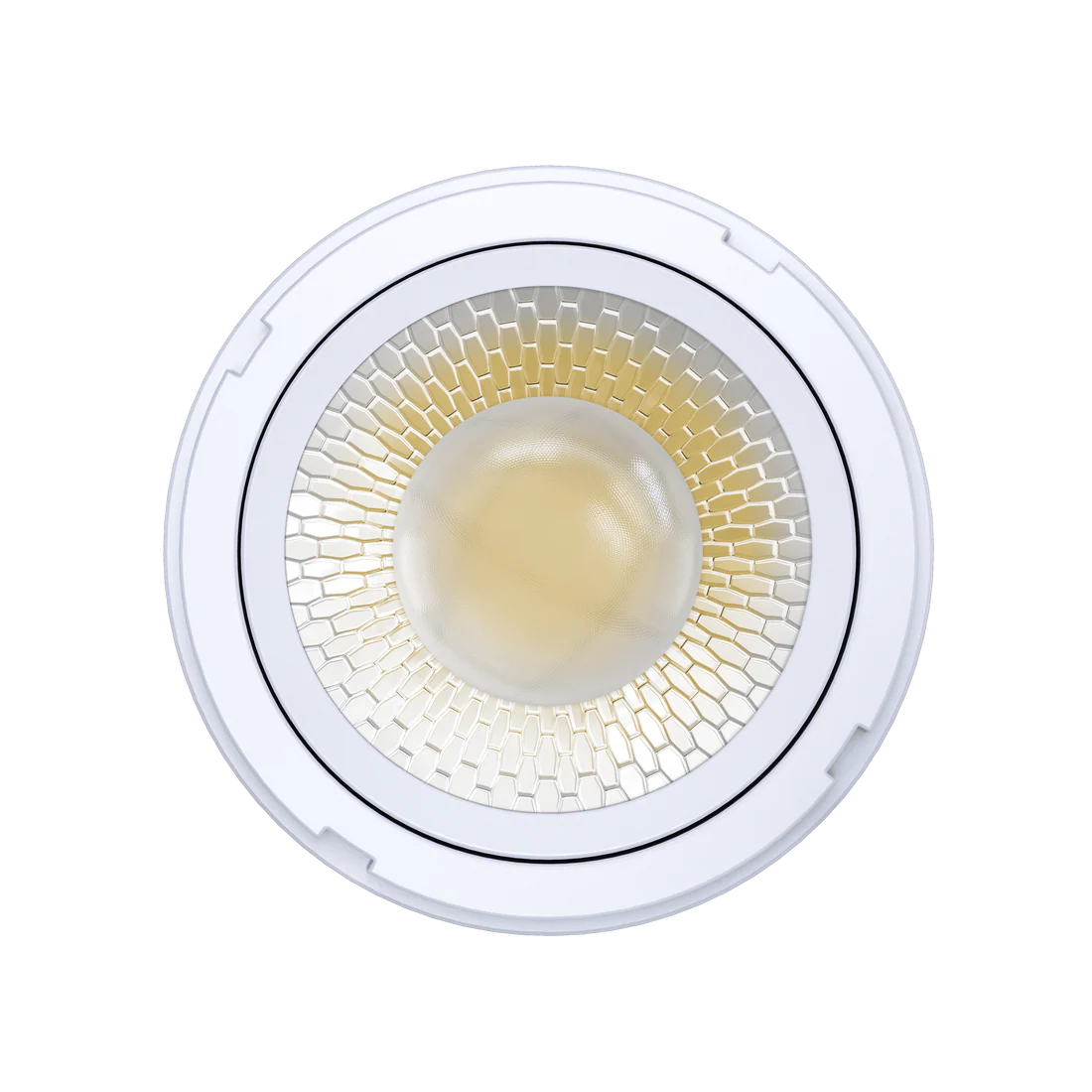

Deliver high-precision, flexible architectural lighting with the Aster 3.5" 12W Beam Adjustable LED Module (Model G-23502, Ordering Code: M3.5/12W/ADJ/LED/5CCT). Designed for modern commercial and residential applications requiring refined optical control, this 3.5-inch LED engine features a continuously adjustable 20° to 55° zoom beam spread. This allows you to effortlessly dial in the beam distribution from a tight spot to a smooth, medium flood without needing extra lenses. Equipped with a clear diffuser lens and universal mounting capability, it is ideal for accent lighting, artwork spot-lighting, and compact recessed downlighting.

Generating 1150 lumens on just 12W of power, this module operates across a multi-voltage 120-277V input range (270mA output) with dual-dimming compatibility (TRIAC and 0-10V dimming down to 5%). It features field-selectable 5-CCT color tuning (2700K, 3000K, 3500K, 4100K, and 5000K) with high color fidelity (CRI >90). Built to rigorous field standards, the unit is IC Rated, Wet Location Rated, FT6 Plenum Rated, California Title 24 Listed, and backed by an ETL certification and a 3-year warranty.

Key Features:

  • Continuous 20°-55° Adjustable Optics: Smoothly transition the beam spread between 20° and 55° for precise optical beam control.

  • 5-CCT Field Selectable: Easily switch between 2700K, 3000K, 3500K, 4100K, and 5000K color temperatures on site.

  • Compact High-Output Engine: Produces 1150 lumens at 12W with high color accuracy (CRI >90).

  • Universal 120-277V Input: Operates on both residential (120V) and commercial (277V) line voltages (270mA output current).

  • Dual Dimming Protocol: Supports standard TRIAC forward-phase and commercial 0-10V dimming protocols (100% to 5%).

  • Robust Safety & Compliance: Features IC rating for direct insulation contact, Wet Location rating, FT6 plenum wiring safety, and California Title 24 compliance.

Technical Specification Table

Technical Specification Product Details (G-23502 Profile)
Product Model / SKU G-23502
Ordering Code M3.5/12W/ADJ/LED/5CCT
Product Line / Series Aster Beam Adjustable LED Module Series
Nominal Module Size 3.50 Inch
Primary Optics & Lens Clear Lens with 20°-55° Zoom Optics
Mounting Style Universal Mounting
Power Consumption 12W
Input Voltage Range 120-277V AC
Output Current 270mA
Luminous Output 1150 Lumens
Color Rendering Index (CRI) CRI >90 (High Color Fidelity)
Beam Spread Angle Adjustable 20° to 55°
Selectable CCT Options 5CCT (2700K / 3000K / 3500K / 4100K / 5000K)
Dimming Protocol / Range Dual TRIAC & 0-10V Dimming (100% - 5%)
Plenum Safety Rating FT6 Rated
Environmental Protection Wet Location Rated
Insulation Contact Rating IC Rated
Regulatory Compliance ETL Listed, California Title 24 Listed
Manufacturer Warranty 3-Year Warranty

Packaging & Logistics Specifications

  • Individual Barcode / UPC: 990379235021

  • Master Case Pack Quantity: 18 Units per Master Pack
